Summary of Contents for Beijer Electronics iX Panel TA70
- Page 1 Panel TA70 Service & Maintenance Manual English MAEN012A, 2010-12...
- Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB reserves the right to change any information without updating this publication. Beijer Electronics AB assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
Calibrating the Touch Screen ........23 Replacing the Complete Front ........24 Replacing the Backlight ......... 25 Available Spare Parts for iX Panel TA70 ......26 8 Service Menu ............27 Service Menu in an Empty Panel ....... 27 Service Menu in a Panel with Project ...... - Page 4 Electronics ............43 13.3 Recycling ............44 13.4 Environmental Impact Report ........44 Beijer Electronics, MAEN012A...
-
Page 5: Safety Precautions
Separate the high voltage, signal and supply cables. • Make sure that the voltage and polarity of the power source is correct before • connecting the product to the power outlet. Peripheral equipment must be appropriate for the application and location. • Beijer Electronics, MAEN012A... -
Page 6: During Use
Dismantling and Scrapping The operator panel or parts thereof shall be recycled according to local • regulations. The following components contain substances that might be hazardous • to health and the environment: lithium battery, electrolytic capacitor and display. Beijer Electronics, MAEN012A... -
Page 7: Introduction

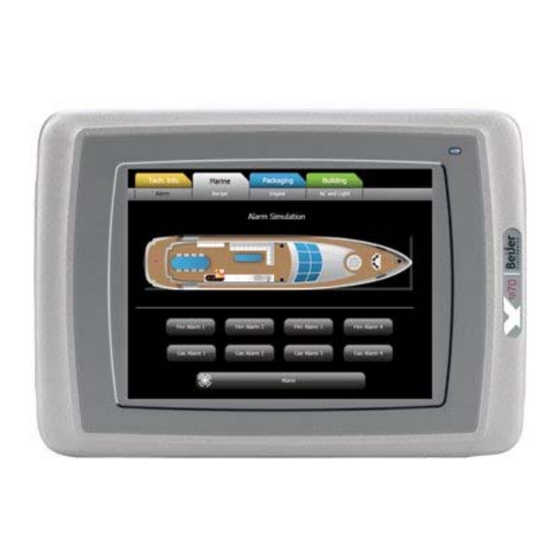

Introduction Introduction This manual describes how to maintain the iX Panel TA70. The functions available in iX Developer depend on which operator panel model is used. iX Panel TA70 The following drawings are available for iX Panel TA70: Outline drawing •... -
Page 8: Maintenance
Dismantling and Scrapping The operator panel, or parts thereof, should be recycled according to local • regulations. The following components contain substances that might be hazardous to • health and the environment: lithium battery, electrolytic capacitor, display. Beijer Electronics, MAEN012A... -
Page 9: Contact And Support
To ensure quick resolution, provide as many details as possible in your report. Include the date and time when the problem occurred, a description of what you were trying to do, the detailed steps you took that led up to the problem, and details about any error messages received. Beijer Electronics, MAEN012A... -
Page 10: Installation
1. Unpack and check the delivery. If damage is found, notify the supplier. Panel cut out 188.5 x 137.5 mm (7.42 x 5.41 inch) Note: Place the operator panel on a stable surface during installation. Dropping it or letting it fall may cause damage. Beijer Electronics, MAEN012A... - Page 11 2. Place the panel cut out where the operator panel is to be situated, draw along the outer sides of the holes and cut according to the markings. 3. Secure the operator panel in position, using all the fastening holes and the provided brackets and screws: 0.5 - 1.0 Nm Beijer Electronics, MAEN012A...
- Page 12 2.5 mm Connect cable C. – Connect cable D. – 5. Carefully remove the laminated film over the operator panel display, to avoid static electricity that could damage the panel. Beijer Electronics, MAEN012A...
-
Page 13: Connections To The Controller
file for the driver in question. 3.2.2 Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Beijer Electronics, MAEN012A... -
Page 14: Technical Data
Technical Data Technical Data Parameter iX Panel TA70 Front panel, W x H x D 219 x 154 x 6 mm Mounting depth 56 mm (156 mm including clearance) Front panel seal IP 66 Rear panel seal IP 20 Keyboard Touch screen: Polyester on glass, 1 million finger touch... -
Page 15: Chemical Resistance
The powder paint shows little or no resistance to the following chemicals at room temperature: Acetic acid, conc. Methyl-ethyl ketone Toluene Acetone Nitric acid 30% Trichlorethylene Ammonia 5% Phenol Xylene Ammonia, conc. Sodium hydroxide 5% 97 octan unleaded petrol Ethyl acetate Sodium hydroxide 30% 98 octan leaded petrol Beijer Electronics, MAEN012A... -
Page 16: Touch Screen And Overlay
Autotex is not resistant to high pressure steam at over 100 °C or the following chemicals: Concentrated mineral acids Benzyl alcohol Concentrated caustic solution Methylene chloride Outdoor Use In common with all polyester based films Autotex F157/F207 is not suitable for use in conditions of long term exposure to direct sunlight. Beijer Electronics, MAEN012A... -
Page 17: Touch Screen Surface
5.2.3 Autoflex EB It is recommended to use the Autoflex EB touch display protection film, that can be ordered from Beijer Electronics. Solvent Resistance Autoflex EB withstands exposure to the same chemicals as Autotex F157 or F207 according to section Autotex F157/207. -
Page 18: Hardware Tests
The manufacturer performs extensive hardware testing before an operator panel is approved. Some tests are performed by external testing companies, such as the Swedish National Testing and Research Institute. All operator panels are submitted to testing before leaving the manufacturer. Beijer Electronics, MAEN012A... -
Page 19: Hardware Replacement
See Available Spare Parts for iX Panel TA70. Mode Switches The iX Panel TA70 has four mode switches (DIP switches) located on the rear side of the operator panel. Warning: The modes below are to be used with caution. -
Page 20: Cables
To release the flex cables from the connector, gently push the two flanges on the cable connector towards the flex cable. Note: The connectors must be unlocked on both sides before removing the cable, otherwise the flex cable may be damaged. Beijer Electronics, MAEN012A... -
Page 21: Replacing The Rear Cover
Hardware Replacement Replacing the Rear Cover The following is needed: A new rear cover, see Available Spare Parts for iX Panel TA70 • A torx T10 screwdriver • Note: Make sure to use adequate ESD protection. Follow the steps below to replace the rear cover: 1. -
Page 22: Replacing The Display/Display Cable
Replacing the Display/Display Cable The following is needed: A new display including plastic frame and display cable, see • Available Spare Parts for iX Panel TA70 A torx T10 screwdriver • Note: Make sure to use adequate ESD protection. Follow the steps below to replace the display/display cable: 1. -
Page 23: Self Test Of The Display
1. Set the MODE switches to the correct positions in order to enter the Service Menu mode (see table in the Mode Switches section). 2. Switch on the power and follow the instructions. 3. Power off the operating panel. 4. Reset all MODE switches to the OFF position. Beijer Electronics, MAEN012A... -
Page 24: Replacing The Complete Front
• Note: Make sure to use adequate ESD protection. Follow the steps below to replace the complete front of the iX Panel TA70: 1. Power off the operator panel. 2. Follow the steps 1-3 and 5 in the Replacing the Display/Display Cable instruc- tions, but in step 3, do not remove the display cable . -
Page 25: Replacing The Backlight
Hardware Replacement Replacing the Backlight If the backlight of the iX Panel TA70 is broken, the entire display must be replaced. To replace the display you will need a new display including plastic frame and dis- play cable, see the Available Spare Parts for iX Panel TA70 section. -
Page 26: Available Spare Parts For Ix Panel Ta70
601009294 FRONT LABEL 601009120 COMPLETE BOX 601009008 TEST PLUG ETHERNET Ethernet RJ45 test connector 601009006 TEST PLUG RS232 RS232 test connector 601009007 TEST PLUG RS422/485 RS422/485 test connector 601009069 TEST PLUG USB H USB Host test connector Beijer Electronics, MAEN012A... -
Page 27: Service Menu
The panel has two built-in Ethernet ports, according to the drawing below. For each port, select to obtain an IP address automatically via DHCP, or specify an IP address for the first Ethernet port. Port 1 Port 2 The port that is currently connected is recognized by a *. Beijer Electronics, MAEN012A... -
Page 28: Date/Time
Pressing Erase Project will completely remove the project and all its components from the panel memory/the memory card. 8.3.4 Touch Calibrate Select Touch Calibrate if the touch screen needs to be calibrated. Follow the instructions on the screen to perform a calibration. Beijer Electronics, MAEN012A... -
Page 29: Hardware Self Test
LED of the RS232 test plug are on. 5. When the self test is finished, power off the operator panel and set all mode switches to the OFF position. If an error occurs during the self test, try to fault trace. See Fault Tracing. Beijer Electronics, MAEN012A... -
Page 30: Self Test Items
SD Card SD card must be connected Burn In Core Temperature (loop with Board Temperature 6 repeating Ethernet 1 RJ45 plug tests) Ethernet 2 RJ45 plug RS422 25 pin DSUB plug (male) RS232 9 pin DSUB plug (female) Beijer Electronics, MAEN012A... -
Page 31: Additional Installation Tips
Multi-wire conductors are better than single wire conductors with the same area. A braided conductor wire with the same area is even better. The best is a short, thick grounding braid. Beijer Electronics, MAEN012A... -
Page 32: Ethernet Connection In The Panel
A more elegant method is to expand the shielded Ethernet cabling with a piece of unshielded Ethernet cable, see 4 in drawing above. You can ground the shield via an external 0.1 uF/250 V plastic capacitor, see 5 in drawing above. This will connect the HF transients to the ground. Beijer Electronics, MAEN012A... -
Page 33: To Achieve Better Emc Protection
Additional Installation Tips 10.3 To Achieve Better EMC Protection Initially, use the original cabling from Beijer Electronics primarily. • Use shielded cables for RS232 communication. • Use twisted pair and shielded cabling for RS422 and RS485. • Use the cabling intended for the bus type; Ethernet, Profibus, CC-Link, •... -
Page 34: Ambient Temperature
The loss effect drops from e.g. 25 W to only 5 W. The operator panel’s loss effect = supply voltage x current. Virtually no power goes to external users and no loss effects due to inputs. Beijer Electronics, MAEN012A... -
Page 35: Safety
Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This • is not unusual since there is high static electricity. Beijer Electronics, MAEN012A... -
Page 36: Galvanic Isolation
24 V feed, disturbances and grounding currents from the 0 V on the 24 V side will disrupt communication. Using this type of unit solves one problem but creates a larger problem! A substandard installation may work now, but problems may arise when other devices are connected. Beijer Electronics, MAEN012A... -
Page 37: Cable And Bus Termination Rs485
Set jumper pins 6-19. Use CAB8. It offers the option of bus termination with pull-up/-down. It • is also easy to connect the bus cable via the screw terminal block. See 4 in drawing above. Beijer Electronics, MAEN012A... -
Page 38: Fault Tracing
3. Check that the correct controller driver is used. 4. Check the communication ports on the CPU board. The iX Panel TA70 is working but the backlight is off 1. Check the backlight dimming. 2. Check that the backlight is connected to the power card. - Page 39 2. Make sure the display cable is correctly fitted. 3. Make sure the display cable is not folded or damaged in any way. Replace the display cable according to the Replacing the Display/Display Cable section. Beijer Electronics, MAEN012A...
-
Page 40: Software
Remote Access Viewer (freeware) together with the built-in VNC server (Remote Access function) in the iX Panels. System Program • The iX Panel TA70 is delivered with an image (operating system) pre-stored in the operator panel memory. Beijer Electronics, MAEN012A... -
Page 41: Update Software
The Image Loader software is only intended for customers and partners that have an operator panel. No other distribution is allowed. Note: When upgrading an operator panel, it is important to ensure that power is not interrupted during the upgrade. Beijer Electronics, MAEN012A... - Page 42 2. Double-click on the executable Image Loader file. 3. Enter the IP address of the operator panel. 4. Click Update, and follow the instructions. The files are transferred to the operator panel. The panel will reboot automatically when the transfer is finished. Beijer Electronics, MAEN012A...
-
Page 43: Environmental Aspects
There is a separate circuit board for the display. The liquid crystals in the display are cyclohexane compounds. The fluorescent tube contains mercury and lead solder. Batteries The operator panel contains a button cell lithium battery. The battery is not classified as environmentally hazardous by the Swedish Battery Ordinance (1997:645). Beijer Electronics, MAEN012A... -
Page 44: Recycling
fluorescent tube service life. Supply the operator panel with 24 V DC. If the input voltage is lower, the loss effect increases. Ensure that the operator panel, battery, and packaging are recycled in an environmentally responsible manner. Beijer Electronics, MAEN012A... - Page 45 Head office Beijer Electronics AB Box 426 201 24 Malmö, Sweden www.beijerelectronics.com / +46 40 358600...
