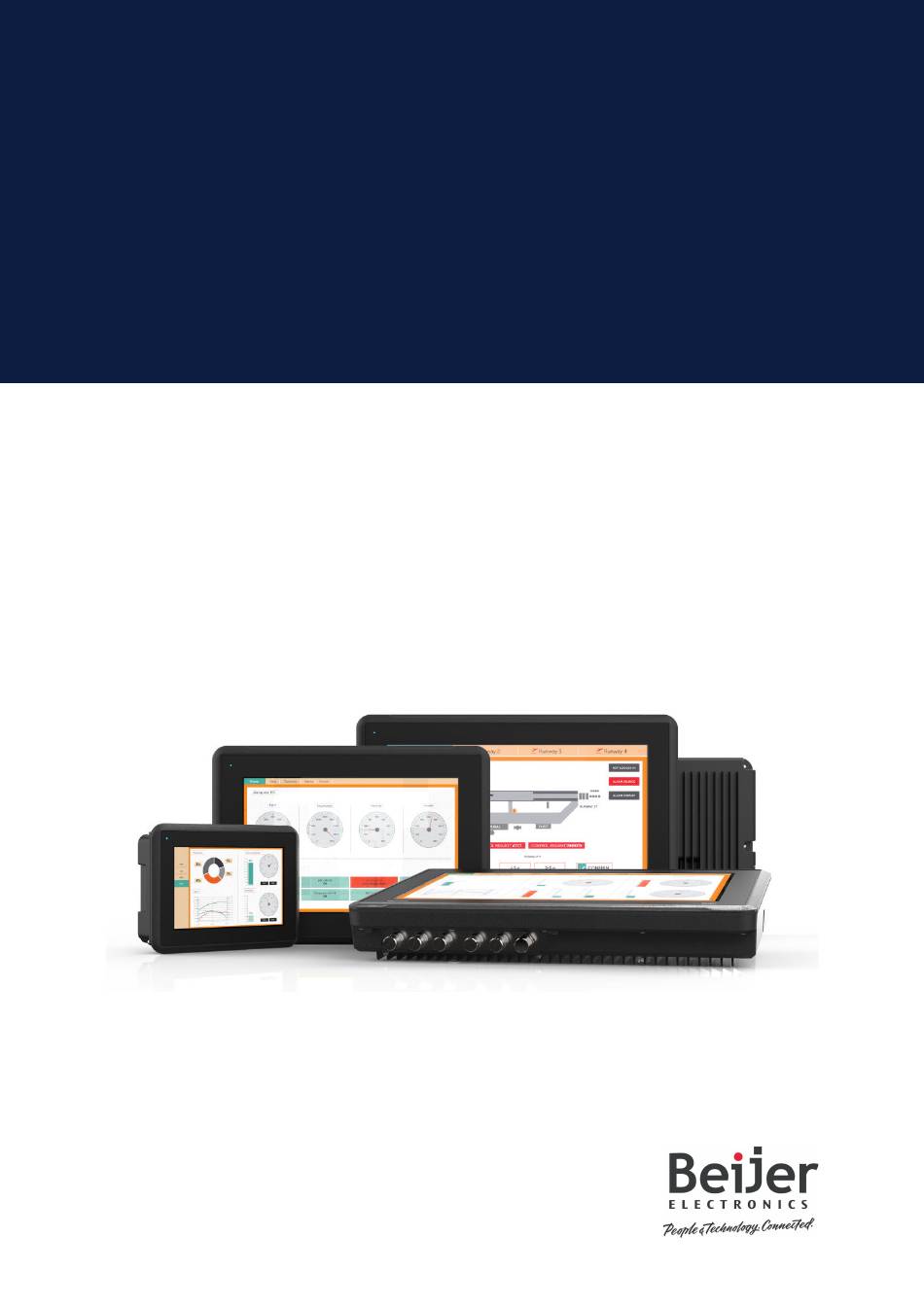

- Page 1 Image Manual X2 web MAEN341 2023-02...
- Page 2 The information in this document is subject to change without notice and is provided as availa- ble at the time of printing. Beijer Electronics AB reserves the right to change any information without updating this publication. Beijer Electronics AB assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
5. Image Update ..................... 14 5.1. Updating the Panel Image Using USB/SD Card ..........14 6. Certificate Utility and Allowlist ................ 15 6.1. Adding Certificate From File ..............15 6.2. Add Current URL to the Allow List ............15 Beijer Electronics, MAEN341 2023-02... -
Page 5: Introduction
To obtain the source code under GPL, LGPL and other open source licenses that are contained in this product, please contact opensource@beijerelectronics.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices may be disclosed upon request. Beijer Electronics, MAEN341 2023-02... -
Page 6: Boot
The X2 web is pre-configured from factory with a URL to a HTML5 demo page. 2.1. First Time Boot When powering up the X2 web device, first time from delivery, a dialog is shown in order to change the default Configtool user password, or PIN. The procedure is as follows: At Login as ConfigTool User, input the factory default PIN (The default password from factory is... -
Page 7: Navigation
To reach the right-click context menu, tap the touch surface and keep it pressed for at least 1.5 seconds. A drop-down menu will show with navigation commands. The following commands are currently implemented: • Back • Forward • Reload The right-click context menu can be disabled or enabled from the Settings. Beijer Electronics, MAEN341 2023-02... -
Page 8: Settings
Settings 4. Settings Normally, the X2 web device will browse the default URL on startup. To access the device settings: 1. Touch the upper, approximately one centimeter area, of the display, and hold it for at least 1.5 seconds. 2. After holding the touch for 1.5 seconds, a button will appear in the upper central part of the screen. -
Page 9: Change Passwords
4.2. Change Settings From Terminal The X2 web has some additional settings, some of which are only available to be edited from a terminal. The built-in editor in X2 web is vi. A basic manual for the various vi commands can be found here: https://cs.stanford.edu/people/miles/vi.html... - Page 10 Controls the screen saver timeout. If 0, the saver_timeout screen saver is disabled. update_dirs String, comma The paths control which mounted interfaces are separated allowed for updating the firmware. drawer_open_ string Controls swiping direction for opening the Config direction [Down, Right, Left]. 2023-02 Beijer Electronics, MAEN341...
-
Page 11: Network
• LAN A / LAN B – One config per port (separate tabs in the top of the UI) • Method – DHCP or Static. • IP • Net mask • Gateway • DNS 1 • DNS 2 • Save – Saves the new settings. The default setting is DHCP. Beijer Electronics, MAEN341 2023-02... -
Page 12: Diagnostics
Utility menu for Docker, like pruning unused containers etc. Touch mouse Emulate touch as mouse input. When enabled, this feature changes the emulation behavior of the touch and only allows for tap/click, i.e., no scrolling or gestures. Logout Logout or change current user. 2023-02 Beijer Electronics, MAEN341... -
Page 13: Network
Displays the following list of parameters for the panel: • CPU load • System uptime • Memory total • Memory usage 4.3.5. Licenses Shows a full table of all the licenses used in the software in terms of: • Package • Version • License Beijer Electronics, MAEN341 2023-02... -
Page 14: Image Update
Detach the USB flash drive or SD card and reboot the device. Check the new version number in the Settings. NOTE The X2 web allows updating either from USB, SD card or via file transfer and manual install, using the command `rauc install system-beijer.raucb`. 2023-02... -
Page 15: Certificate Utility And Allowlist
• The USB flash drive or SD card contains a certificate folder with *.crt files. Attach the USB flash drive or SD card to the X2 web device and go to the Certificate Util/Allowlist dialog. All certicates found on the drive will be listed in the upper list. Select which certificate to be added, followed by clicking on the Add button.
