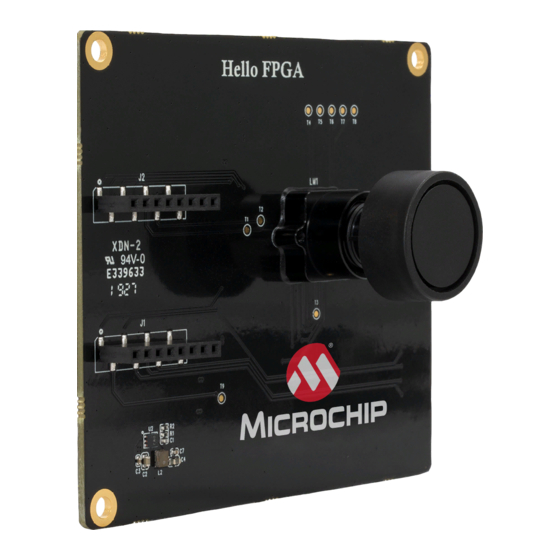

- Page 1 Hello FPGA Quickstart Guide Kit Contents Quantity Description Hello FPGA Board with SmartFusion 2 M2S010 VF256 ® Camera Sensor Board LCD Board USB 2.0 A to Mini-B cable Hardware Connectivity...
- Page 2 20 Pin Expansion PICkit Header Header SmartFusion2 FPGA PIC32MX795F512L USB 2.0 20 Pin Expansion Header Arduino Compatible Interface Prerequisite Before you start, download and install the Hello FPGA GUI Application from the resources section of the Hello FPGA web page.
- Page 3 Hello FPGA Kit Quickstart Guide Demo Setup and Instructions Connect the USB cable from the host PC to USB 2.0 port of the Hello FPGA board. See Microchip Logo on the display followed by the Hello FPGA board image. Programming the FPGA 1.
- Page 4 Hello FPGA Kit Quickstart Guide Running a Digital Signal Processing Application After programming with Demo1_FIR_FILTER_Vx.x.dat file, follow these steps: 1. Go to the FPGA Demo tab > Input Parameters tab. 2. In the Filter Generation pane, select Filter Type, Filter Window, enter...
- Page 5 Hello FPGA Kit Quickstart Guide 5. The filtered output from SmartFusion2 FPGA as per the filter configuration can be observed on the Filter Output tab. 6. In the Text Viewer tab, you can see the numerical values of the graphs plotted in the Filter Input and Filter Output tabs.
- Page 6 Hello FPGA Kit Quickstart Guide 7. Click Autosweep, the GUI automatically sweeps one of the input signal frequencies (Sweep) through a range of values and sends to the FPGA to perform filter operation . Filtered output from FPGA is displayed on the right .
- Page 7 Hello FPGA Kit Quickstart Guide Running an AI Digit Recognition Application After programming with Demo3_ HF10_DIGIT_CNN_FF_Vxx.dat file, follow these steps: 1. Go to the FPGA Demo tab. The FPGA captures the video from camera and runs Convolution Neural Network (CNN) to recognize the digit in the video stream.
-
Page 8: Serial Terminal
