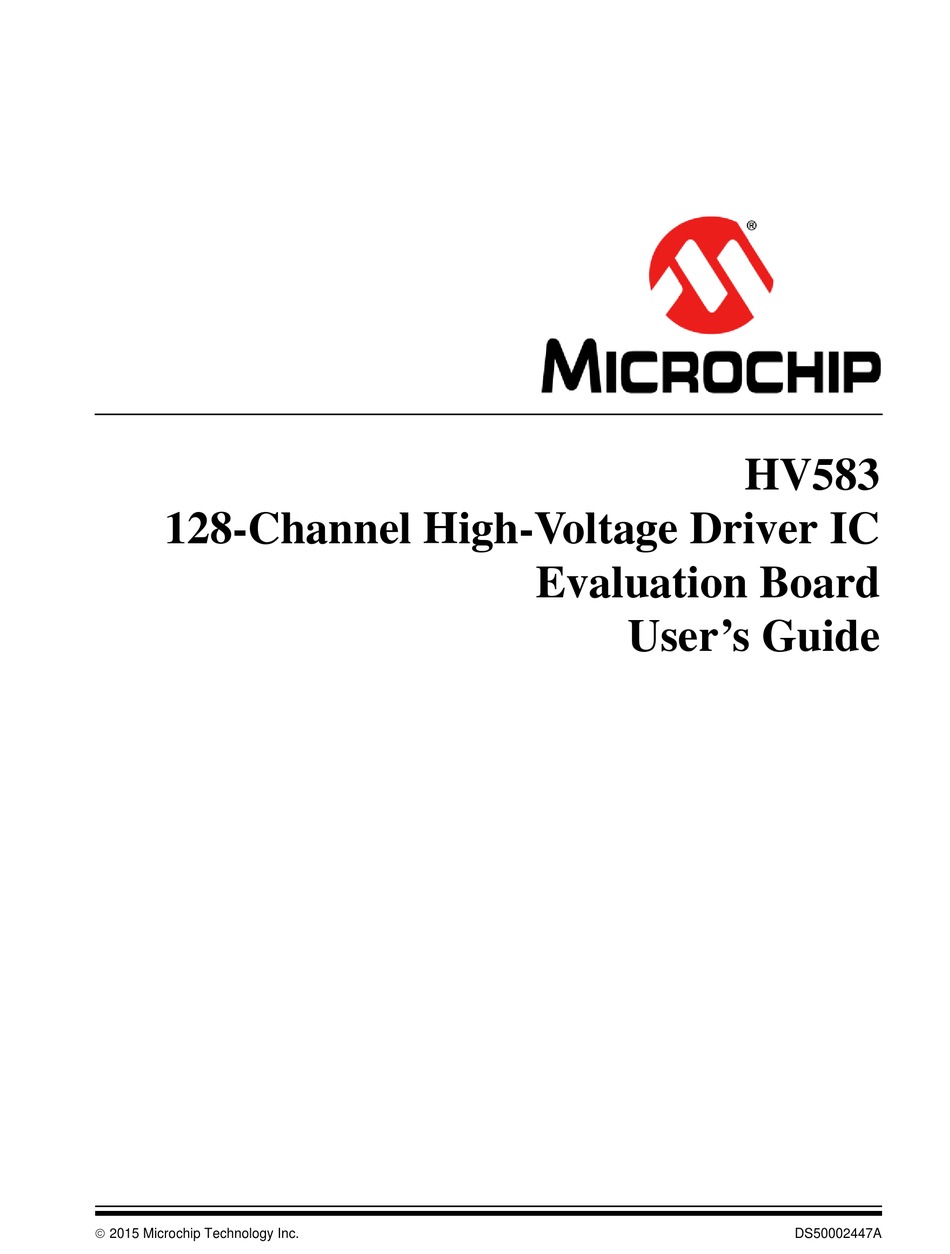

- Page 1 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide 2015 Microchip Technology Inc. DS50002447A...
- Page 2 ViewSpan, WiperLock, Wireless DNA, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries.
- Page 3 Object of Declaration: HV583 128-Channel High-Voltage Driver IC Evaluation Board 2015 Microchip Technology Inc. DS50002447A-page 3...
- Page 4 NOTES: 2015 Microchip Technology Inc. DS50002447A-page 4...
-
Page 5: Table Of Contents
1.1 Introduction ....................11 1.2 HV583 Device Overview ................11 1.3 HV583 Evaluation Board Overview .............. 11 1.4 HV583 Evaluation Board Kit Contents ............13 Chapter 2. Installation and Operation 2.1 Getting Started ..................... 15 2.2 Setup Procedure ..................15 2.3 Using the Evaluation Board with a Generic Logic Signal... - Page 6 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide NOTES: 2015 Microchip Technology Inc. DS50002447A-page 6...
-
Page 7: Preface
Customer Support • Document Revision History DOCUMENT LAYOUT This document describes how to use the HV583 128-Channel High-Voltage Driver IC Evaluation Board as a development tool. The manual layout is as follows: • Chapter 1. “Product Overview” – Important information about the HV583 128-Channel High-Voltage Driver IC Evaluation Board. -
Page 8: Conventions Used In This Guide
HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide CONVENTIONS USED IN THIS GUIDE This manual uses the following documentation conventions: DOCUMENTATION CONVENTIONS Description Represents Examples Arial font: ® Italic characters Referenced books MPLAB IDE User’s Guide Emphasized text ...is the only compiler... -
Page 9: Recommended Reading
Preface RECOMMENDED READING This user’s guide describes how to use the HV583 128-Channel High-Voltage Driver IC Evaluation Board. Other useful documents are listed below. The following Microchip documents are available and recommended as supplemental reference resources. • HV583 Data Sheet – “128-Channel Serial to Parallel Converter with Push-Pull Outputs”... -
Page 10: Customer Support
HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide CUSTOMER SUPPORT Users of Microchip products can receive assistance through several channels: • Distributor or Representative • Local Sales Office • Field Application Engineer (FAE) • Technical Support Customers should contact their distributor, representative or field application engineer (FAE) for support. -
Page 11: Chapter 1. Product Overview
HV583 Evaluation Board Kit Contents HV583 DEVICE OVERVIEW The HV583 is a unipolar 128-channel, low-voltage serial to high-voltage parallel converter with push-pull outputs, dedicated to printer driver and plasma display applications. The device has been designed for applications that require high channel count and high output voltage swing (0-80V) with current sinking and sourcing capabilities of 30 mA. - Page 12 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide The HV583 contains four parallel 32-bit Shift registers. Each 32-bit Shift register fea- tures two ports that can be set as either inputs or outputs by controlling the DIR pin, as shown in the following list: •...
-
Page 13: Hv583 Evaluation Board Kit Contents
Product Overview HV583 EVALUATION BOARD KIT CONTENTS The HV583 128-Channel High-Voltage Driver IC Evaluation Board Kit includes: • HV583 128-Channel High-Voltage Driver IC Evaluation Board (ADM00677) • Important Information Sheet FIGURE 1-2: HV583 128-Channel High-Voltage Driver IC Evaluation Board –... - Page 14 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide NOTES: 2015 Microchip Technology Inc. DS50002447A-page 14...
-
Page 15: Chapter 2. Installation And Operation
128-CHANNEL HIGH-VOLTAGE DRIVER IC EVALUATION BOARD USER’S GUIDE Chapter 2. Installation and Operation GETTING STARTED The HV583 128-Channel High-Voltage Driver IC Evaluation Board is fully assembled and tested. 2.1.1 Tools Required for Operation • A low DC power supply for V (and VDD_PIC) that can produce 5V •... - Page 16 After following the power-up sequence and applying the voltage settings correctly, the evaluation board is ready to operate. The HV583 128-Channel High-Voltage Driver IC Evaluation Board can be driven by a generic signal pattern generator or by the suggested PIC32 Starter Kit (DM320001).
-
Page 17: Using The Evaluation Board With A Generic Logic Signal Pattern Generator
Header Connector FIGURE 2-2: J5 Pin Header Connector. The user must ensure the minimum DC and AC electrical parameters are achieved by the signal pattern generator. For more information, refer to the HV583 data sheet (DS20005461). 2.3.2 Operating the Evaluation Board When operating the evaluation board with a generic logic signal pattern generator, the VDD_PIC pin should not be powered on. - Page 18 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide Figure 2-3 presents the logic diagram of a sample data transmission for testing and understanding the functionality of the HV583. Data Transmission = 5 ns (MIN) = 5 ns (MIN) D2B, D3B, D4B...
-
Page 19: Using The Evaluation Board With The Pic32 Starter Kit (Dm320001)
Installation and Operation USING THE EVALUATION BOARD WITH THE PIC32 STARTER KIT (DM320001) 2.4.1 Introduction The HV583 128-Channel High-Voltage Driver IC Evaluation Board can be operated by the Microchip PIC32 Starter Kit (DM320001) via the FX10A-120S/12-SV(71) connector, J2 (see Figure 2-4). - Page 20 The source code for driving the HV583 128-Channel High-Voltage Driver IC Evaluation Board, PIC32_HV583.x, is available for download on the Microchip web site. The objective of the code is to provide a starting platform for utilizing the HV583 evaluation board.
- Page 21 Figure 2-6 Section 2.4.6 “Modifying the Control Signals and Data in the Code”. FIGURE 2-6: HV583 128-Channel High-Voltage Driver IC Evaluation Board with PIC32 Starter Kit (DM320001) Connected on J2 – Top View. 2.4.5 Programming the PIC32 Starter Kit This section assumes that the MPLAB X IDE software and the MPLAB XC32 compiler are installed on the user’s system, and the PIC32 Starter Kit is connected to the PC via...
- Page 22 Input Control Signals: LE, OE, DIR, RST, OH and OL. To change the data to be sent to the Input registers of the HV583, scroll to the bottom of the file, locate the section, DATA TO SEND TO REGISTERS, and change the values...
- Page 23 2-7) located under the Source Files folder. NOTICE By default, the code provided sends data into the DnB Input registers of the HV583. WARNING The PIC32 Starter Kit (DM320001) cannot be used to read data back from the HV583 Evaluation Board because of the difference in the logic voltage level: 3.3V (PIC32) vs.
- Page 24 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide NOTES: 2015 Microchip Technology Inc. DS50002447A-page 24...
-
Page 25: Appendix A. Schematic And Layouts
HV583 128-CHANNEL HIGH-VOLTAGE DRIVER IC EVALUATION BOARD USER’S GUIDE Appendix A. Schematic and Layouts INTRODUCTION This appendix contains the following layouts and schematic for the HV583 128-Channel High-Voltage Driver IC Evaluation Board (ADM00677): • Evaluation Board – Schematic • Evaluation Board – Top Silk •... -
Page 26: Evaluation Board - Schematic
EVALUATION BOARD – SCHEMATIC HV583... -
Page 27: Evaluation Board - Top Silk
Schematic and Layouts EVALUATION BOARD – TOP SILK EVALUATION BOARD – TOP COPPER AND SILK 2015 Microchip Technology Inc. DS50002447A-page 27... -
Page 28: Evaluation Board - Top Copper
HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide EVALUATION BOARD – TOP COPPER EVALUATION BOARD – GROUND PLANE 2015 Microchip Technology Inc. DS50002447A-page 28... -
Page 29: Evaluation Board - Mid Layer 1
Schematic and Layouts EVALUATION BOARD – MID LAYER 1 EVALUATION BOARD – MID LAYER 2 2015 Microchip Technology Inc. DS50002447A-page 29... -
Page 30: Evaluation Board - Power Plane
HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide EVALUATION BOARD – POWER PLANE A.10 EVALUATION BOARD – BOTTOM COPPER 2015 Microchip Technology Inc. DS50002447A-page 30... -
Page 31: A.11 Evaluation Board - Bottom Copper And Silk
Schematic and Layouts A.11 EVALUATION BOARD – BOTTOM COPPER AND SILK A.12 EVALUATION BOARD – BOTTOM SILK 2015 Microchip Technology Inc. DS50002447A-page 31... - Page 32 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide NOTES: 2015 Microchip Technology Inc. DS50002447A-page 32...
-
Page 33: Appendix B. Bill Of Materials (Bom)
Low-voltage Serial to Inc. High-Voltage Parallel Converter with Push-Pull Outputs Note: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components. 2015 Microchip Technology Inc. DS50002447A-page 33... - Page 34 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide NOTES: 2015 Microchip Technology Inc. DS50002447A-page 34...
-
Page 35: Appendix C. Hv583 Typical Waveforms
HV583 128-CHANNEL HIGH-VOLTAGE DRIVER IC EVALUATION BOARD USER’S GUIDE Appendix C. HV583 Typical Waveforms INTRODUCTION Waveforms presented in this section correspond to two consecutive data transmissions: Transmission 1 and Transmission 2. No load is connected to the output channels. C.1.1... - Page 36 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide Time = 800 ns/Div 5V/Div 5V/Div 5V/Div 40V/Div FIGURE C-2: Transmission 1: HV 124 Displayed Instead of OE. Time = 100 ns/Div 5V/Div 20V/Div FIGURE C-3: Transmission 1: Zoom Version, LE and HV 124.
- Page 37 The control signals not shown in the waveforms have the states listed in Table C-2: TABLE C-2: TRANSMISSION 2: CONTROL SIGNAL STATES Signal State High High Time = 800 ns/Div 5V/Div 5V/Div 5V/Div 5V/Div FIGURE C-4: Transmission 2. 2015 Microchip Technology Inc. DS50002447A-page 37...
- Page 38 HV583 128-Channel High-Voltage Driver IC Evaluation Board User’s Guide Time = 800 ns/Div 5V/Div 5V/Div 5V/Div 40V/Div FIGURE C-5: Transmission 2: HV 124 Displayed Instead of OE. Time = 100 ns/Div 5V/Div 20V/Div FIGURE C-6: Transmission 2: Zoom Version, LE and HV 124.
- Page 39 HV583 Typical Waveforms NOTES: 2015 Microchip Technology Inc. DS50002447A-page 39...
-
Page 40: Worldwide Sales And Service
Tel: 886-2-2508-8600 China - Xian Tel: 631-435-6000 Tel: 86-29-8833-7252 Fax: 886-2-2508-0102 San Jose, CA Fax: 86-29-8833-7256 Thailand - Bangkok Tel: 408-735-9110 Tel: 66-2-694-1351 Canada - Toronto Fax: 66-2-694-1350 Tel: 905-673-0699 Fax: 905-673-6509 07/14/15 2015 Microchip Technology Inc. DS50002447A-page 40...
