Summary of Contents for Festo VMPAL-EPL-AP

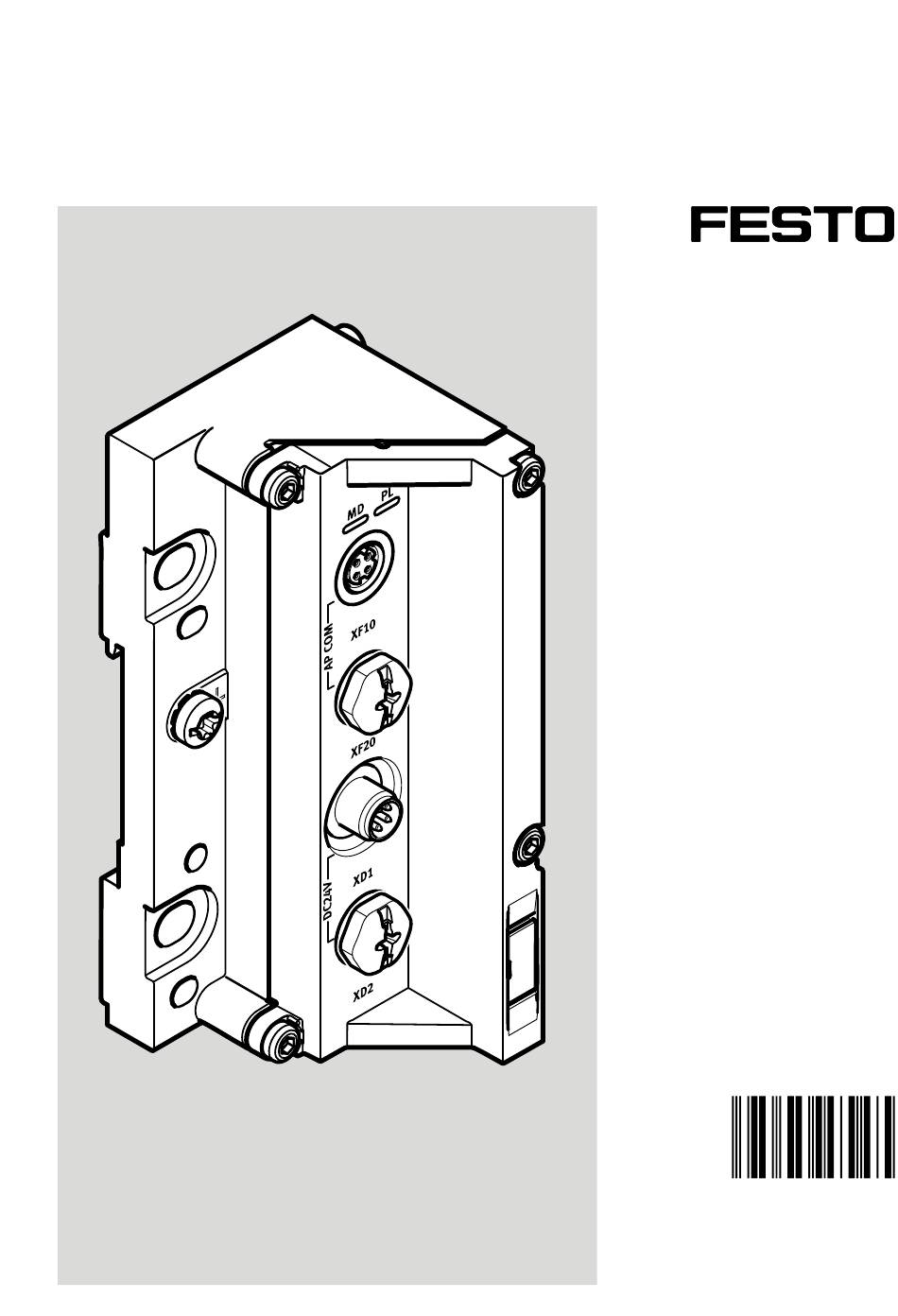

- Page 1 VMPAL-EPL-AP Electrical interface Instructions | Operat- 8099787 8099787 2019-08 [8099789]...
- Page 2 Translation of the original instructions Festo — VMPAL-EPL-AP — 2019-08...
-
Page 3: Table Of Contents
Function........................5 Configuration........................ 6 5.2.1 Product design......................6 5.2.2 Connecting elements....................6 Assembly........................7 Installation........................7 Commissioning......................7 Parameterisation......................8 Diagnostics and fault clearance.................. 9 10.1 Diagnostic messages....................9 10.2 LED displays......................... 11 Disposal........................12 Technical data......................13 Festo — VMPAL-EPL-AP — 2019-08... -
Page 4: About This Document
Product Version VMPAL-EPL-AP Valve terminal connection VMPAL-EPL-AP revision 1 or later Tab. 2 Product version The product version can be determined using the product label. There may be an updated version of this document for these or later product versions è www.festo.com/sp. -
Page 5: Safety
Additional information – Accessories è www.festo.com/catalogue. Service Contact your regional Festo contact person if you have technical questions è www.festo.com. Product overview Function The module creates the connection between a valve terminal MPA-L and an automation system CPX- Festo — VMPAL-EPL-AP — 2019-08... -
Page 6: Configuration
Tab. 4 Connection for power supply Connection for voltage forwarding [XD2] Socket M8, 4-pin, A-coded Signal +24 V DC logic supply PS 0 V DC load supply PL 0 V DC logic supply PS +24 V DC load supply PL Tab. 5 Connection for voltage forwarding Festo — VMPAL-EPL-AP — 2019-08... -
Page 7: Assembly
CPX-AP"è 1.1 Applicable documents. • Connect the earthing cable to the functional earth connection FE. Commissioning • Commission the automation system CPX-AP in accordance with the "Instruction manual for auto- mation system CPX-AP" è 1.1 Applicable documents. Festo — VMPAL-EPL-AP — 2019-08... -
Page 8: Parameterisation
(factory setting) – 2: load voltage monitoring active – 20052 Behaviour in error state (communication UINT8 fault) – 0: reset outputs (factory setting) – 1: maintain status – 20085 Measured value temperature AP-ASIC [°C] INT16 Festo — VMPAL-EPL-AP — 2019-08... -
Page 9: Diagnostics And Fault Clearance
A switch-off of the load supply PL was detected. The cause (33620230) PL 24 V DC can be a deliberate shutdown by the emergency stop. Remedy – Check if the emergency stop was activ- ated. – Check load supply PL. Diagnost- Information ic status Festo — VMPAL-EPL-AP — 2019-08... - Page 10 ID hex (dec) Message Description 02 01 013F Overvoltage in the Overvoltage in the load supply PL 24 V DC (33620287) load supply PL Remedy – Check load supply PL. 24 V DC Diagnost- Error ic status Tab. 10 Diagnostic messages Festo — VMPAL-EPL-AP — 2019-08...
-
Page 11: Led Displays
PL Illuminated red – Module ramp-up not yet completed. System communication not yet initial- ised. LED flashes red quickly – Module identification (service function) Flashes quickly green Tab. 11 LED module diagnostics [MD] Festo — VMPAL-EPL-AP — 2019-08... -
Page 12: Disposal
Load supply PL outside the tolerance Check load supply PL. range. Flashes red Tab. 12 LED load supply [PL] Disposal ENVIRONMENT! Send the packaging and product for environmentally sound recycling in accordance with the current regulations è www.festo.com/sp. Festo — VMPAL-EPL-AP — 2019-08... -
Page 13: Technical Data
(safe extra-low voltage/protected extra-low voltage) against direct and indirect contact in accordance with IEC 61010-1) Electromagnetic com- See declaration of conformity www.festo.com è patibility 1) Storage temperature of valve terminal different Tab. 13 General technical data Festo — VMPAL-EPL-AP — 2019-08... - Page 14 Typ. 70 0 V PL to FE [nF] Typ. 35 Electrical isolation Between PS and PL Between the channels Short-circuit protection Per channel Electronic Behaviour after end of No automatic return overload Tab. 14 Power supply Festo — VMPAL-EPL-AP — 2019-08...
- Page 16 Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Reproduction, distribution or sale of this document or communic- Phone: ation of its contents to others without express authorization is +49 711 347-0 prohibited. Offenders will be liable for damages. All rights...
