MATRICE 300 RTK
Maintenance Manual
v1.0
2020.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRICE 300 RTK and is the answer not in the manual?

Questions and answers

Related Manuals for dji MATRICE 300 RTK

Summary of Contents for dji MATRICE 300 RTK

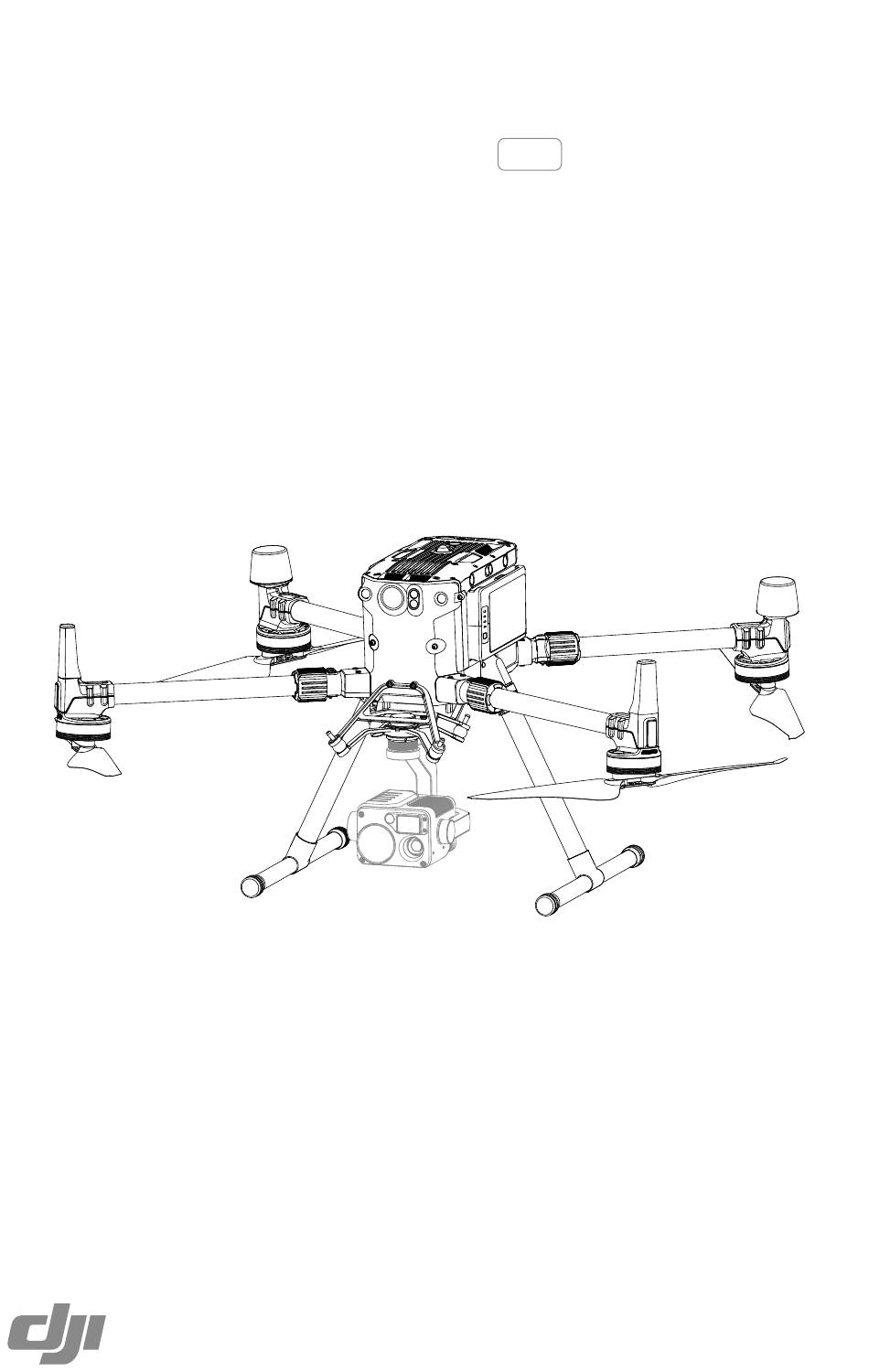

  • Page 1 MATRICE 300 RTK Maintenance Manual v1.0 2020.05...
  • Page 2 Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search. Navigating to a Topic View a complete list of topics in the table of contents.

  • Page 3: Table Of Contents

    Contents Introduction Disclaimer Safety Guidelines Flight Condition Requirements Storage and Transportation Firmware Updates Inspection and Maintenance Routine Inspection Regular Maintenance After-Sales Service Warranty Policy Repair Channel Appendix Maintenance Record © 2020 DJI All Rights Reserved.

  • Page 4: Introduction

    English version shall prevail. The final interpretation of this document and all related documents of this product belongs to DJI. This content is subject to change without prior notice. For up to date product information, visit http://www.dji.com and click on the product page for this product.

  • Page 5: Storage And Transportation

    To optimize your experience, it is recommended to keep the firmware of the aircraft and remote controller up to date before each flight. Refer to the User Manual for instructions on running a firmware update. If the firmware update fails, restart the device and retry. If the problem persists, please contact DJI Support.
  • Page 6 ※ It is recommended to replace the propellers only in an emergency situation during operations. After the emergency flight is over, please contact DJI technical support or an authorized agent for overhaul as soon as possible. Checklist When Powered On...
  • Page 7 MATRICE 300 RTK Maintenance Manual 1. All batteries, including Intelligent Flight Batteries and remote controller batteries, are fully charged. 2. It is recommended to charge and discharge the battery by following the standard instructions before flight if the battery is stored for a period longer than Battery one month.

  • Page 8: Regular Maintenance

    MATRICE 300 RTK Maintenance Manual Flight Test Checklist Type Essentials 1. Make sure that there are no potential safety hazards or people within 5 m of the aircraft. 2. Make sure that the satellite count is more than 10 and there is sufficient light.
  • Page 9 MATRICE 300 RTK Maintenance Manual 1. Regular maintenance items 2. Updates and calibration Total flight time is 400 hours, or Routine Factory service 3. Deep cleaning the product has been used for Maintenance mandatory 4. Components replacement 12 months. due to wear and tear 1.
  • Page 10 ※ It is recommended to replace the propellers only in an emergency situation during operations. After the emergency flight is over, please contact DJI technical support or an authorized agent for overhaul as soon as possible. Flight Controller 1.
  • Page 11 MATRICE 300 RTK Maintenance Manual 1. All the screws on the aircraft body are Screws tightened, especially the screws connecting the motor and the carbon tube. Landing 1. Screws are secure. Gear Base 2. There is no damage or cracks.
  • Page 12 MATRICE 300 RTK Maintenance Manual 1. Clean the foreign objects near the ports with a gauze. 2. If the port is in use, disconnect the cable, then check if there are foreign objects in the port with the help of a light.
  • Page 13 MATRICE 300 RTK Maintenance Manual Infrared Sensing and Vision Systems Infrared Auxiliary Lights Sensing and Vision 1. Clean the lenses with a soft cloth. System 2. Lenses are not loose and have no cracks. Lenses, 3. The auxiliary lights and beacons are not loose Auxiliary and cracked.
  • Page 14 MATRICE 300 RTK Maintenance Manual Standard Charge and Discharge Operation Instructions 1. Charge the battery to 100% and leave the battery stationary for more than 24 hours. 2. Install the battery into the aircraft before flight. If the remaining power level is less than 20%, land the aircraft and remove the battery.
  • Page 15 Health Management System Users can view the status of each module and upload the log with abnormal status in the Health Management System (HMS) page in the DJI Pilot app. 1. Enter the HMS page in DJI Pilot. 2. The health condition of each module of the connected device will be displayed onscreen.

  • Page 16: After-Sales Service

    MATRICE 300 RTK Maintenance Manual 4. Tap the warning message to view the help document for troubleshooting. If the abnormal status still exists after check by following the document, users can upload the log and contact DJI Support for help.

  • Page 17: Appendix

    □ HMS (hours) Time □ Flight Controller □ Vision System Calibration □ Aircraft Body Structure □ Firmware Update Maintainer □ Batteries □ Core Components Replacement Signature □ Component Replacement Due To Wear and Tear © 2020 DJI All Rights Reserved.
  • Page 18 □ HMS (hours) Time □ Flight Controller □ Vision System Calibration □ Aircraft Body Structure □ Firmware Update Maintainer □ Batteries □ Core Components Replacement Signature □ Component Replacement Due To Wear and Tear © 2020 DJI All Rights Reserved.
  • Page 19 DJI Support http://www.dji.com/support This content is subject to change without prior notice. Download the latest version from https://www.dji.com/matrice-300 Copyright © 2020 DJI All Rights Reserved.
