dji MATRICE 300 RTK Maintenance Manual

Hide thumbs Also See for MATRICE 300 RTK:
Table of Contents

Advertisement

Quick Links

MATRICE 200 Series V2
Maintenance Manual
v1.0
2020.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRICE 300 RTK and is the answer not in the manual?

Questions and answers

Related Manuals for dji MATRICE 300 RTK

Summary of Contents for dji MATRICE 300 RTK

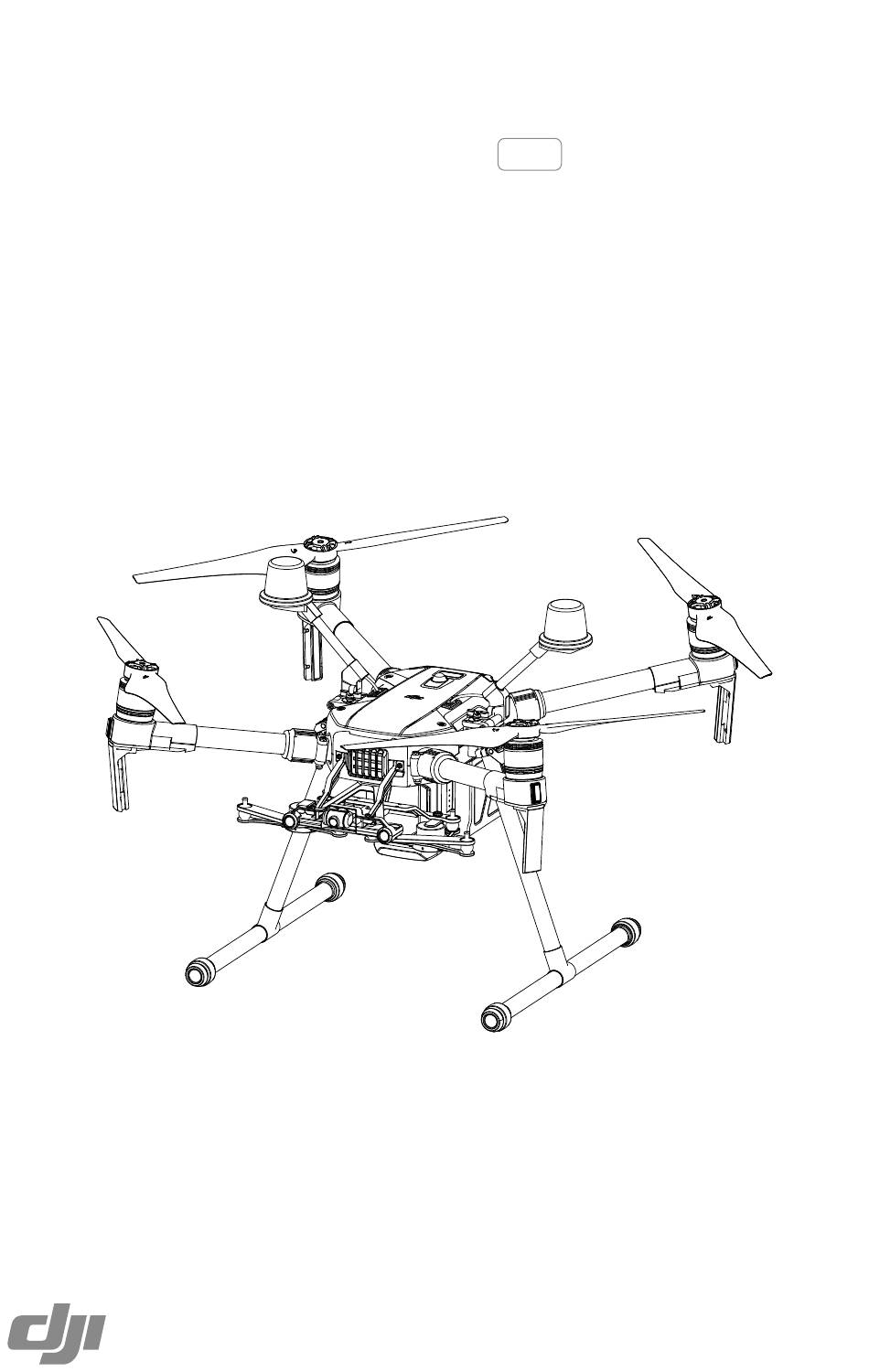

  • Page 1 MATRICE 200 Series V2 Maintenance Manual v1.0 2020.08...
  • Page 2 Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search. Navigating to a Topic View a complete list of topics in the table of contents.

  • Page 3: Table Of Contents

    Contents Introduction Disclaimer Safety Guidelines Flight Condition Requirements Storage and Transportation Firmware Updates Inspection and Maintenance Routine Inspection Regular Maintenance After-Sales Service Warranty Policy Repair Channel Appendix Maintenance Record © 2020 DJI All Rights Reserved.

  • Page 4: Introduction

    English version shall prevail. The final interpretation of this document and all related documents of this product belongs to DJI. This content is subject to change without prior notice. For up to date product information, visit http://www.dji.com and click on the product page for this product.

  • Page 5: Storage And Transportation

    To optimize your experience, it is recommended to keep the firmware of the aircraft and remote controller up to date before each flight. Refer to the User Manual for instructions on running a firmware update. If the firmware update fails, restart the device and retry. If the problem persists, please contact DJI Support.
  • Page 6 Clean the lenses and glass with a dust-free cloth if there is any moisture, fingerprint, or dirt. c. Contact DJI Support if there is any damage to the lenses of the Infrared Sensing and Vision Systems. 1. Spare USB-C cables 2.
  • Page 7 MATRICE 300 RTK Maintenance Manual 1. All batteries, including Intelligent Flight Batteries and remote controller batteries, are fully charged. 2. It is recommended to charge and discharge the battery by following the standard instructions before flight if the battery is stored for a period longer than Battery one month.
  • Page 8 MATRICE 300 RTK Maintenance Manual Flight Test Checklist Type Essentials 1. Make sure that there are no potential safety hazards or people within 5 m of the aircraft. 2. Make sure that the satellite count is more than 10 and there is sufficient light.

  • Page 9: Regular Maintenance

    MATRICE 300 RTK Maintenance Manual Regular Maintenance Make sure to perform inspection and maintenance regularly by following the standards below to keep the aircraft in a good condition and reduce safety risks. Regular Maintenance Items Propulsion System Type Inspection Process and Solutions Illustrations 1.
  • Page 10 MATRICE 300 RTK Maintenance Manual 1. Ensure that the screws on the upper cover are not loose. There is no damage or crack on the Motor Upper quick-release propeller base. Cover 2. If the quick-release propeller base is damaged or cracked, return to the factory for repair.
  • Page 11 MATRICE 300 RTK Maintenance Manual 1. All the screws on the aircraft body are tightened, Screws especially the screws connecting the motor and the carbon tube. 1. Detach the landing gear to check the three screws as shown. There is no damage or crack around the screws.
  • Page 12 MATRICE 300 RTK Maintenance Manual 1. The motor bases are not damaged or cracked. Motor Base 2. The motor base and the carbon tube are to be attached firmly. 1. Ensure the battery port contactors are clean and dry without any corrosion. Also, there should be Battery no trace of scorching.
  • Page 13 MATRICE 300 RTK Maintenance Manual 1. Ensure the expansion port cover can be closed and opened normally. 2. The expansion ports must be clean without any foreign matter or objects. The cable connector can be plugged and unplugged from the port Data Ports smoothly.
  • Page 14 MATRICE 300 RTK Maintenance Manual 1. Ensure that the dampeners are not damaged, loose, or aged. Gimbal 2. The gimbal connector should rotate smoothly. Damping Plate The surface must be clean without any foreign and Gimbal matter or dirt. Damper 3.
  • Page 15 MATRICE 300 RTK Maintenance Manual 2. Make sure the cell voltage difference is less than 0.1 V after the battery is fully charged and left stationary for six hours. 3. Make sure the battery is not swollen, leaky, or damaged.

  • Page 16: After-Sales Service

    After-Sales Service Warranty Policy Please visit https://www.dji.com/en/service/policy to check the product warranty period and warranty policy. Repair Channel Please visit https://repair.dji.com/repair/index and submit an Online Repair Request following the instructions. © 2020 DJI All Rights Reserved.

  • Page 17: Appendix

    (hours) □ Propulsion System □ Flight Controller □ Vision System Calibration □ Batteries □ Aircraft Body Structure □ Firmware Update Maintainer □ Core Components Replacement Signature □ Component Replacement Due To Wear and Tear © 2020 DJI All Rights Reserved.
  • Page 18 (hours) □ Propulsion System □ Flight Controller □ Vision System Calibration □ Batteries □ Aircraft Body Structure □ Firmware Update Maintainer □ Core Components Replacement Signature □ Component Replacement Due To Wear and Tear © 2020 DJI All Rights Reserved.
  • Page 19 DJI Support http://www.dji.com/support This content is subject to change without prior notice. Download the latest version from https://www.dji.com/matrice-200-series-v2 Copyright © 2020 DJI All Rights Reserved.
