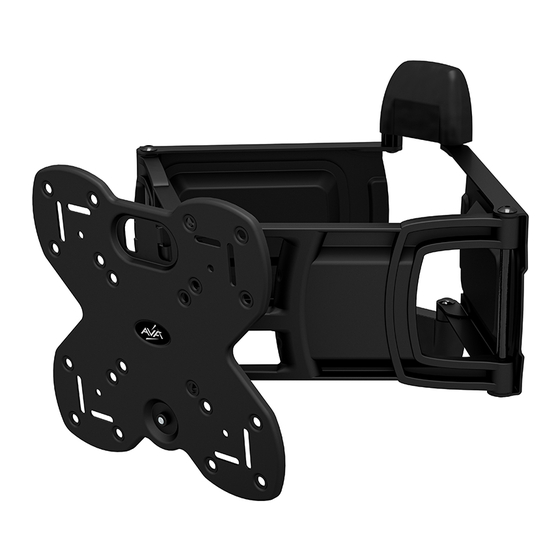

JNL454
465391
rev01
Read through
ALL
instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store. See jl.avfgroup.com/p/jnl454 for more information.
55"
CUSTOMER SERVICES HELP LINE NUMBER:
40kg
+44 (0) 333 320 0463
140cm
88lbs
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AVF JNL454
Summary of Contents for AVF JNL454
- Page 1 See jl.avfgroup.com/p/jnl454 for more information. 55" CUSTOMER SERVICES HELP LINE NUMBER: 40kg +44 (0) 333 320 0463 140cm 88lbs AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
- Page 2 Assembly Overview 2 Person Installation Recommended Fit the TV Mounting Plate Fit the Wall Bracket Connect the TV...
- Page 3 It is the responsibility of the installer to ensure that the mounting wall is of a suitable standard and void of any services (eg gas, electricity, water etc). AVF accept no responsibility for any damage or loss caused by installing this product in a sub standard wall.
- Page 4 Tools Recommended Stud Finder Ø12mm Ø3mm Masonry Wood Boxed Parts...
- Page 5 TV Screws, Reducers and Spacers...
- Page 6 Measure the TV fixing holes Width and Height 75 - 400mm If width X is greater than 400mm or height Y greater than 400mm STOP installation now and TV Fixing Holes contact the customer help line 75 - 400mm You are provided with 4 diameters of TV fixing screws, M4, M5, M6 and M8. Determine the screw diameter that fits and remember for step 4.
- Page 7 Preparing the TV Mounting Plate Use the option that fits your TV Do not fully tighten OPTION 1 OPTION 3 X 75mm Y 75mm X 300mm Y 100mm X 400mm Y 200mm X 100mm Y 100mm X 300mm Y 200mm X 400mm Y 300mm X 200mm...
- Page 8 SLOTS / FENTES OPTION 3 HOLES TROUS When attaching adaptors D you must always use HOLES x4 and either of the SLOTS. HOLES TROUS SLOTS / FENTES Example shown is 400mm x 400mm fixings. HOLES SLOTS X 300mm X 300mm...
- Page 9 HOLES SLOTS X 300mm X 400mm X 400mm X 400mm X 75mm - 400mm X 400mm 75mm - 400mm Adaptors D can be fixed in different positions in the slots on Plate C to match your TV fixing holes.
- Page 10 Fitting the TV Mounting Plate Before you fully tighten the TV mounting plate please check that the mounting plate holes line up with the fixing holes on the back of your TV. Holes do not line up and Holes line up and no small adjustment is required adjustment is required before you fully tighten...
- Page 11 Screw diameter dependant If required Fixings shown are valid for options 1, 2 & 3 and / or and / or and / or and / or Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.
- Page 14 Fitting the Wall Bracket Covers Connecting the TV Attaching and Locking...
- Page 15 Cable Management Ensure cables don’t restrict arm movement Check all fittings are tight...
- Page 16 Optional Lock Tilt TV Levelling...
