L2500
Read through
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store. See
CUSTOMER SERVICES HELP LINE NUMBER:
01952 670009
0870 0609777
AVF Group Ltd. Road 30. Hortonwood Ind Est, Telford, Shropshire, TF1 7YE, England
ALL
instructions before commencing installation.
www.avfgroup.com/unimax
Leaflet No. 462985
for instruction video.
60lbs
27kg
English language
rev 04
32"
81cm
Advertisement
Related Manuals for AVF L2500
Summary of Contents for AVF L2500

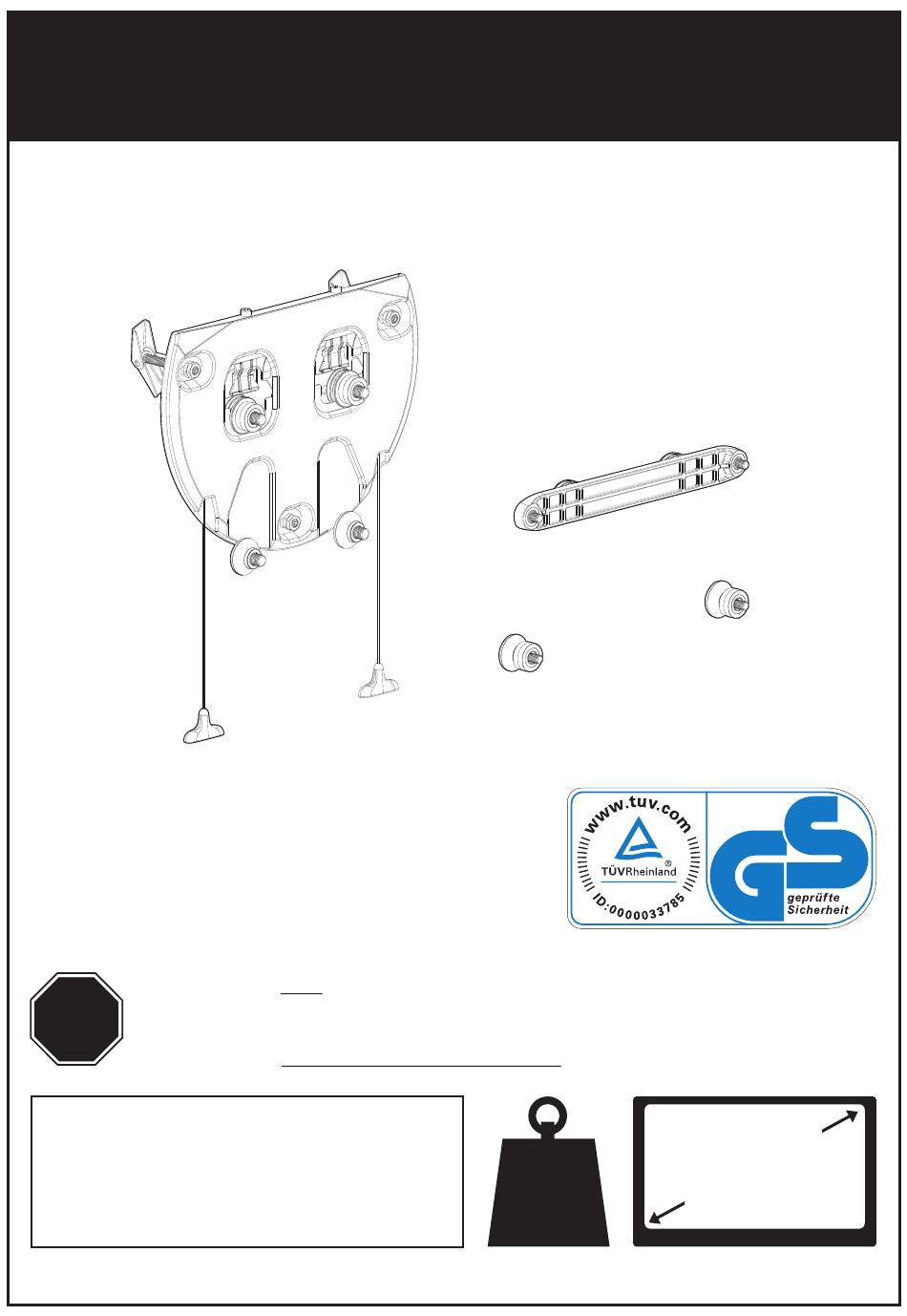

- Page 1 See www.avfgroup.com/unimax for instruction video. CUSTOMER SERVICES HELP LINE NUMBER: 32" 01952 670009 60lbs 81cm 0870 0609777 27kg AVF Group Ltd. Road 30. Hortonwood Ind Est, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Tools Required
Boxed Parts You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. - x1 - x2 - x2 - x1 Wall Bracket 200 Adaptor Hanger (Yellow) Stand-off Wall Fixings: Parts to attach to the TV Fixings: Parts go on the back of the TV wall (type of wall will determine (specification of your TV will determine... - Page 3 Determine Correct TV Screw Size Choose from the TV Fixings selection. You need to determine which length and diameter of screws fits your TV. To determine the correct screw diameter, try screwing (F ), (F ), (F ) & (F ) into one of the fixing holes on the back of the screen until you find the one that fits.
- Page 4 Option 1 Option 2 continued continued Top Fixings Bottom Fixings Top Fixings Bottom Fixings 2, 6 ,10, 14 1, 5 ,9, 13 1, 5 ,9, 13 2, 6 ,10, 14 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3 TV must be parallel to wall.
- Page 5 Install Wall Fixings Use the correct fixings for your wall type. Mixing fixing types may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. 75mm (3") Ø10mm (25/64") Lubricate screw Remove thread with soap dust from hole 108mm (4-1/4") Ø10mm 40mm Max...
- Page 6 Hanging The TV TV must be parallel to wall. Use spacers / stand-offs as shown. Push the yellow Hangers (on the back of the TV) in to the yellow receptor on the Wall Brackets. Slide down into place. Ensure both yellow Hangers are fully engaged.
- Page 7 Alternative Hanger Configurations Wall Space Alternative Wall spacings of 12mm, 20mm, 30mm & 40mm can be achieved using the spacer / screw combinations listed in this section. Option 1 Option 2 VESA Standard 75x75 & 100x100 VESA Standard 200x100 & 200x200 100-200mm 75-100mm Vertical...
- Page 8 Option 1 Option 2 continued continued Top Fixings Bottom Fixings Top Fixings Bottom Fixings ------------------- 30mm Wall Space ------------------- ------------------- 30mm Wall Space ------------------- 3, 7 ,11, 15 2, 6 ,10, 14 2, 6 ,10, 14 3, 7 ,11, 15 1, 2, 3 1, 2, 3 1, 2, 3...
