JML2400
463446
rev05
Read through
ALL
instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store. See jl.avfgroup.com/p/jml2400 for more information.
CUSTOMER SERVICES HELP LINE NUMBER:
44lbs
0333 320 0463
20kg
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF JML2400
Summary of Contents for AVF JML2400

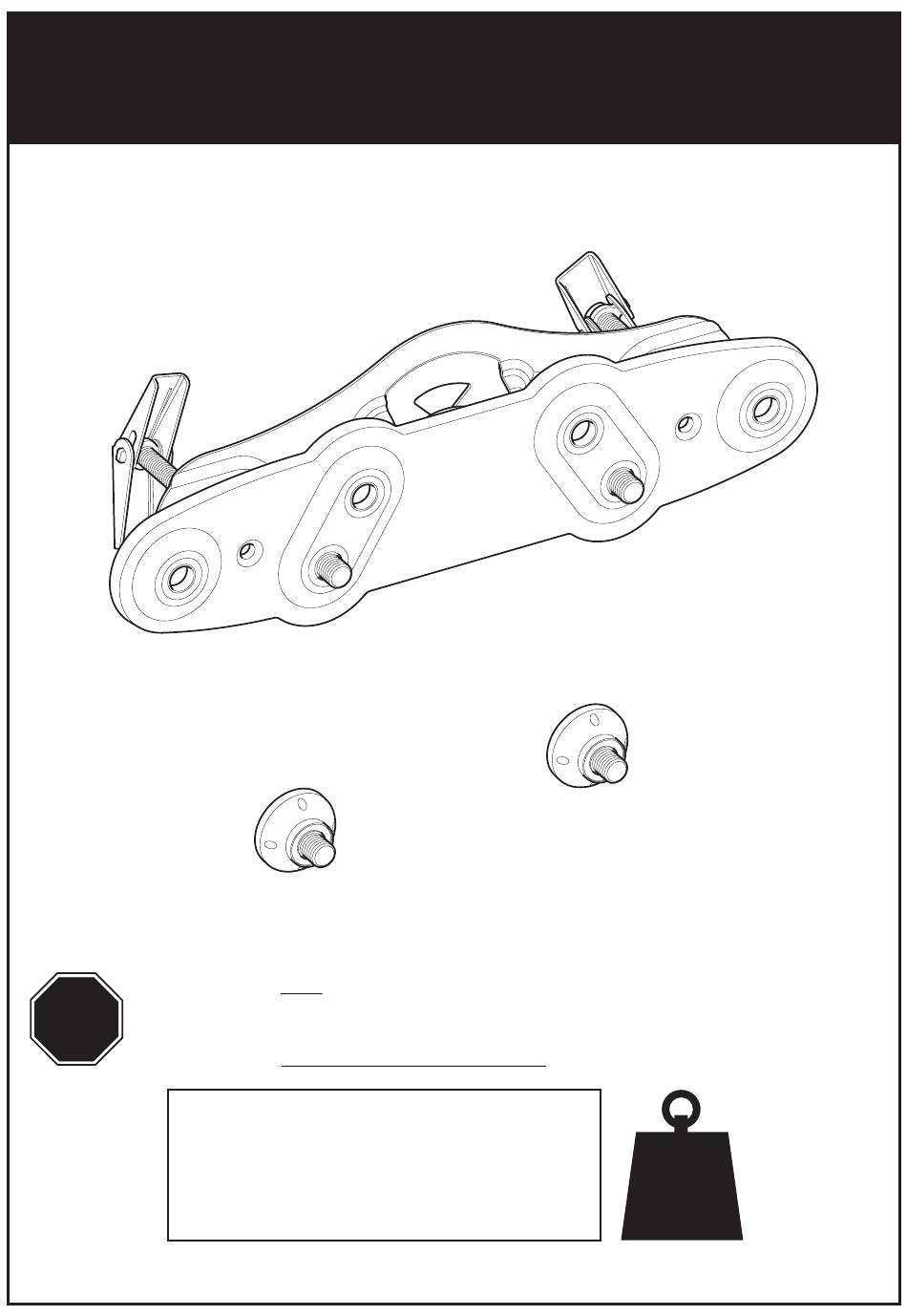

- Page 1 If you have any questions about this product or issues with installation STOP contact the customer services helpline before returning this product to the store. See jl.avfgroup.com/p/jml2400 for more information. CUSTOMER SERVICES HELP LINE NUMBER: 44lbs 0333 320 0463 20kg AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Tools Required

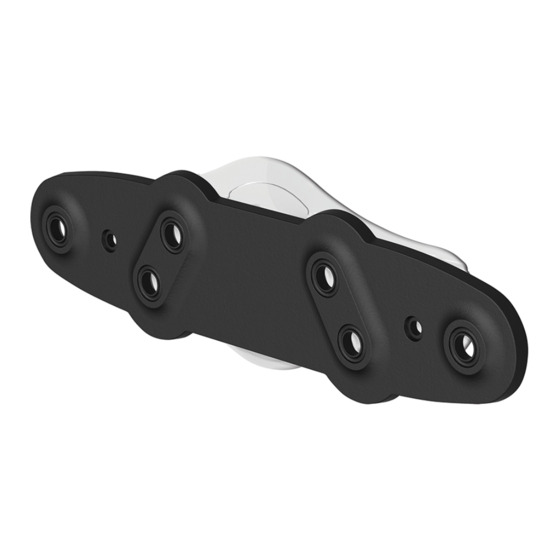

Boxed Parts You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. - x1 - x1 - x2 Wall Bracket Hanger Stand-off Wall Fixings: Parts to attach TV Fixings: Parts go on the back of the TV to the wall (type of wall will (specification of your TV will determine determine which fixings you... - Page 3 Determine Correct TV Screw Size Choose from the TV Fixings selection. You need to determine which length and diameter of screws fits your TV. To determine the correct screw diameter, try screwing (F ), (F ), (F ) & (F ) into one of the fixing holes on the back of the screen until you find the one that fits.
- Page 4 Marking Wall For Drill Points IMPORTANT:- When deciding where to locate your TV, remember clearance around your TV is required in order to fit the TV. See Section 8 “Hanging The TV”. For this step you will need your Wall Marking Template WT. To determine the exact position for you drill points use the Height Calculator app.
- Page 5 Install Wall Fixings Use the correct fixings for your wall type. Mixing fixing types may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. 75mm (3") Ø10mm Remove (25/64") dust from holes Lubricate screw thread with soap 108mm ") Ø10mm...
- Page 6 Hanging The TV Vertical Line Guide Marks Hanger Guide Tabs Rotate your TV so that the guide marks on the hanger are vertical. Next slide your TV down so that the hanger goes between the two guide tabs on the wall bracket. Ensure the hanger is fully engaged and rotate clockwise until your TV is level.
- Page 7 Alternative Hanger Configurations Wall Space Alternative Wall spacings of 20mm, 30mm & 40mm can be achieved using the spacer / screw combinations listed in this section. 20mm Wall Space (as shown in section 4) 30mm Wall Space 40mm Wall Space Top Fixings Top Fixings Top Fixings...
