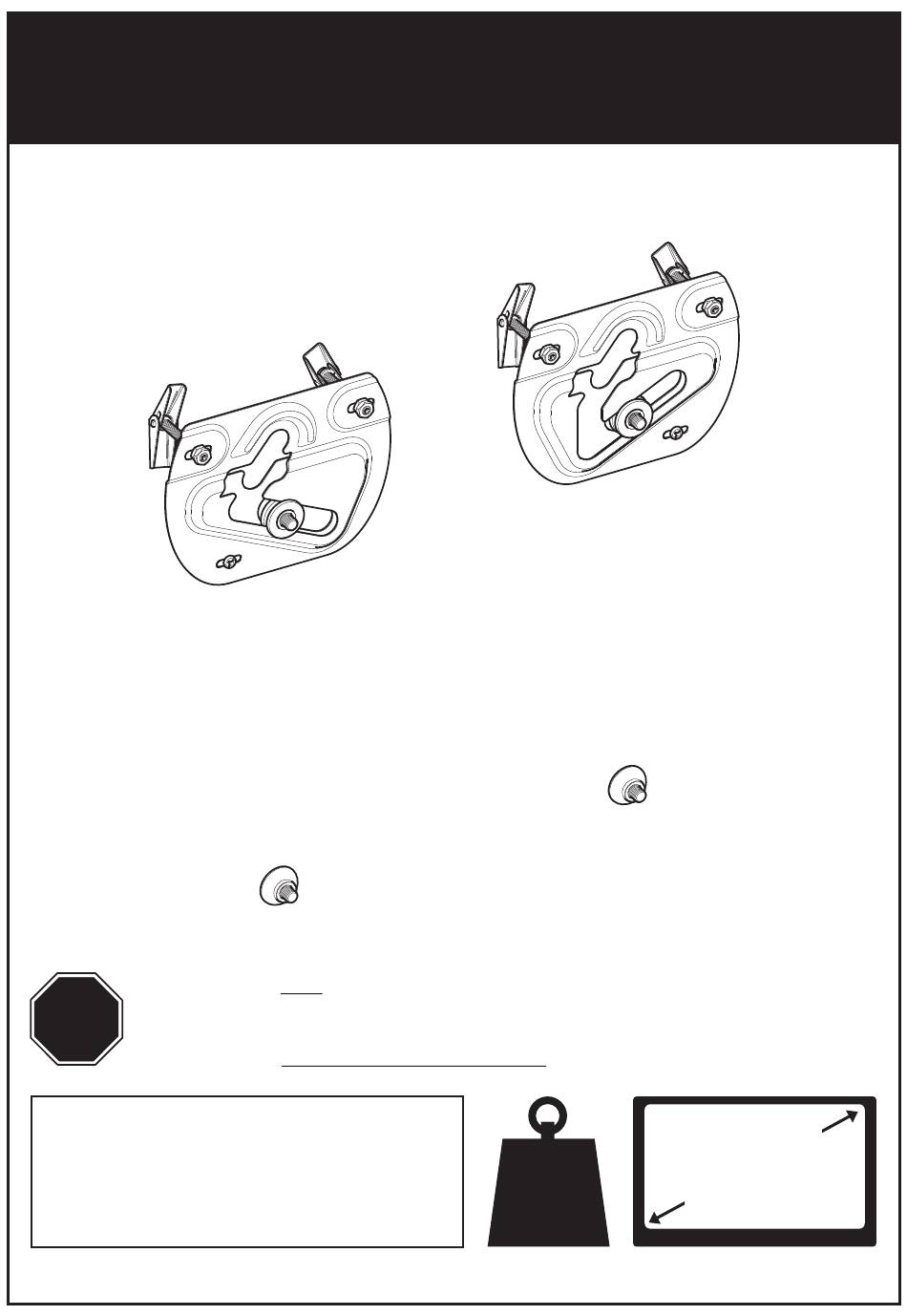

JML8400
Read through
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store. See jl.avfgroup.com/p/jml8400 for more information.
CUSTOMER SERVICES HELP LINE NUMBER:
01952 670009
0870 0609777
AVF Group Ltd. Road 30. Hortonwood Ind Est, Telford, Shropshire, TF1 7YE, England
ALL
instructions before commencing installation.
Leaflet No. 463448
121lbs
55kg
rev00
65"
165cm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF JML8400
Summary of Contents for AVF JML8400
- Page 1 See jl.avfgroup.com/p/jml8400 for more information. CUSTOMER SERVICES HELP LINE NUMBER: 65" 01952 670009 121lbs 165cm 0870 0609777 55kg AVF Group Ltd. Road 30. Hortonwood Ind Est, Telford, Shropshire, TF1 7YE, England...
- Page 2 Boxed Parts You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. - x1 - x1 - x2 - x2 LH Wall RH Wall Hanger Stand-off Bracket Bracket (Yellow) Wall Fixings: Parts to attach to the wall TV Fixings: Parts go on the back of the TV...
-
Page 3: Tools Required
Tools Required Determine Correct TV Screw Size Choose from the TV Fixings selection. You need to determine which length 2, 5 ,8, 11 and diameter of screws fits your TV. To determine the correct screw diameter, try screwing (G ), (G ), (G ) &... - Page 4 Assemble Positioning Template The horizontal part of the positioning template is used to mark out where you need to drill the mounting holes on your wall. The vertical part is just a guide to allow you to see how high up the wall your TV will be to help you find the perfect position for viewing your screen.
- Page 5 Marking Wall For Drill Points Use your template to mark two points on the wall that correspond with the top fixing centres of your TV. Represents the centre of your TV. Next, use the Wall Brackets (A) and (B) as a template and position it over one of the PENCIL MARKS you have made, so that the mark is in the middle of the CENTRAL HOLE of the Wall Bracket (A).
- Page 6 Install Wall Fixings Use the correct fixings for your wall type. Mixing fixing types may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. 75mm (3") Ø10mm Remove (25/64") dust from holes Lubricate screw Ø5.5mm thread with soap 40mm (1 ")
- Page 7 Hanging The TV Guide Recess Present the yellow Hangers (on the back of the TV) to the guide recess on the Wall Brackets. Slide down and across into place. Ensure both yellow Hangers are fully engaged. If cables from the TV prevent the TV resting against the wall then an alternative hanger configuration will be required...
- Page 8 Alternative Hanger Configurations Wall Space Alternative Wall spacings of 12mm, 20mm & 40mm can be achieved using the spacer / screw combinations listed in this section. 20mm Wall Space (as shown in section 4) 12mm Wall Space 40mm Wall Space Top Fixings Top Fixings Top Fixings...
