VP-778 Quick Start Guide
This guide helps you install and use your VP-778 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

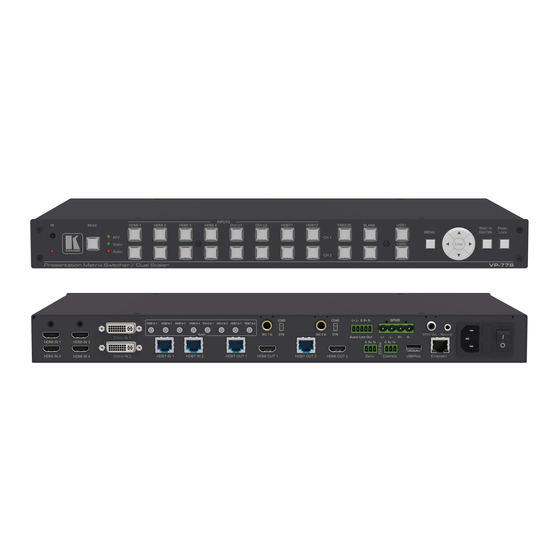

VP-778 Presentation Matrix Switcher/Dual Scaler
IR remote control transmitter with batteries
2 DVI (M) to 15-pin HD (F) (AD-DM/GF)

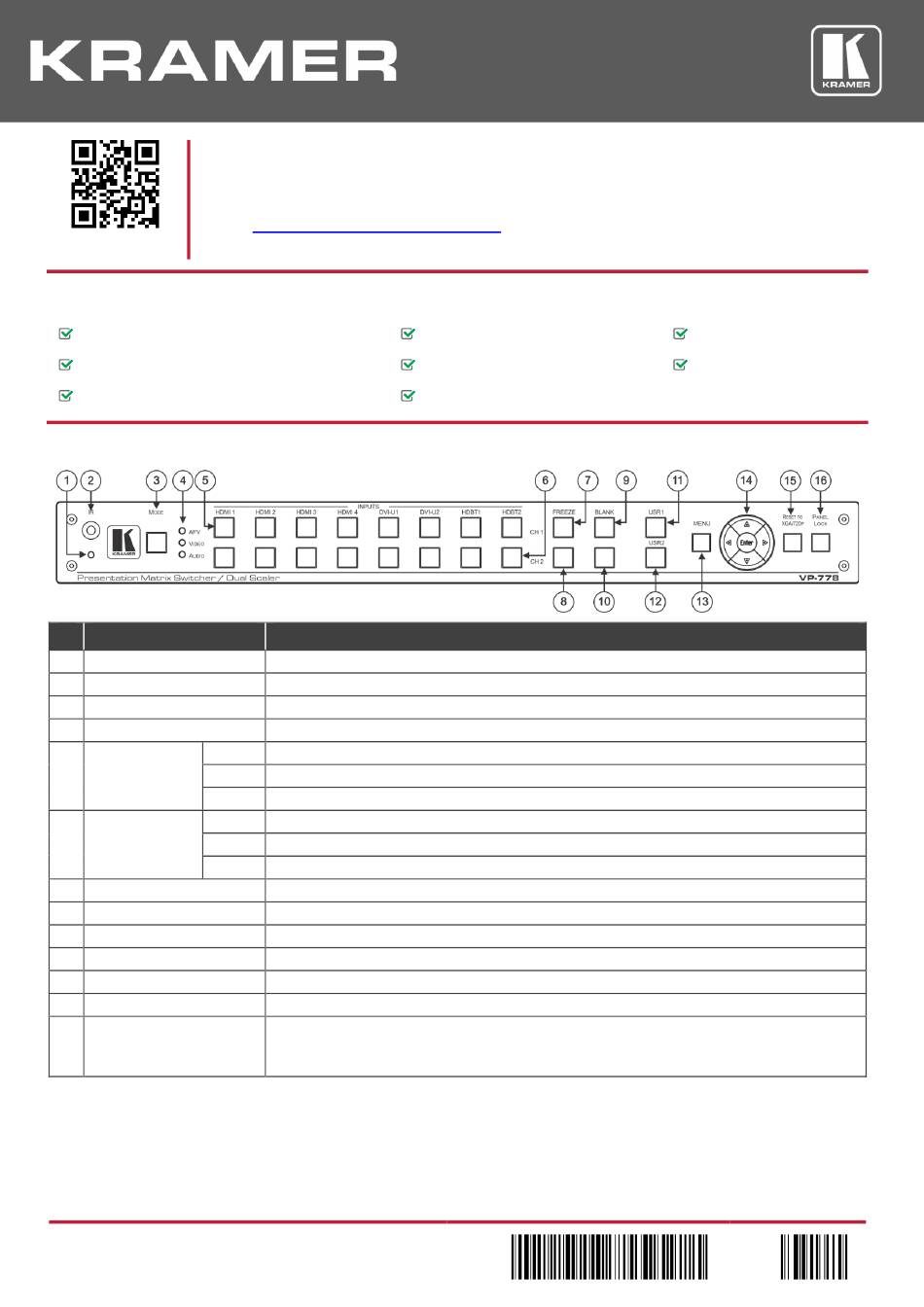

Step 2: Get to know your VP-778
# Feature
1 IR LED
2 IR Receiver
3 MODE Button
4 Mode LED indicators
5 CH 1 INPUT HDMI
Selector Buttons
DVI-U
HDBT
6 CH 2 INPUT HDMI
Selector Buttons
DVI-U
HDBT
7 CH 1 FREEZE Button
8 CH 2 FREEZE Button
9 CH 1 BLANK Button
10 CH 2 BLANK Button
11 USR1 User-defined Button
12 USR2 User-defined Button
13 MENU Button
VP-778 Quick Start (P/N: 2900-300445QS REV 1)
www.kramerav.com/downloads/VP-778
Function
Lights red when the unit accepts IR remote commands
Accepts IR remote commands
Select the operation mode: audio follow video (AFV), Video or audio
Indicate the operation mode, as selected via the MODE button
Press to select the HDMI input (from 1 to 4)
Press to select the DVI universal input: HDMI, VGA, component or composite video (from 1 to 2)
Press to select the HDBT input (from 1 to 2)
Press to select the HDMI input (from 1 to 4)
Press to select the DVI universal input: HDMI, VGA, component or composite video (from 1 to 2)
Press to select the HDBT input (from 1 to 2)
Press to freeze/unfreeze the CH 1 output video image
Press to freeze/unfreeze the CH 2 output video image
Press to toggle between a blank screen (black) and the CH 1 display
Press to toggle between a blank screen (black) and the CH 2 display
can be assigned and programmed (for example, to turn a projector on and off)
can be assigned and programmed (for example, to turn a projector on and off)
Press to access/exit the OSD menu. While browsing the CH1 OSD menu, press and hold the
MENU button to jump to the CH2 menu and vice versa. When in the MIC Effects menu, press and
hold the MENU button to toggle between MIC 1 and MIC 2
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
2 DVI-A (M) to 5 BNC (F) adapter cables (ADC-DMA/5BF-1)
P/N:
2900- 300445QS
4 Rubber feet
1 Quick start guide
Rev:
1
