Elite Screens VMAX Dual Series Product White Paper

PRODUCT WHITE PAPER
www.elitescreens.com

Section 1: Screen Design

1.1 What is it?

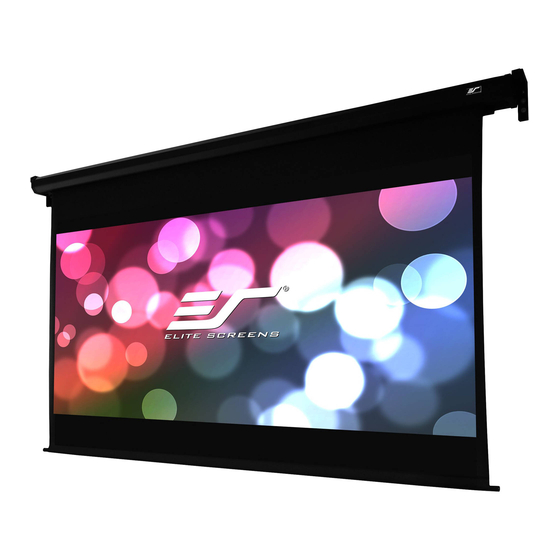

The VMAX Dual® Series is an electric projection screen with alternating 16:9/2.35:1 aspect ratio
options. The product comes fully equipped with mounting brackets in addition to an RF and 12V
trigger control kit.
1.2 How does it work?
The VMAX Dual® offers a professional grade surface to match the abilities of anamorphic
projectors. Anamorphic is the ability for a projector to switch from one aspect ratio (screen shape)
to another in accordance with the type of presentation being shown. The VMAX Dual® utilizes two
independently front projection materials and is compatible with all standard throw Home Cinema
projectors. Available with MaxWhite® (matte white) and AcousticPro UHD (sound transparent)
front projection surfaces.

Section 2: Product Features

2.1 Characteristics
Screen Material
MaxWhite® 1.1 Gain or AcousticPro UHD 1.0 Gain front projection surface
•
Standard black backing eliminates light penetration (MaxWhite® only)
•
Wide viewing angle with excellent diffusion uniformity
•
Not compatible with Ultra/Short-throw Projectors
•
4-sided black masking borders
•
Active 3D, 4K Ultra HD, and HDR Ready
•
Available in the following diagonal sizes:
•
100" and 120" in 16:9 format
•
95" and 114" in 2.35:1 format
•
Design and Installation
Rectangular housing is durable and moisture resistant
•
Wall or Ceiling installation options
•
12mm distance between screen materials negates depth of focus distortion
•
Dual motors for each screen panel
•
Constant Image Width
•
Control System
Radio Frequency (RF) wireless remote control operation with separate 16:9 and
•
2.35:1 buttons
Wireless 5-12v trigger enables (16:9 default) drop/rise operation to synchronize with
•
the projector's power cycle
Alternating 16:9 (HDTV) and 2.35:1 (Cinemascope) projection materials
•
