Elite Screens VMAX Dual Series Adjustment Instructions Manual

Hide thumbs Also See for VMAX Dual Series:
1
2
3
4
5
6

Advertisement

Table of Contents

Limit switch adjustment

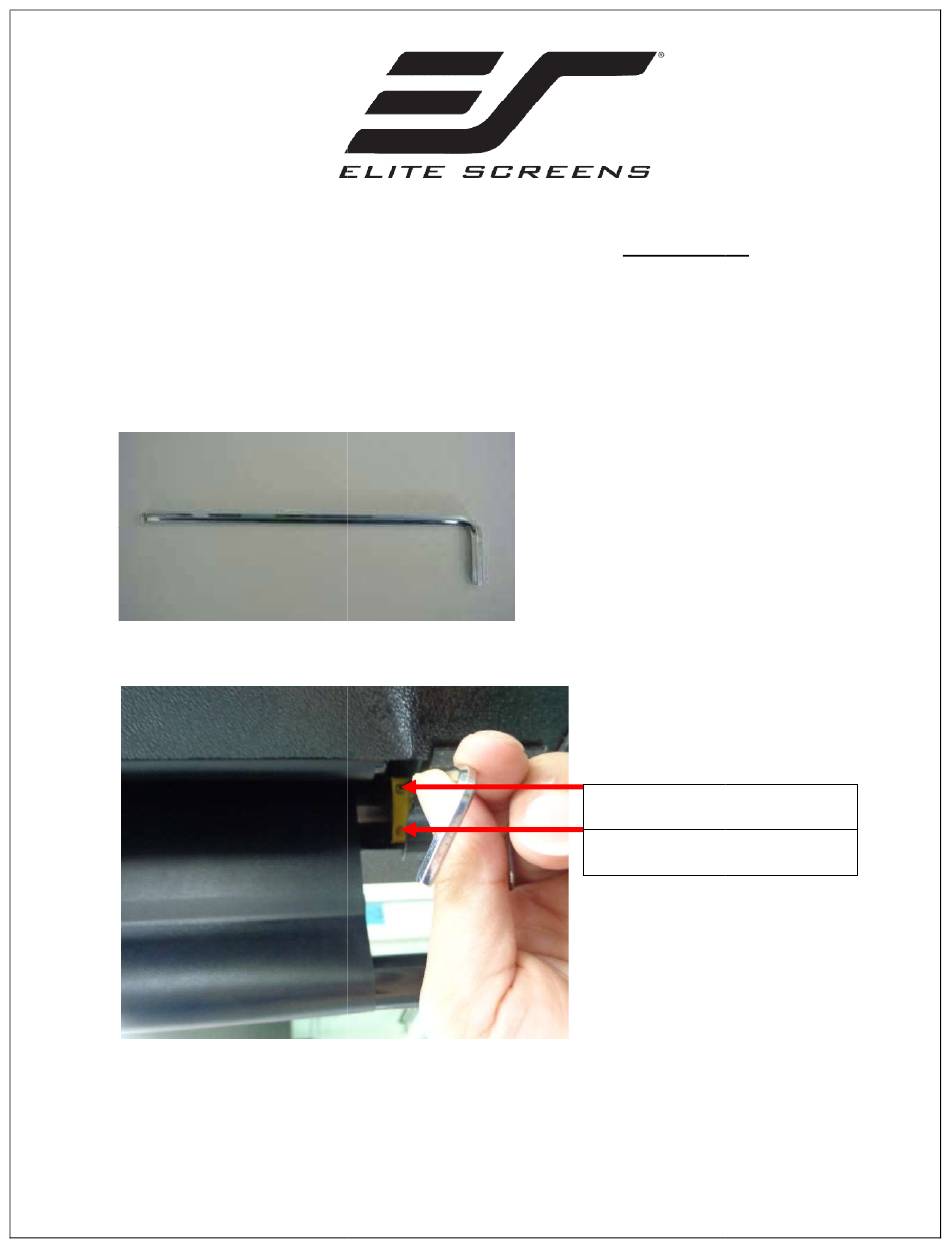

Limit switch adjustment instructions for VMAX Dual
NOTE: Elite Screens does not recommend making unnecessary adjustments to the screen, as
NOTE: Elite Screens does not recommend making unnecessary adjustments to the screen, as
NOTE: Elite Screens does not recommend making unnecessary adjustments to the screen, as
improper adjustments will damage the unit and may void your warranty.
improper adjustments will damage the
1. Tool – 5/32 Allen-wrench

2. Limit Switch Adjustment Locations

Limit Switch Adjustment Locations
NOTE: When turning the limi
When turning the limit switches, bear in mind that a full‐circle turn in either
direction will create a one inch
Rev, 8/17/16
wrench
one inch adjustment.
1
ual Series
Upper limit adjustment
limit adjustment screws
Lower limit adjustment
limit adjustment screws
circle turn in either
www.elitescreens.com
www.elitescreens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMAX Dual Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens VMAX Dual Series

Summary of Contents for Elite Screens VMAX Dual Series

  • Page 1 Limit switch adjustment instructions for VMAX Dual ual Series NOTE: Elite Screens does not recommend making unnecessary adjustments to the screen, as NOTE: Elite Screens does not recommend making unnecessary adjustments to the screen, as NOTE: Elite Screens does not recommend making unnecessary adjustments to the screen, as improper adjustments will damage the improper adjustments will damage the unit and may void your warranty.
  • Page 2 3. If the screen does not retract all the way in to the housing, use the following instructions. Press the UP button on the remote to retract the screen as much as possible. Use your Allen-wrench to turn the UP switch counter-clockwise.
  • Page 3 4. Adjusting the Top Black Masking. If the screen lowers too much, simply rotate the DOWN adjustment switch clockwise. The screen will not react when turning the screw. (NOTE: Please avoid over-turning the switch.) Note: Top Black Masking should only be increased if you previously decreased the drop and want it back.
  • Page 4 To check the adjustment made for the drop, simply raise the screen about ¼ of the way, and then drop it down again. Measure the top black masking to ensure it drops down to the proper distance. 5. Adjusting the rise of the 2:35 screen NOTE: The limit adjustment screws for the 2.35 screen are located on the front of the housing on the left hand side.
  • Page 5 Use your Allen-wrench to turn the UP switch counter-clockwise. When you turn the UP switch, the screen will retract correspondingly. Stop rotating the switch once the weight bar lines up with the casing. WARNING: If you continue to rotate the switch once the weight bar fits flush with the casing, the screen will attempt to retract further, causing damage to the unit.
  • Page 6 Use your remote control to fully lower the screen by pressing the 2.35 DOWN button. Use your Allen-wrench to turn the DOWN switch counter-clockwise. When you turn the DOWN switch, the screen will lower correspondingly. Stop turning the switch once screen reaches desired...
