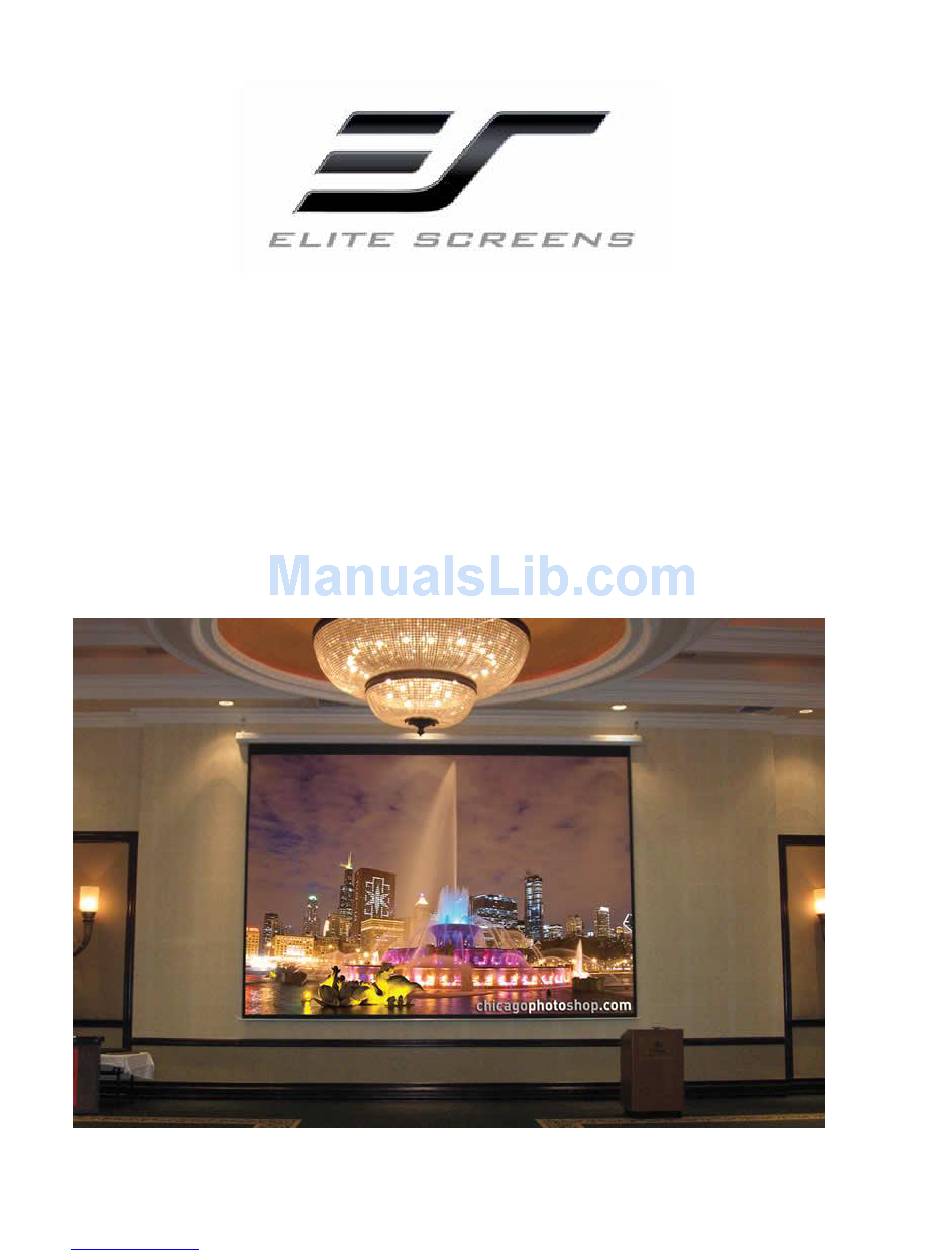

- Page 1 Electric Motorized Projection Screen VMAX PLUS 4 SERIES User’s Guide Rev.010512-AS www.elitescreens.com info@elitescreens.com...
- Page 2 Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved changes or modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited and will void your warranty.
- Page 3 Please consult a professional installation company for further installation and safety advice. The installer must insure that proper mounting hardware is used to provide adequate strength suitable for the installation. Elite Screens is not liable for any faulty installations.
- Page 4 Accessories for VMAX Plus 4 Series Please make sure all accessories below are included before proceeding. Red+ Green- Infrared Remote Radio Frequency 12 Volt Trigger 3 Way Wall Switch Infrared Eye Receiver AAA Batteries Bubble Level Rev.010512-AS www.elitescreens.com info@elitescreens.com...
- Page 5 1. Select the installation location for your screen. Ensure that it is within reasonable proximity from your power source. 2. Elite Screens provides a built-in suspended ceiling mount bracket for the VMAX PLUS 4. The professional installer would need to provide any hardware and the safest way to install this screen.
- Page 6 Troubleshooting & FAQ’S For additional information, please contact Elite Screens at techsupport@elitescreens.com 1. If your screen does not move, please check the power supply. The screen will understandably not move without power. 2. Make sure the power cord is firmly plugged to the power outlet.
- Page 7 VMAX PLUS 4 Series Dimension Table *Measurement dimensions are intended as a reference only and subject to change without notice. Note: Data Error may be ±1" Rev.010512-AS www.elitescreens.com info@elitescreens.com...
- Page 8 : If a return is needed, Elite Screens will issue you a Return Merchandise Authorization (“RMA”) Number. This number is valid for (45) days from the date of issue, and is required to process any returns. A returned item sent to Elite Screens without a visible or valid RMA Number is subject to refusal by Elite Screens.
