Elite Screens VMAX 2 Series Quick Setup Manual

This is only a quick reference user guide. Please visit our website for a
complete USER GUIDE on your VMAX2 or Spectrum Series. For More
Information or tech support, please visit www.elitescreens.com

PRE INSTALLATION

1. Carefully unpack the screen
2. Always handle the screen in a leveled position on a clean surface.
3. In order to keep the screen from incurring any physical damages or blemishes to the material during
installation, do not let the screen come in contact with any foreign objects such as tools, hardware, dust,
liquids, etc.

INSTALLATION

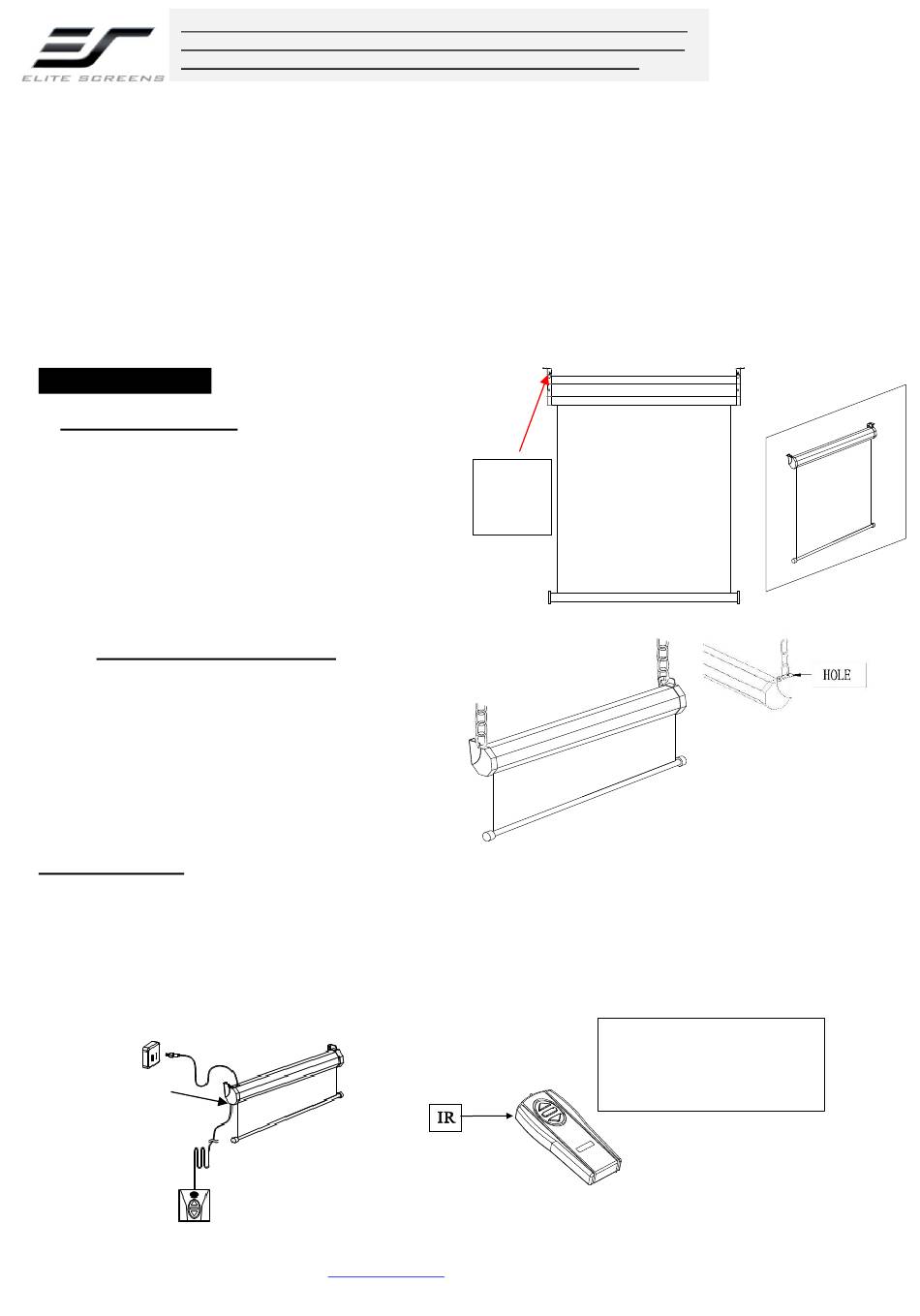

Flush Wall Mounting

1. Mark the location of where the screen is to be
installed for the pre-drilled hole.
2. After marking the area and drilling the hole,
insert the proper screw into the drilled hole
and leave about 1/8" of an inch from the wall
to mount the screen.
3. Mount your screen from the keyhole located
on back of screen's left and right end caps.

Suspended Ceiling Mounting

A suspended ceiling installation can be achieved
by using chains (not included) and attaching them
to the two top holes located on the ear of the end
caps as shown in the illustration.

Screen Operation

Once the screen has been connected to a power outlet, connect the included 3-way wall switch into the screen's RJ45
port and press the DOWN button to drop the screen. Press the UP button to retract the screen up into the casing. The
middle button is to STOP the screen at any point.
The screen includes a built-in Infrared sensor for your IR remote. Simply point your IR remote at the round eye sensor
located on the front of your screen to remotely control your screen.
RJ45 port location
Rev031113
Elite VMAX 2 Series
QUICK SET UP GUIDE
3-way wall switch
www.elitescreens.com
Keyhole
located on
back of
end cap
For a complete description of the
accessories your screen came
with, visit the user guide section at
www.elitescreens.com/ug
