3. Servo Motor Precautions

3.1 Servo Motor Connectors

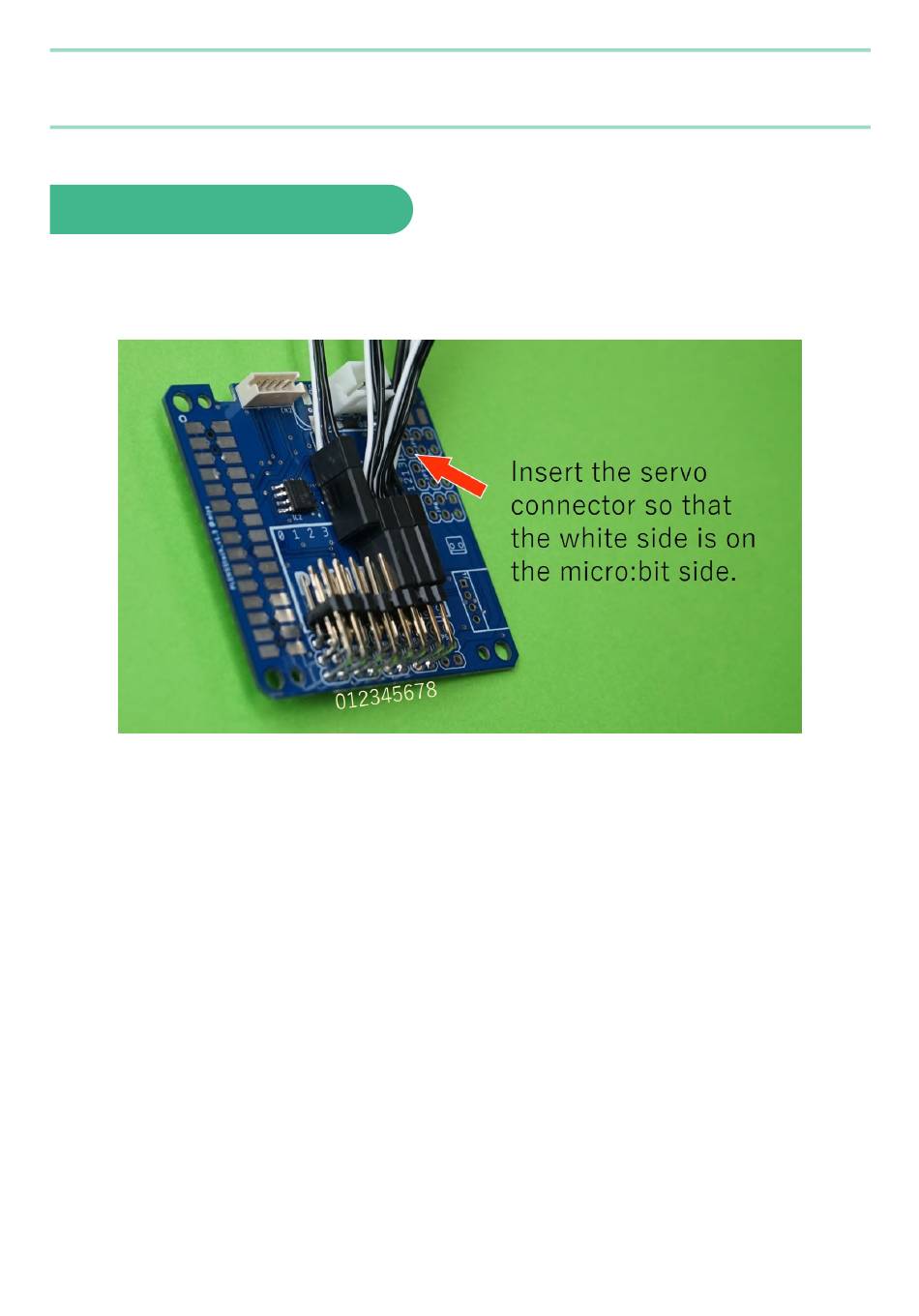

1. The servo motor connectors have a correct orientation. There are two black cables and one white cable,
where the white cable is the signal, the center is power, and the last is ground. Insert each cable such
that the white cable is on the inside.
Pay attention to connector orientation
7 / 60
8/31/2020
