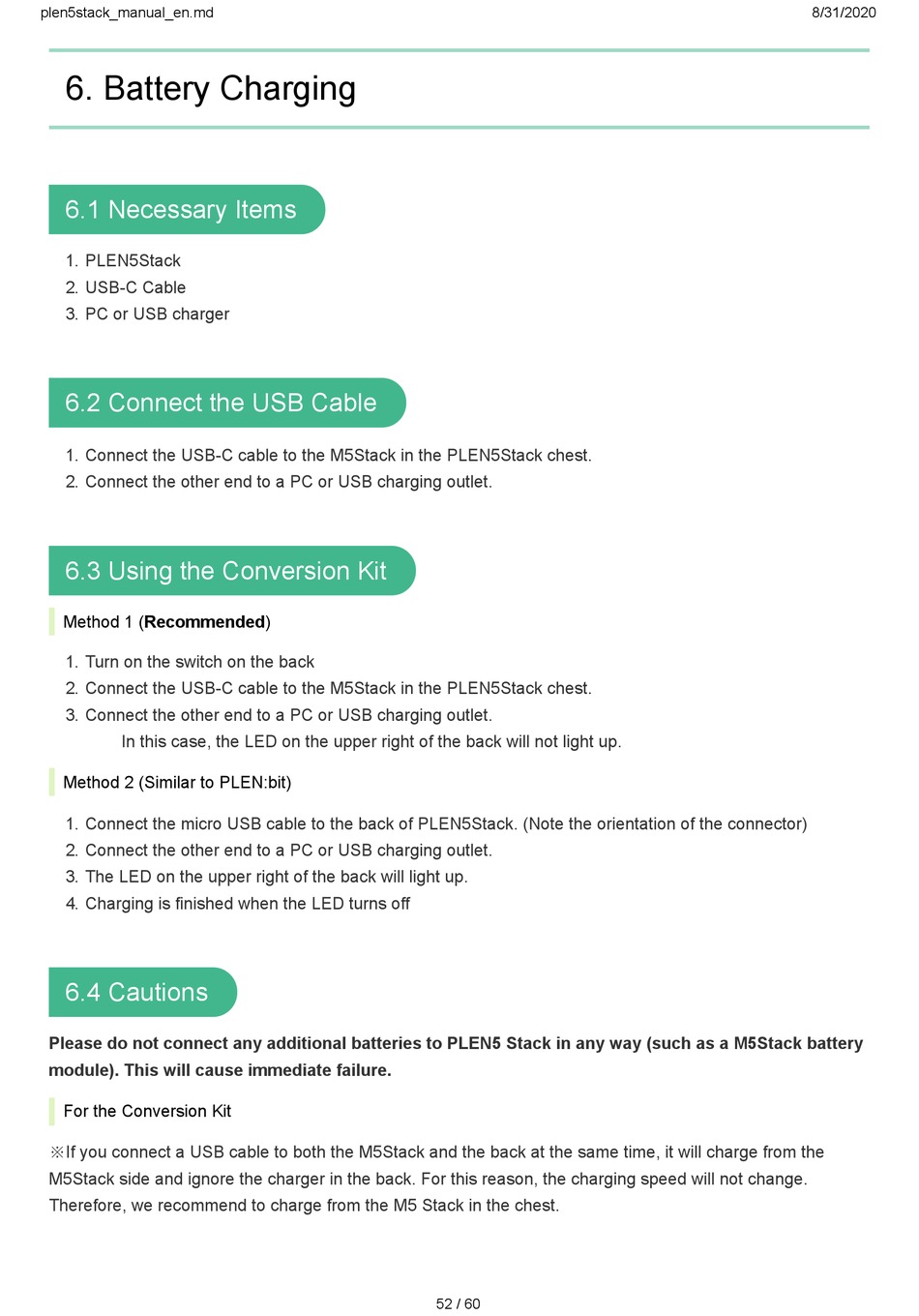

6. Battery Charging

6.1 Necessary Items
1. PLEN5Stack
2. USB-C Cable
3. PC or USB charger

6.2 Connect the USB Cable

1. Connect the USB-C cable to the M5Stack in the PLEN5Stack chest.
2. Connect the other end to a PC or USB charging outlet.

6.3 Using the Conversion Kit

Method 1 (Recommended)
1. Turn on the switch on the back
2. Connect the USB-C cable to the M5Stack in the PLEN5Stack chest.
3. Connect the other end to a PC or USB charging outlet.
In this case, the LED on the upper right of the back will not light up.
Method 2 (Similar to PLEN:bit)
1. Connect the micro USB cable to the back of PLEN5Stack. (Note the orientation of the connector)
2. Connect the other end to a PC or USB charging outlet.
3. The LED on the upper right of the back will light up.
4. Charging is finished when the LED turns off

6.4 Cautions

Please do not connect any additional batteries to PLEN5 Stack in any way (such as a M5Stack battery
module). This will cause immediate failure.
For the Conversion Kit
※If you connect a USB cable to both the M5Stack and the back at the same time, it will charge from the
M5Stack side and ignore the charger in the back. For this reason, the charging speed will not change.
Therefore, we recommend to charge from the M5 Stack in the chest.
