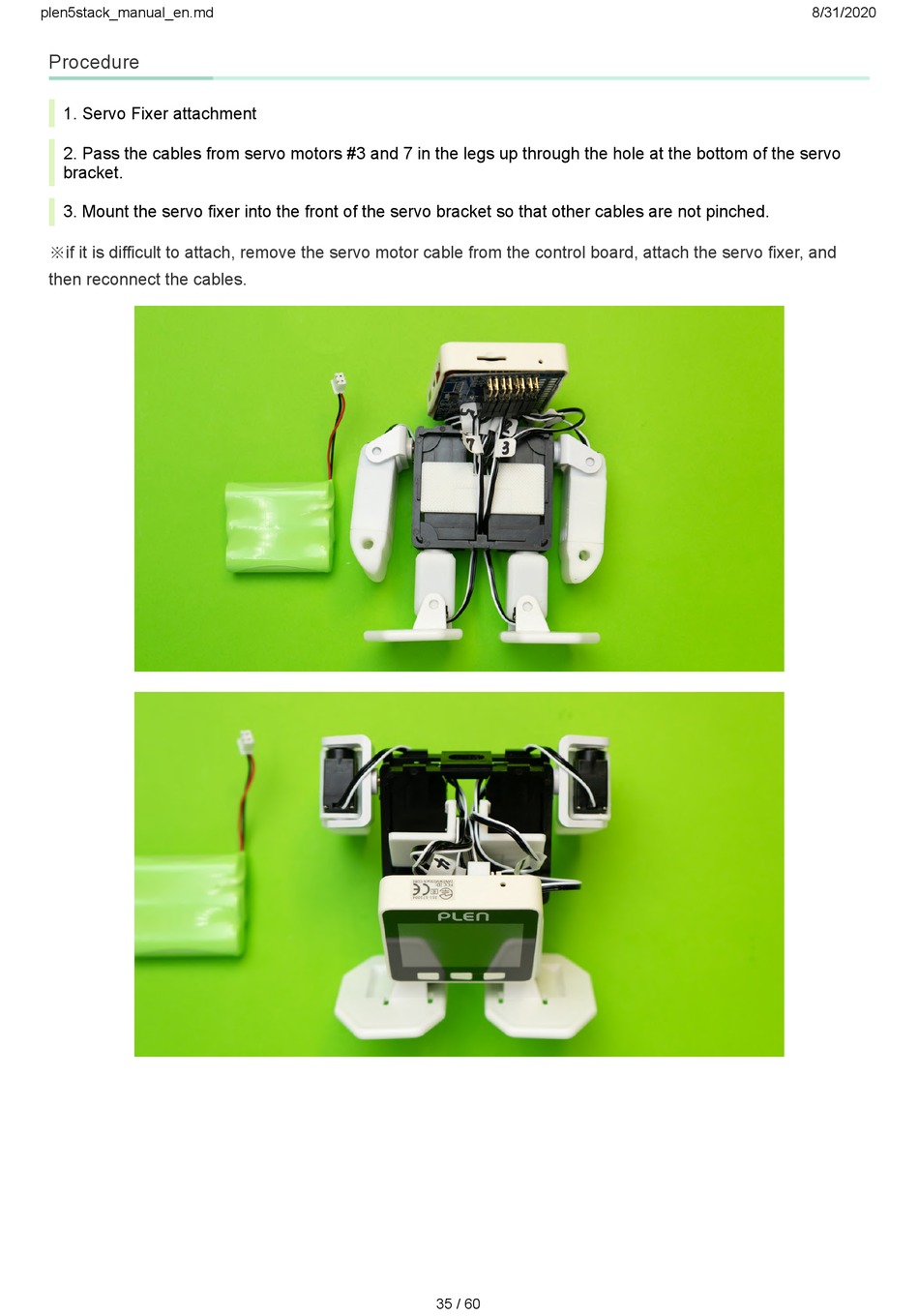

Procedure
1. Servo Fixer attachment
2. Pass the cables from servo motors #3 and 7 in the legs up through the hole at the bottom of the servo
bracket.
3. Mount the servo fixer into the front of the servo bracket so that other cables are not pinched.
※if it is difficult to attach, remove the servo motor cable from the control board, attach the servo fixer, and
then reconnect the cables.
35 / 60
