The last stage consists in soldering the XLR/TRS female
connector.
We strongly recommend Neutrik NCJ6FA-V for assured PCB
layout and mechanical compatibility.
Simply hold the connector in place and solder it (Figure. 11)
The DSP-Lite is now hardware-configured for two-input
operation.
Please refer to the DSP-Lite User Guide for two-input DSP
routing configuration.
Warning: in order to avoid unwanted short circuits between the conductive parts of the XLR connec-
tor, do not use exceeding quantities of solder, as it may seep trough the PCB with unwanted results.
Please avoid pushing the XLR connector with too much force when soldering, as this may also yield to
unwanted short circuits between the delicate components.

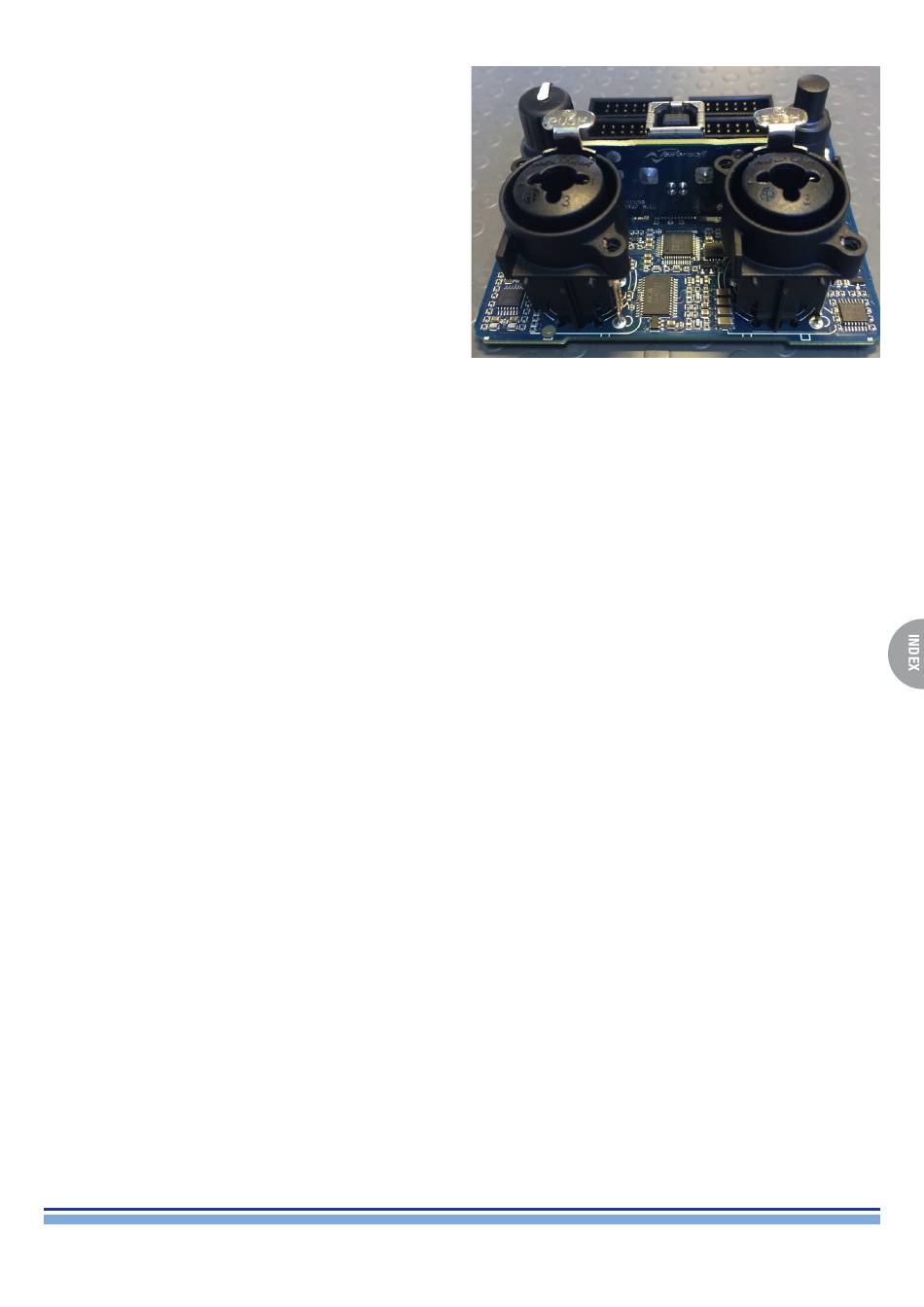

(Figure 11 - Modified DSP Lite)
