1.

Introduction

1.1

Features

• PIC16F15244 Microcontroller
• One Yellow User LED
• One Mechanical User Switch
• On-Board Debugger:
– Board identification in Microchip MPLAB
– One green power and status LED
– Programming and debugging
– Virtual serial port (CDC)
– One debug GPIO channel (DGI GPIO)
• USB Powered
• Adjustable Target Voltage:
– MIC5353 LDO regulator controlled by the on-board debugger
– 1.8–5.1V output voltage (limited by USB input voltage)
– 500 mA maximum output current (limited by ambient temperature and output voltage)
1.2

Board Overview

The Microchip PIC16F15244 Curiosity Nano Evaluation Kit is a hardware platform to evaluate the PIC16F15244
microcontroller.

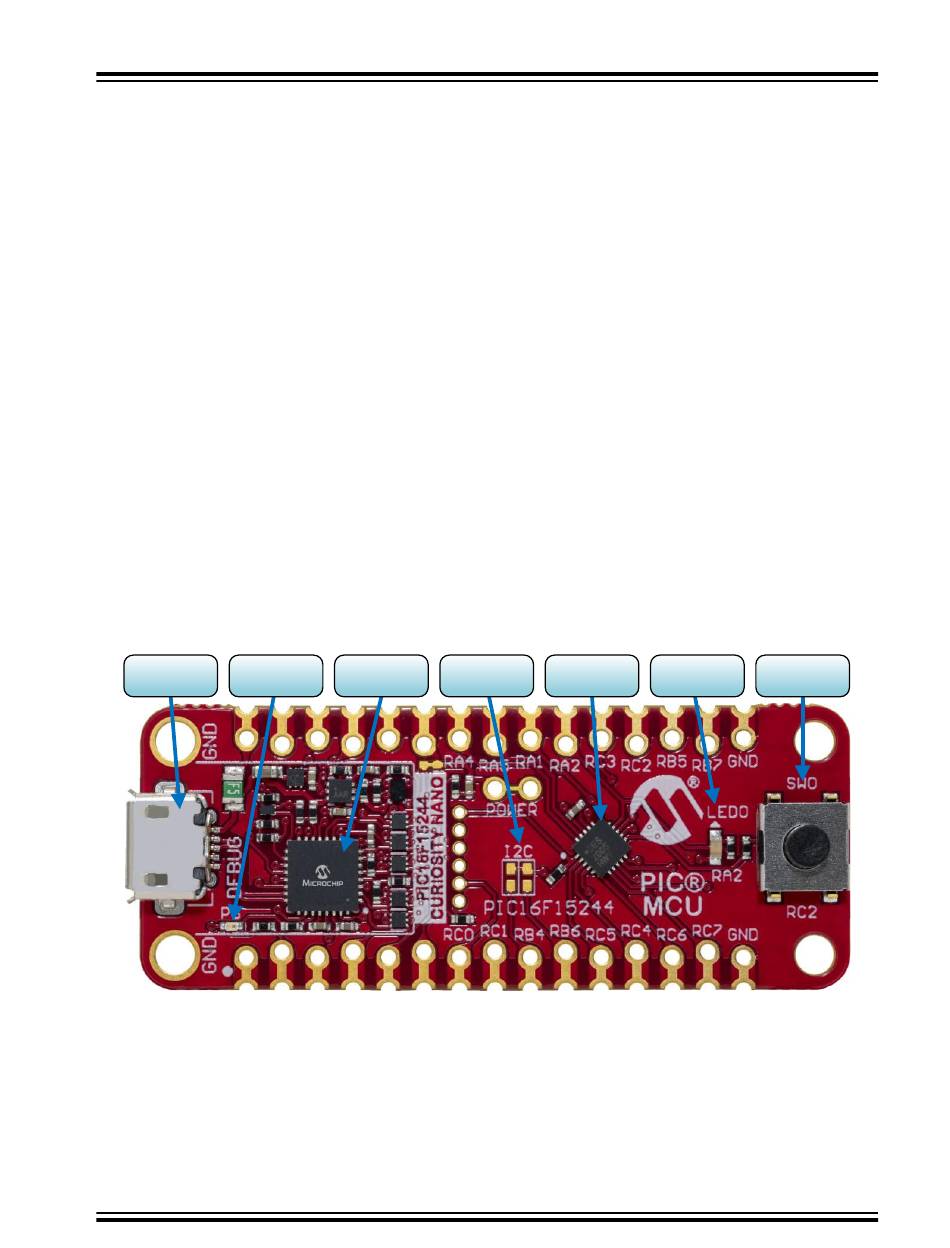

Figure 1-1. PIC16F15244 Curiosity Nano Board Overview
Micro USB
Connector
©
2020 Microchip Technology Inc.
Power/Status
Debugger
LED
PIC16F15244 Curiosity Nano
®
X IDE
Pads for I2C PIC16F15244
pullups MCU
User Guide
Introduction
User LED User Switch
(LED0) (SW0)
