Installation

INSTALLATION

Mechanical Installation

The Series 3050 BTU flow monitor can be either panel-mounted or wall-mounted .

Location

In any mounting arrangement, the primary concern is easy viewing and convenient operation of the keypad . The unit
generates very little heat, so no consideration need be given to cooling or ventilation . However, prolonged direct sunlight can
damage the front panel so some level of shading is recommended, especially if installed in a tropical climate .

Panel Mount Installation

The Series 3050 BTU flow monitor panel-mount model is designed for through-panel mounting, which allows access to the
back of the unit . The monitor is secured to the panel by two draw brackets shown in
monitor and panel cutout dimensions .
Page 6

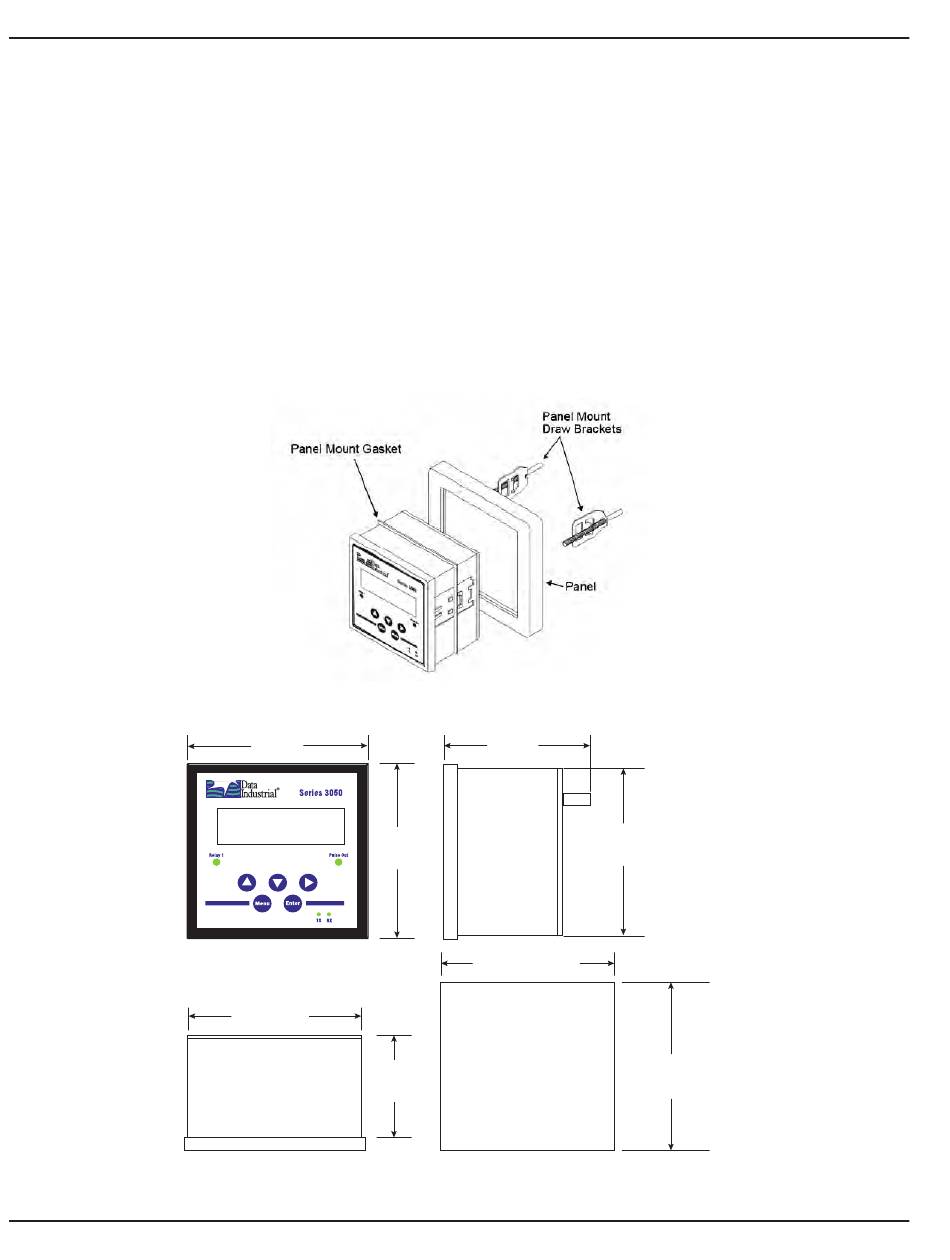

Figure 1: Panel mounting
3.78 in.
(96 mm)
5
3.78 in.
(96 mm)
3.49 in.
(88.7 mm)
2.21 in.
TOP
(56 mm)
Figure 2: Panel-mount dimensions and panel cutout
DSY-UM-01668-EN-02
Figure 1
3.23 in.
(82 mm)
3.49 in.
SIDE
(88.7 mm)
3.57...3.60 in.
(90.6...91.4 mm)
PANEL
3.57...3.60 in.
CUTOUT
(90.6...91.4 mm)
below . Also refer to Figure 2
June 2018
for
