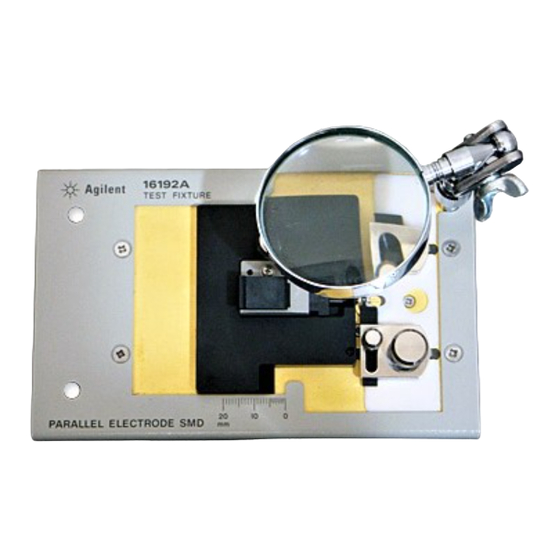

Keysight 16192A Parallel Electrode SMD
Test Fixture
Operation and
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16192A and is the answer not in the manual?

Questions and answers

Related Manuals for Keysight 16192A

Summary of Contents for Keysight 16192A

  • Page 1 Keysight 16192A Parallel Electrode SMD Test Fixture Operation and Service Manual...
  • Page 2 Keysight Declarations of Conformity for this 2.101, pursuant to FAR 12.211 and Technologies, Inc. as governed by product and for other Keysight prod- 27.404.2 and DFARS 227.7102, the United States and international ucts may be downloaded from the U.S.

  • Page 3: Table Of Contents

    Short Impedance Check........... 39 Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 4 Short Impedance Repeatability Check ........40 Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 5: General Information

    Keysight 16192A Parallel Electrode SMD Test Fixture Operation and Service Manual General Information Introduction The purpose of this manual is to enable you to use your 16192A Parallel Electrode SMD Test Fixture efficiently and confidently. Manual Summary This manual contains the following: •...

  • Page 6: Applicable Instruments

    General Information Applicable Instruments Applicable Instruments The 16192A has been designed to operate specifically with the following LCR meters and impedance analyzers: E4982A E4990A + 42942A E4991B E5061B- 3L3/3L4/3L5 + 16201A 1. Option E4990A-120 is required. 2. Option 005 is required.

  • Page 7: Accessories Supplied

    General Information Accessories Supplied Accessories Supplied The following accessories are supplied with the 16192A: Table 1-1 Furnished Accessories Description Part Number Quantity Operation and Service Manual Option ABA Option 701 P/N 16191-29001 P/N 16191-29002 P/N 16191-29003 P/N 16191-29004 Case for shorting devices...

  • Page 8: Specifications

    Specifications Specifications This section lists the complete 16192A specifications. These specifications are the performance standards and limits against which the 16192A is tested. When shipped from the factory, the 16192A meets the following specifications: Maximum DC Bias Vol tage ±42 V peak max (AC+DC) Operating Temperature –55 to +85 °C...

  • Page 9: Supplemental Performance Characteristics

    Add itional Error Repeatability (for inductive component) 30 + 250 × f [mΩ] (impedance of 30 mΩ, 40 pH) 2 + 30 × f [µS] (admittance of 2 µS, 5 fF) 1. f: frequency (GHz) Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 10: Residual Inductance Of The Shorting Bar

    0.2 nH P/N 16191-29002 0.45 3.5 mm 0.2 nH P/N 16191-29002 0.25 3.5 mm 0.2 nH P/N 16191-29002 7 mm 0.7 nH P/N 16191-29003 7 mm 0.6 nH P/N 16191-29004 7 mm 0.6 nH Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 11 Connector Inductance (Typical) P/N 16191-29005 0.75 3.5 mm 0.5 nH P/N 16191-29006 0.45 3.5 mm 0.4 nH P/N 16191-29007 7 mm 0.9 nH P/N 16191-29008 7 mm 0.8 nH Figure 1-2 Simulation Setup Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 12 General Information Residual Inductance of the Shorting Bar Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 13: Preparation For Use

    Keysight 16192A Parallel Electrode SMD Test Fixture Operation and Service Manual 2 Preparation for Use Introduction This chapter explains how to install the 16192A. The topics include the following: • Initial inspection. • Connecting the test fixture for use. •...
  • Page 14 1. Operation and Service Manual is not shown in Figure 2-1. 2. Contained if you ordered the 16192A Option 701. 3. The magnifying lens is packed separately from the 16192A body. Connect it as shown in Figure 2-1. 4. Contained if you ordered the 16192A Option 710.

  • Page 15: Adjusting The Configuration To Smd Size

    Preparation for Use Adjusting the Configuration to SMD Size Adjusting the Configuration to SMD Size The 16192A's applicable SMD size is 1 mm to 20 mm, changing the electrodes configuration as follows. Figure 2-2 Electrodes Configuration and SMD Size Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 16: Connecting The Test Fixture For Use

    ® 2. Place the fixture on the APC-7 ® connector. 3. Tighten (turn counterclockwise) the coupling nut of the APC-7 connector. ® Figure 2-3 Connecting the Test Fixture with APC-7 ® Connector Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 17: Repackaging The Test Fixture For Shipment

    Wrap the parallel electrode SMD test fixture in heavy paper and pack in anti-static plastic packing material. Use sufficient shock absorbing material on all sides of the 16192A to provide a thick, firm cushion and to prevent movement. Seal the shipping container securely and mark it FRAGILE.

  • Page 18: Measurement Error Correcting Function For Each Instrument

    E5061B-3L3/3L SHORT Electrical OPEN SHORT No capability 4/3L5 with LOAD Length Correction Correction 16201A LOW-LOSS Capacitor 1. According to demand for precise measurement. 2. Option E4990A-120 is required. 3. Option 005 is required. Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 19: Operation

    Perform the following steps when measuring the DUT: The 16192A has inherent stray capacitance, residual inductance, and residual resistance that affect the measurement. To compensate for these residuals and thus minimize their effect on measurement accuracy, the measurement instrument's OPEN and SHORT compensation capabilities must be used.
  • Page 20 To connect the DUT, see: Connect the device under test (DUT) How to Connect the DUT  Measurement 1. The compensating functions are different for each instrument. See Table 2-2 and per- form the listed functions. Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 21: Overview

    3-1) Used for short compensation. If you ordered the Option 010 or 701, four types of shorting devices are supplied with the 16192A. Use one that has dimensions similar to the DUT. When making a shorting device of same dimensions as your DUT, very low residual impedance and a high conductivity metal (that is not easily corroded) must be used to construct the shorting device.
  • Page 22 Operation Overview DO NOT look at the sun through the magnifying glass. DO NOT operate or leave the magnifying glass under direct sunlight. Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 23: How To Set The Short Condition, And The Open Condition

    The names of each part are listed above. 1. Loosen the three knobs. 2. Move stage A and the two device holders to 3. Adjust stage C so that the shorting device is the outside. placed on position Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 24 6. Tighten the two B knobs to fix the B stages Push the lever. Slide stage A while and the device holders. pushing the lever until the electrode on the stage A slightly contacts the shorting device. Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 25: Setting The Open Condition

    Setting the OPEN Condition 1. Set the DUT on the test fixture just as you 2. Push the black lever and remove the DUT. set the shorting device in the SHORT compensation. Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 26: How To Connect The Dut

    Operation How to Connect the DUT How to Connect the DUT 1. Push the lever and place the DUT on the 2. Release the lever to hold the DUT. electrode. Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 27: Service

    Keysight 16192A Parallel Electrode SMD Test Fixture Operation and Service Manual 4 Service Introduction This chapter explains how to install the 16192A. The topics include the following: • General Information • Assembly Replacement — Disassembly Procedure for main assembly — Replaceable Parts •...
  • Page 28 (not assigned) (not assigned) Main Assembly 16193-60002 16193-60002 Magnifying Glass 16192-09002 16192-09002 Insulator 8710-2081 8710-2081 Tweezers 16191-29001 16191-29001 Shorting Device (1×1×2.4 mm) 16191-29002 16191-29002 Shorting Device (1.6×2.4×2 mm) 16191-29003 16191-29003 Shorting Device (2.4×2.4×3.2 mm) Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 29: Assembly Replacement

    Width Positioning Stage Assembly Removal: 1. Loosen each Width Positioning Knob ("1" in Table 4-5). 2. Remove each Width Positioning Stage Assembly ("3" and "4" in Table 4-2). 3. Remove the Device Stage ("2" in Table 4-2). Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 30: Replaceable Parts

    RoHS support part backward incompatible with non-RoHS 16192A Parallel Electrode SMD Test Fixture. Special handling is needed while using the RoHS replacement part on non-RoHS 16192A. The original support part number is replaced by the respective “RoHS Compliant Replacement Part”. Once the original support part is depleted, please proceed to obtain the RoHS compliant support part..
  • Page 31 (not assigned) Length Positioning Stage Assembly 16192-09001 16192-09001 Device Stage (not assigned) (not assigned) Width Positioning Stage Assembly (not assigned) (not assigned) Width Positioning Stage Assembly (not assigned) (not assigned) Test Stage Assembly Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 32 Description Designator Number Replacement Part Number 16192-24006 16192-24006 Length Locking Knob 16192-20002 16192-20002 Length Positioning Stage Block 16192-23001 16192-23001 16192-01202 16192-01202 Contact 0515-2421 0515-5363 Screw M1.4L3 (not assigned) (not assigned) Insertion Clip Assembly Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 33 1. Not used in ROHS product model. Figure 4-4 Replaceable Parts for Insertion Clip Assembly Table 4-4 Replaceable Parts for Insertion Clip Assembly RoHS Reference Keysight Part Compliant Description Designator Number Replacement Part Number 0520-0133 Screw 0515-0661 Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 34 16092-40010 16092-40010 Holder 16092-40016 Holder 16092-40616 16092-40011 16092-01201 Lever 16092-23010 16092-23010 Shaft 1460-0352 1460-0352 Spring 1. Set change. Replace all of the associated parts marked with <1> as they are mutu- ally dependent. Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 35 Replacement Part Number 16192-24006 16192-24006 Width Positioning Knob 16192-24005 16192-24005 Device Holder Adjustment Knob 16192-24004 16192-24004 Holder 16192-25002 16192-25002 Device Holder L 16192-25003 16192-25003 Device Holder R 0515-0994 0515-1602 Screw Flat Head M2L6 Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 36 Table 4-6 Replaceable Parts for Test Stage Assembly RoHS Reference Keysight Part Compliant Description Designator Number Replacement Part Number 0515-0914 0515-1227 Screw Flat Head M3L6 16192-00201 16192-00201 Table 16192-00603 16192-00603 Plate 16192-01201 16192-01201 Angle Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 37 0515-2151 Screw Flat Head M2L4 1250-0907 1250-0907 Contact-RF Connector If your 16192A test fixture was manufactured earlier than 1996 and you need to replace either the plate (Figure 4-7: 3) or the contact assembly (Figure 4-7: 5), it will be necessary to buy replacements for both parts...

  • Page 38: Troubleshooting

    Analyzer. 3. Set the Impedance Analyzer as follows: Measurement Parameter Cp (parallel capacitance) Start Frequency 100 MHz Stop Frequency 1 GHz OSC Level 0.12 V Number of Point Point Averaging Factor Point Averaging Keysight 16192A Parallel Electrode SMD Test Fixture...

  • Page 39: Short Impedance Check

    The guideline of the short impedance value is as follows: Table 4-8 Short Impedance Value Guideline Parameter Frequency Guideline (Absolute Value) 100 MHz 4.5 nH ± 1.5 nH 1 GHz 4.5 nH ± 1.5 nH Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 40 Ls measurement value at each frequency. The guideline of the short impedance repeatability is as follows: Table 4-9 Short Impedance Repeatability Guideline Parameter Frequency Guideline (Difference) 100 MHz ± 45 pH 1 GHz ± 20 pH Keysight 16192A Parallel Electrode SMD Test Fixture...
  • Page 41 This information is subject to change without notice. © Keysight Technologies 1993 - 2019 Edition 8, August 26, 2019 *16192-90040* 16192-90040 www.keysight.com...
