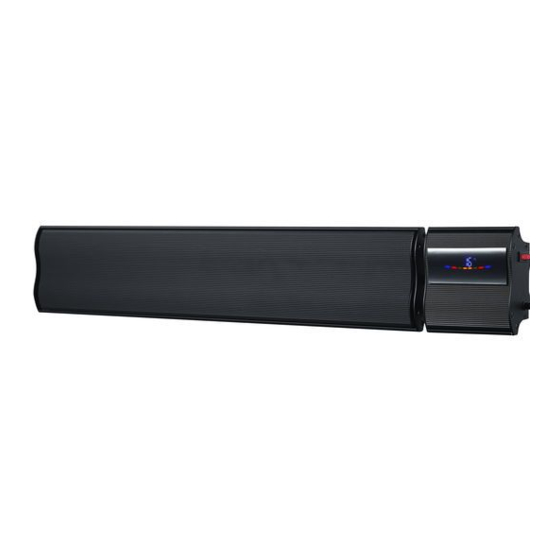

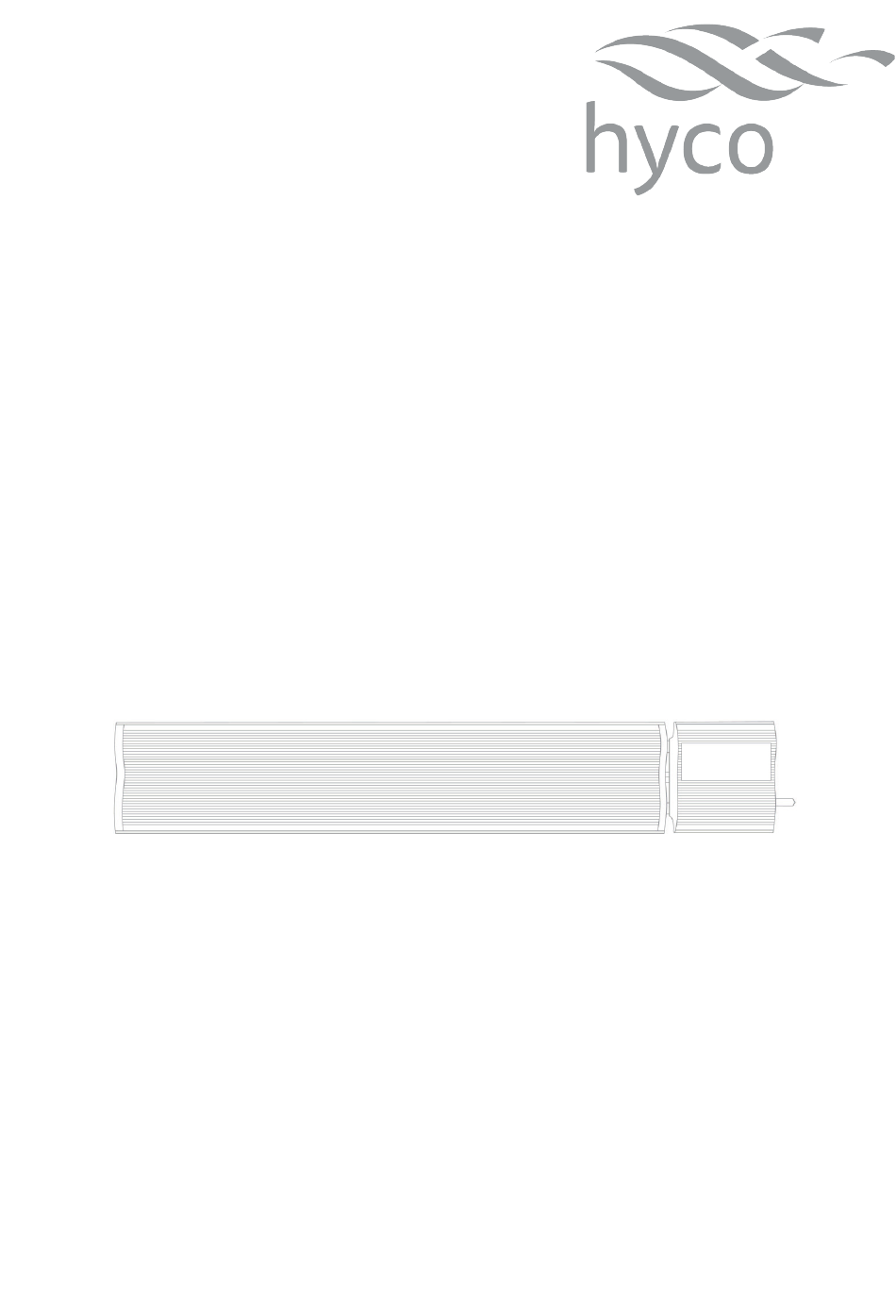

- Page 1 Product Instruction Manual Vicenza VC1200T, VC2400T No Glare Infrared Radiant Heater V19.10,1...
-
Page 2: Key Features
Overview Thank you for purchasing a Vicenza no glare infrared radiant heater. Suitable for a number of applications such as church halls, sports centres, conservatories, hospitality environments, warehouses and similar difficult to heat situations where convection heating would be impractical. This product is suitable for outdoor heating when under a canopy. -
Page 3: Box Contents
Do not use the heater with an extension cable. Do not attempt to adjust the heater position whilst it is in operation, first disconnect the power source and allow it to cool down. Children of less than 3 years should be kept away unless continuously supervised. - Page 4 3. Installation Wall Mounting Option Keep combustible materials such as furniture, curtains, paper and clothing a minimum of 1.8 m from all surfaces of the heater. • Select a suitable location for the install and ensure the minimum spaces around the heater are maintained to ensure good airflow and safe operation of the heater (see diagram 1).
- Page 5 • Drill two holes into the wall 85 mm apart from each other vertically as per diagram 3. Using the fixings provided attach one of the “W” horseshoe brackets to the wall, ensuring the tabs are facing outwards (see diagram 4). The bracket can be used as a template if required.
- Page 6 Ceiling Mounting Option Keep combustible materials such as furniture, curtains, paper and clothing a minimum of 1.8 m from all surfaces of the heater. • Select a suitable location for the install and ensure the minimum spaces around the heater are maintained to ensure good airflow and safe operation of the heater. The heater must be installed a minimum of 200 mm from the wall (see diagram 6).
-
Page 7: Electrical Connection
• Loosely screw the “H” brackets in place on the back of the unit using the wing nut bolts provided and with the help of a second person lift the unit up to the horseshoe brackets mounted on the ceiling to ensure they match. •... -
Page 8: Display Panel Overview
Display Panel Overview Actual room temperature & temperature/ timer setting indicator Lock indicator Power on full/ half power indicator Timer on indicator Element on indicator Turning the Heater On • Switch the heater on using the red manual switch located on the side of the heater. The actual room temperature is shown on the display panel. - Page 9 • Once the timer setting has been saved and the heater has returned to operational mode press the set button twice to bring up how long is left on the timer counting down every hour. • Each time the heater is switched off and on the timer will reset to zero and requires resetting.
-
Page 10: Maintenance
6. Maintenance The heater should be inspected and cleaned periodically. • Ensure the heater is isolated from the power supply and has fully cooled down before commencing any cleaning of the heater. • Use a non-abrasive, dry cloth to dust the heater as required. •... - Page 11 Item VC1200T VC2400T Type of heat input, for electrical storage local space heaters (select one) Manual heat charge control with integrated thermostat Manual heat charge control with room and/ or outdoor temperature feedback Electronic heat charge control with room and/ or outdoor temperature feedback Fan assisted heat output Type of heat output/ room temperature control (select one)
- Page 12 If you experience a problem with this product you should first contact our service department on 01924 225 200 before taking any further action. Experience has shown that issues can often be resolved without the need to return or uninstall the product. Hyco Manufacturing Ltd Normandy Court Express Way...
