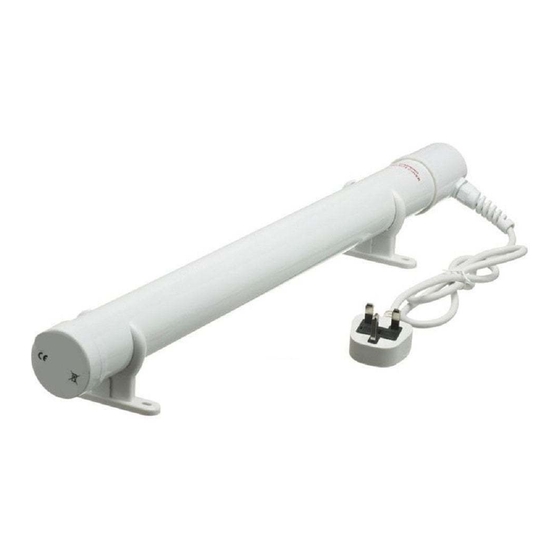

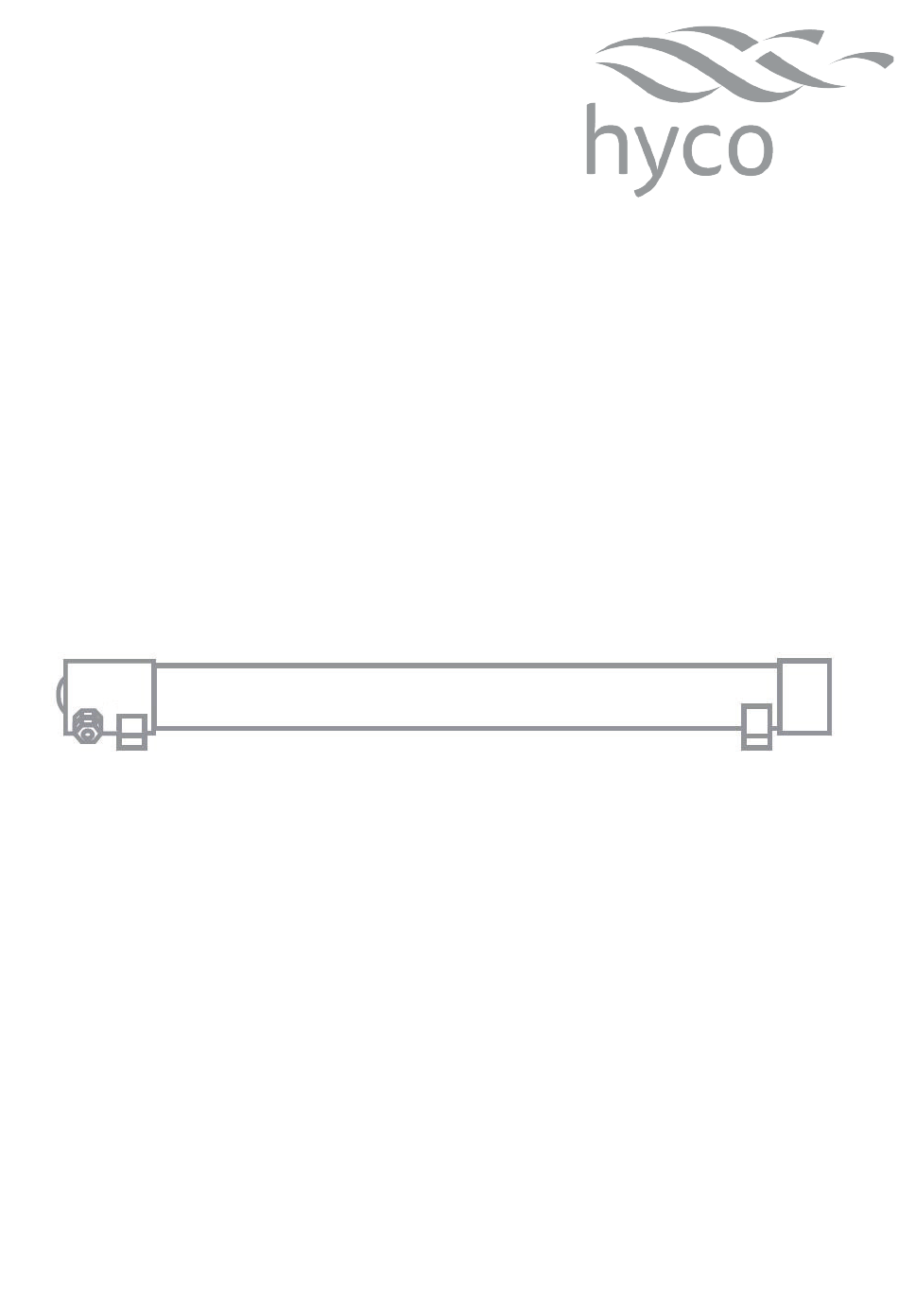

- Page 1 Product Instruction Manual Sahara TH01B, TH02B, TH03B, TH04B Tubular Heater v23.3.5...
-
Page 2: Important Safety Points
Overview Thank you for purchasing a Sahara Tubular heater. It will provide a low output, background source of heat to support frost protection in applications such as green houses, caravans, conservatories and work shops. Please read and follow these instructions to ensure that installation and operation are as simple and safe as possible. - Page 3 This appliance should only be installed and maintained by a competent person in accordance with any local electrical regulations. Only connect the appliance to an electrical supply that meets the specification detailed on the rating label. This appliance is not designed for outdoor use.
-
Page 4: Installation
1. Installation Ensure there are no hidden cables or pipework before commencing any drilling. The appliance is only intended for horizontal installation, fire risk exists if installed in any other orientation. To avoid overheating risk, ensure minimum clearances are observed when installing the appliance. -
Page 5: Electrical Connection
2. Electrical Connection This appliance must be earthed. • The appliance is supplied with a 1.3 m cable and prewired BSP fused plug. • If the appliance is to be connected directly to the fixed wiring of the property, ensure it is connected to the electrical supply via an appropriately rated isolating switch with a contact separation in all poles. -
Page 6: Cleaning And Maintenance
4. Cleaning and Maintenance Ensure any future maintenance or modifications to the appliance complies with the guidelines in these instructions. Keep records of maintenance and ensure any future occupier of the building is fully aware of the content of these instructions. Isolate the electrical supply before undertaking any maintenance work. -
Page 7: Specification
5. Specification Model TH01B TH02B TH03B TH04B Power 45 W 80 W 135 W 180 W Voltage 230 V 230 V 230 V 230 V IP rating IP55 IP55 IP55 IP55 Dimensions (h x w x d) 90 x 305 x 90 mm 90 x 610 x 90 mm 90 x 915 x 90 mm 90 x 1222 x 90 mm... -
Page 8: Guarantee And Service Policy
In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
