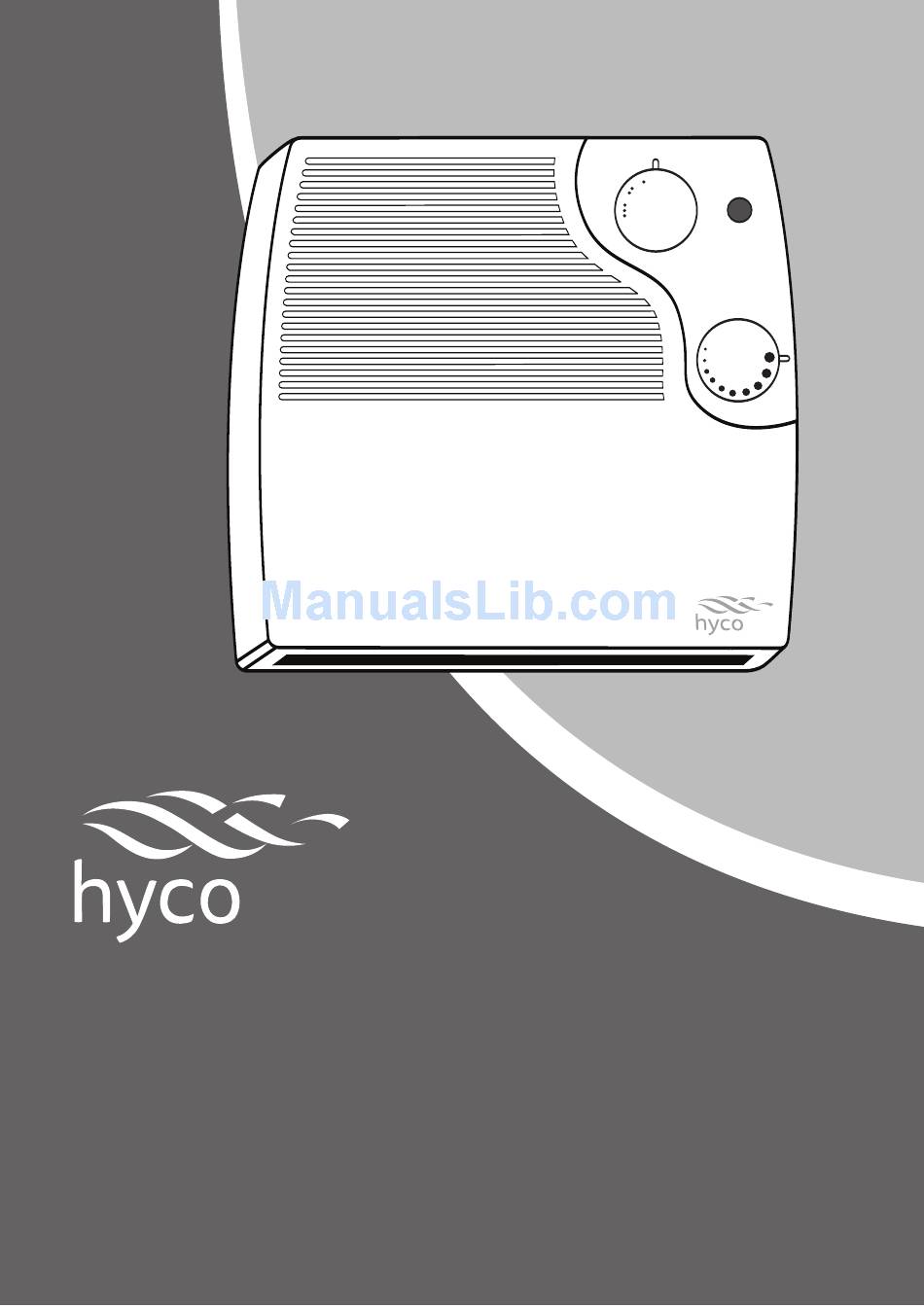

- Page 1 Arezzo 2kW Downflow Heater DF20LL Instruction Manual Version 1.0 October 2014...

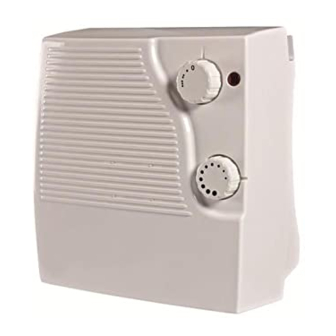

- Page 2 DF20LL 1. INTRODUCTION Thank you for purchasing the Hyco Arezzo downflow heater.The Arezzo heater is a thermostatically controlled wall mounted fan heater; it offers fan only operation as well as 1 & 2kW heat settings. It is the ideal solution for heating small rooms such...
-
Page 3: Important Safety Points
2. IMPORTANT SAFETY POINTS THE APPLIANCE MUST ONLY BE CONNECTED TO A SINGLE PHASE SUPPLY. THE PRODUCT SHOULD ONLY BE CONNECTED TO A SUPPLY THAT MEETS THE SPECIFICATIONS DETAILED ON THE RATING LABEL. ELECTRICAL INSTALLATION SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH THE LATEST EDITION OF THE IEE WIRING REGULATIONS. -
Page 4: Installation
3. INSTALLATION THE HEATER CAN BE MOUNTED IN BATHROOMS BUT MUST ADHERE TO THE LATEST BATHROOM ZONE FOR AN IP23 RATED ELECTRICAL APPLIANCE. THE HEATER MUST NOT BE LOCATED IMMEDIATELY BELOW A SOCKET. ONLY MOUNT THE UNIT VERTICALLY WITH THE OUTLET AT THE BOTTOM OF THE HEATER (AS SHOWN) THE HEATER MUST BE MOUNTED AT LEAST 1 METER AWAY FROM ANY COMBUSTIBLE MATERIALS SUCH AS FURNITURE, CURTAINS,... - Page 5 Mark, drill and insert the supplied wall plugs as shown in the diagram. 19cm 9.5cm 20cm 20cm WALL 2.3cm 1.8m HOLE FLOOR Insert the two lower screws leaving the head protruding approx. 5mm SCREW SCREW WALL WALL...
- Page 6 FLOOR Hang the heater via the two lugs on the back of the heater. SCREW 9.5cm WALL Using the supplied bracket, insert the final screw and tighten fully. This will hold the unit in place and would require removing before the heater can be taken down from the wall.
-
Page 7: Electrical Connection
4. ELECTRICAL CONNECTION THE PRODUCT SHOULD ONLY BE CONNECTED TO A SUPPLY THAT MEETS THE SPECIFICATIONS DETAILED ON THE RATING LABEL. CONNECTION TO THE FIXED WIRING OF THE PROPERTY SHOULD BE MADE BY MEANS OF A DOUBLE POLED SWITCH RATED FOR 13AMPS. DO NOT USE THE HEATER IN CONJUNCTION WITH ANY AUTOMATIC SWITCHING DEVICE SUCH AS A TIMER. -
Page 8: Operation
5. OPERATION DO NOT COVER HEATER DO NOT PLACE ANY COMBUSTIBLE MATERIALS SUCH AS FURNITURE, CURTAINS AND BEDDING WITHIN 1 METER OF THE HEATER. THE UNIT IS INTENDED AS A ROOM HEATER AND SHOULD NOT BE USED FOR ANY OTHER PURPOSE. The heater has 4 settings that can be selected using upper power selection knob 0 = Off •... -
Page 9: Cleaning And Maintenance
The heater should be examined for signs of physical damage at regular intervals, if any signs of damage or overheating are present on either the heater or the power cord; discontinue use of the heater immediately and contact an electrician or the Hyco technical line for further advice. -
Page 10: Troubleshooting
The unit has failed. Discontinue use and isolate the mains power supply before contacting an electrician or the Hyco technical line. The heater is blowing The auto-reset has Switch off the power cold air. operateddue to over supply to the unit heating. -
Page 11: Technical Data
This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Defects arising from incorrect installation are excluded. - Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court, Express Way Castleford,WF10 5NR Sales: 01924 225 200...
