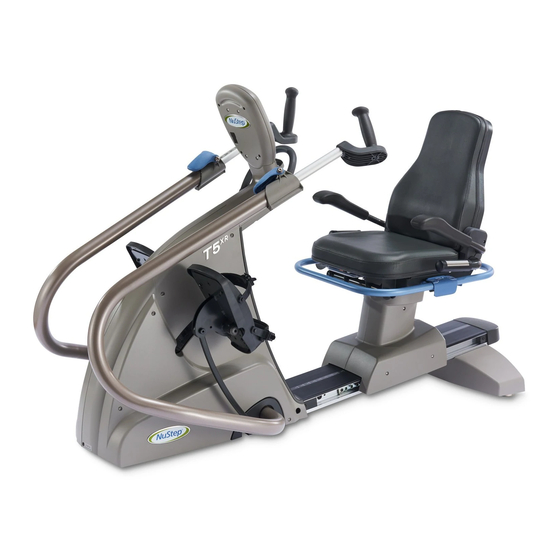

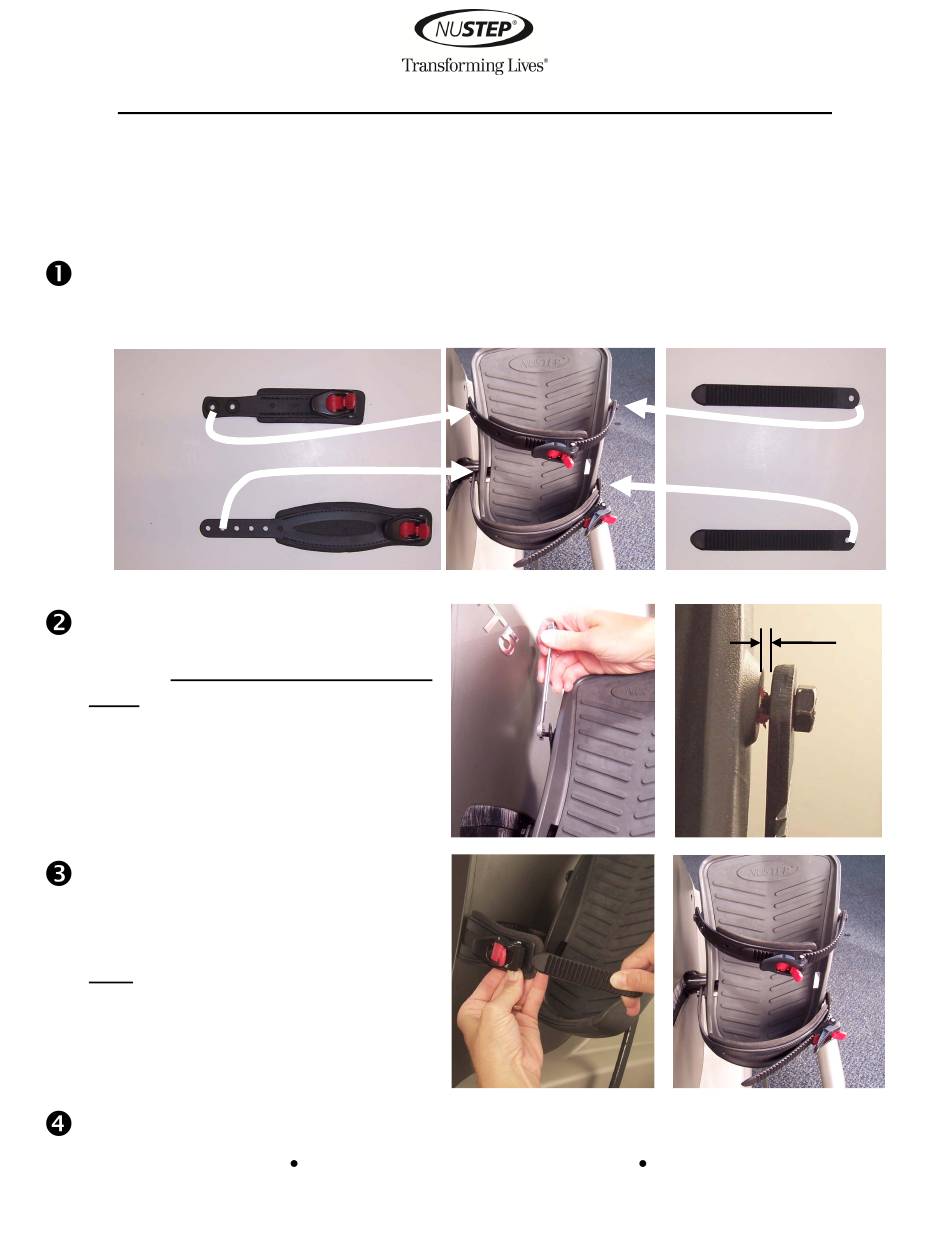

How to Install the Foot Secure System on a NuStep

Tools Required

10 mm wrench
Place hex bolt through 1
footpedal. Place hex bolt through 2
bottom hole of footpedal. Attach ladder straps to outside using hex bolts.
Buckle straps
Toe
Ankle
Tighten hex bolts with 10 mm
wrench-DO NOT OVERTIGHTEN!
Tighten only until hex bolt bottoms
out. All straps will be loose with a
slight gap. If over tightened, hex
bolt may damage the threaded
insert in the pedal.
Feed ladder strap end into buckle
strap end.
The completed assembly of the
right footpedal is shown far right.
Complete left footpedal with buckle straps on inside, ladders straps on outside.
NuStep, Inc.
Right foot pedal shown in instruction.

Accessory Kit Parts

(2) 50801 Assembly – Ankle Strap
(2) 50802 Assembly – Toe Strap
(8) 51455 Bolt-Hex, M6x1x12
st
hole to attach toe buckle strap to inside top hole of
nd
hole to attach ankle buckle strap to inside
5111 Venture Drive, Ann Arbor MI 48108 USA
53516 Foot Secure System Instruction, Rev C
®
XR
T5 / T5
Ladder straps
800-322-4434
Gap
