Part Three - Cut Out - LX Navigation Iris Series Installation Manual

Table of Contents

Document Name:

Installation manual

PART THREE – CUT OUT

10k, Era, Horizon, Traffic Monitor and iris series

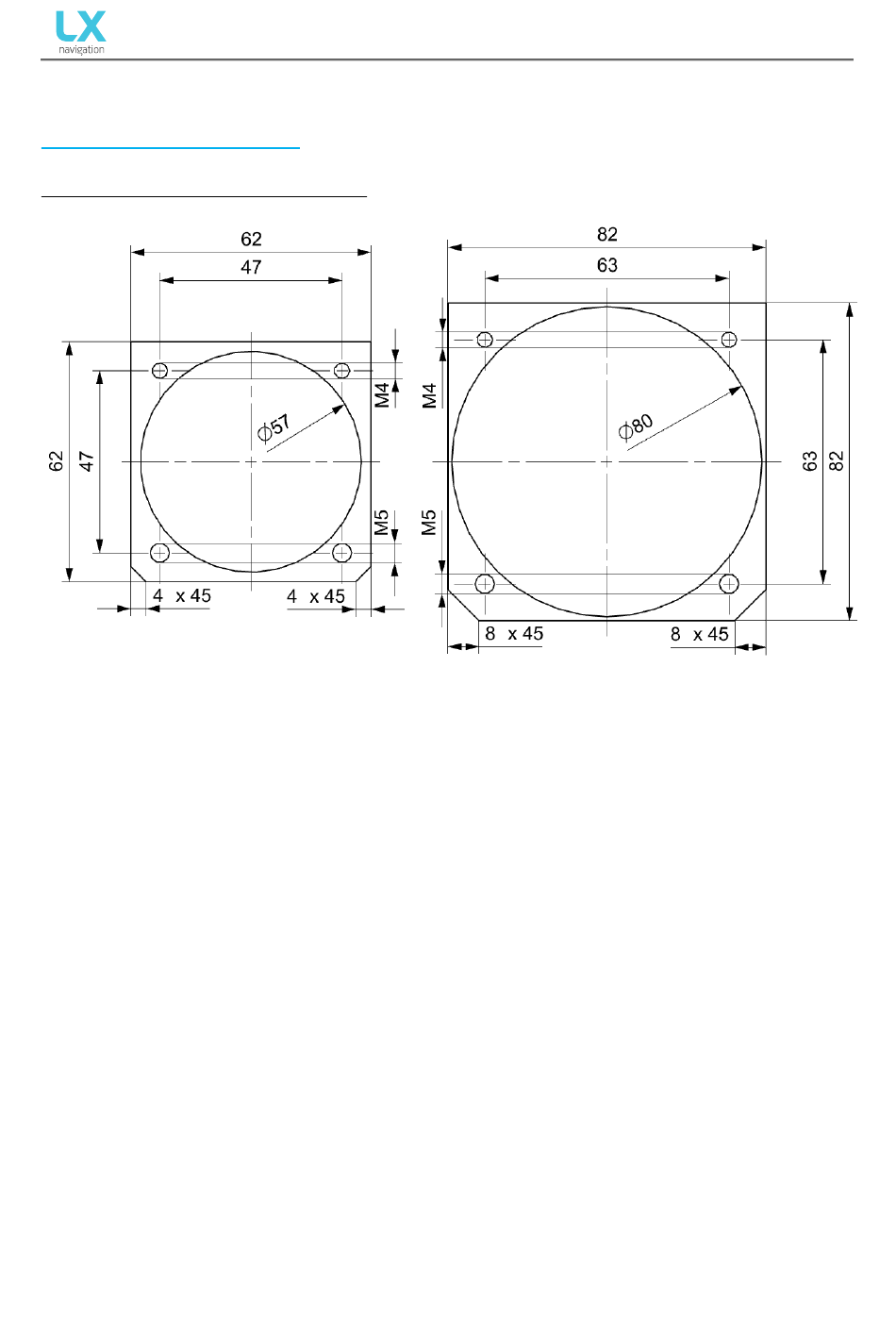

Note that both units are in landscape orientation, meaning the push-rotary knobs are in the bottom two M5

holes.

Version: All
