IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

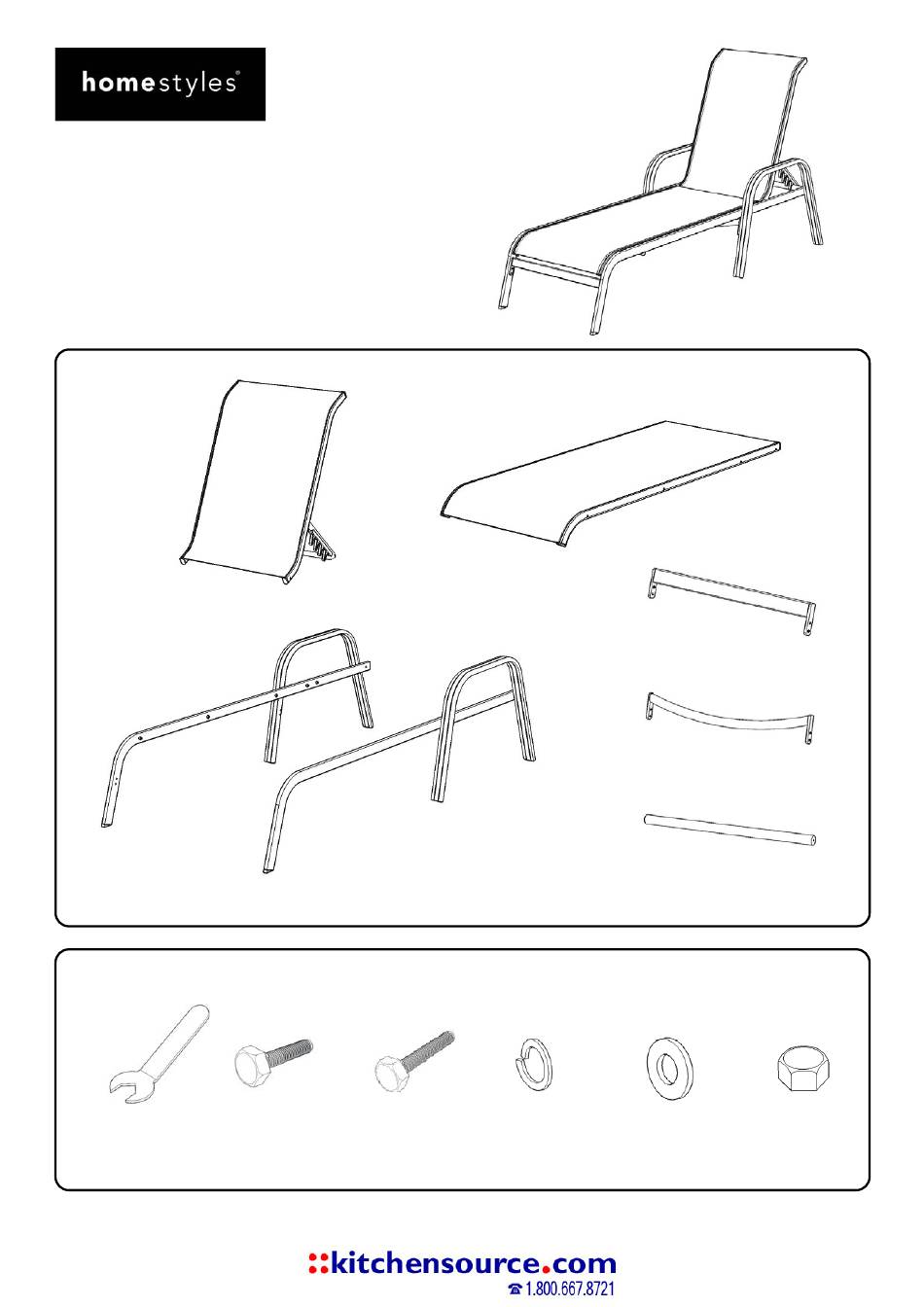

Part List
A.
Back
1 pc.
C.
Side Frame
1 pc.
Hardware List
M6x18
Bolt (short)
Key Hex Wrench
8 pcs. (+1 extra)
1 pc.
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5702 83

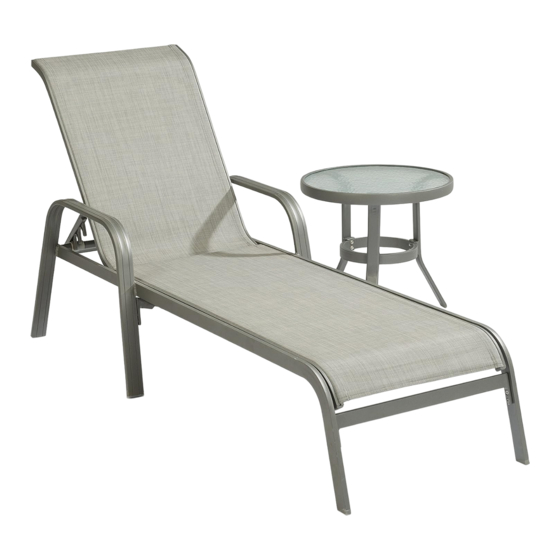

Chaise
B.
Seat
1 pc.
D.
Side Frame
1 pc.
M6x38
Bolt
12 pcs. (+1 extra)
E.
Stretcher
1 pc.
F.
Stretcher
1 pc.
G.
Stretcher
1 pc.
Spring Washer
Flat Washer
18 pcs. (+1 extra)
18 pcs. (+1 extra)
888-680-7460, 877-831-0319
Nut Cap
20 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles Chaise 88 5702 83
Summary of Contents for Homestyles Chaise 88 5702 83
- Page 1 Flat Washer Nut Cap Bolt (short) Bolt Key Hex Wrench 18 pcs. (+1 extra) 18 pcs. (+1 extra) 20 pcs. (+1 extra) 8 pcs. (+1 extra) 12 pcs. (+1 extra) 1 pc. Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench and Key Hex Wrench in a safe place as the bolts may need to be tightened up in the future.
- Page 3 Assembly Instructions 3/3 STEP 3 Attach Side Frame (D) to unit with Flat Washers, Spring Washers, Bolts (short) and Bolts, tightening the bolts only half way. Spring Washer Flat Washer Bolt Flat Washer Spring Washer Bolt Flat Washer Spring Washer Bolt (short) STEP 4 Turn unit to its’...
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
