IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

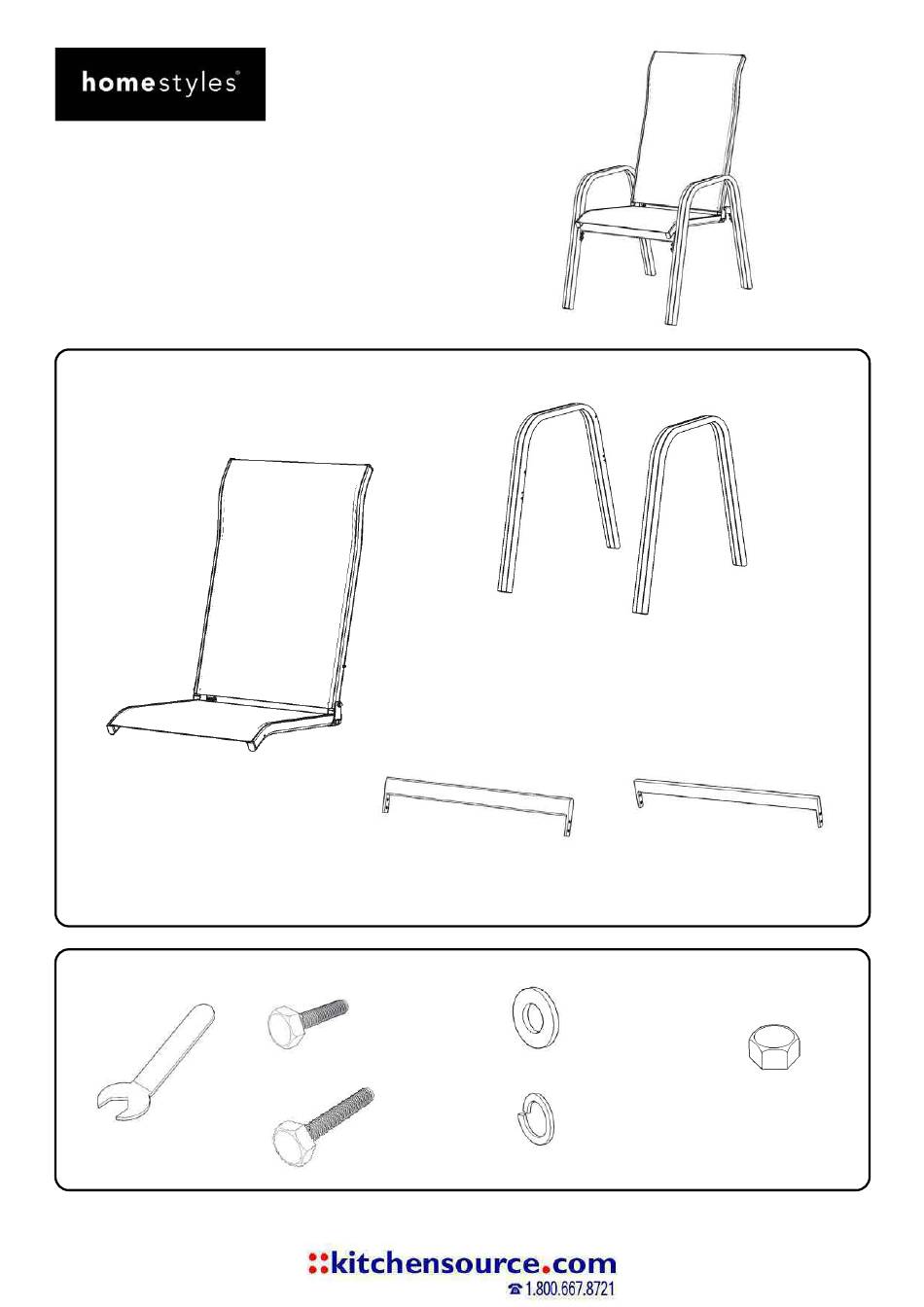

Part List
A.
Seat
1 pc.
Hardware List
Key Hex Wrench
1 pc.
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5700 81

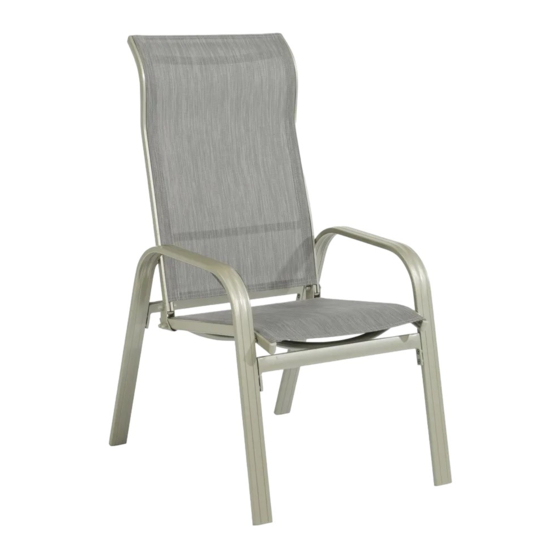

Arm Chair
D.
Front Stretcher
1 pc.
M6x15
Bolt (short)
8 pcs. (+1 extra)
M6x40
Bolt (long)
4 pcs. (+1 extra)
B.
C.
Frame
Frame
1 pc.
1 pc.
Flat Washer
12 pcs. (+1 extra)
Spring Washer
12 pcs. (+1 extra)
888-680-7460, 877-831-0319
E.
Back Stretcher
1 pc.
Nut Cap
18 pcs. (+1 extra)
Advertisement
Table of Contents
Related Manuals for Homestyles 88 5700 81
Summary of Contents for Homestyles 88 5700 81
- Page 1 8 pcs. (+1 extra) 12 pcs. (+1 extra) Nut Cap 18 pcs. (+1 extra) M6x40 Spring Washer Bolt (long) Key Hex Wrench 12 pcs. (+1 extra) 4 pcs. (+1 extra) 1 pc. Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Key Wrench in a safe place as the bolts may need to be tightened up in the future.
- Page 3 Assembly Instructions 3/3 STEP 3 Attach Frame (C) to unit with Flat Washers, Spring Washers, Bolts (short) and Bolts (long), tightening all bolts only half way. Tighten all Bolts used in all steps. Flat Washer Spring Washer Bolt (short) Flat Washer Spring Washer Bolt (long) STEP 4...
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
