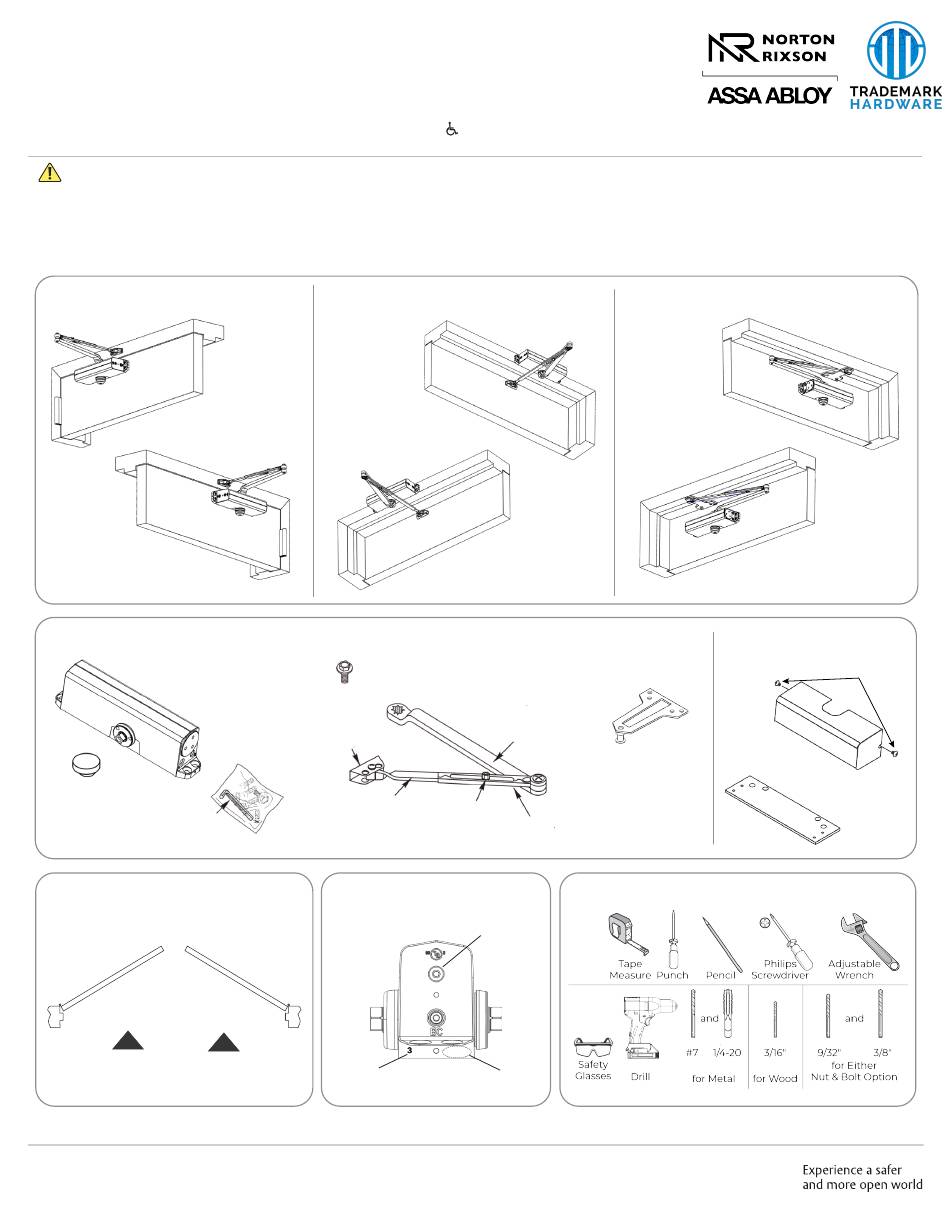

Assa Abloy NORTON RIXSON 1601 Installation Instructions Manual

1600 Series Non-Handed Door Closer
Arm Models 1601, 1603BC, and 1604BC
Installation Instructions
Non-hold Open arm models, adjustable size 1-6 (model 1601
size 3 & 4 (models 1603BC and 1604BC).
WARNING
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm.
For more information go to: www.P65warnings.ca.gov.
Regular Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Included Components
Closer
Pinion Cap
1/8" Hex Wrench
Screw Pack
(Refer to page 2 for a list of contents)
To Determine Your Hand of Door:
Right Hand
Reverse
LEFT RIGHT
HAND HAND
DOOR DOOR
Copyright © 2019, 2020, 2022, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9316-2531-020 Rev 5 02/23
Top Jamb Mount
Right Hand Door - RH
Left Hand Reverse - LHR
Main Arm
Pinion Screw
Regular Arm/
Top Jamb Shoe
Connecting Rod Forearm
To Identify Your Model:
Left Hand
Reverse
Size
1-6 = 1601
Code
3 = 1603BC
4 = 1604BC
Approved 2023-02-23
) and
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
Left Hand Door - LH
Right Hand Reverse - RHR
Arm Assembly
Main Arm
1618A Parallel
Arm Bracket
(Used with
Parallel Arm
Installation Only)
Screw
Arm Slide
Tools Needed:
Spring Power
Adjustment
(1601 ONLY)
Date
Code
Parallel Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Components
1600P
Cover
1688
Plate
6-32 x 5/16" Pan Head
Self Tapping Screw
