Installation and mounting manuals for EK-FB RE2 Ver.2 water block:
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
The barb hose fittings require only a small amount of force to screw them in; otherwise the high flow fittings might break. These fittings do not need to be tightened with much force because the
liquid seal is made using o-rings.

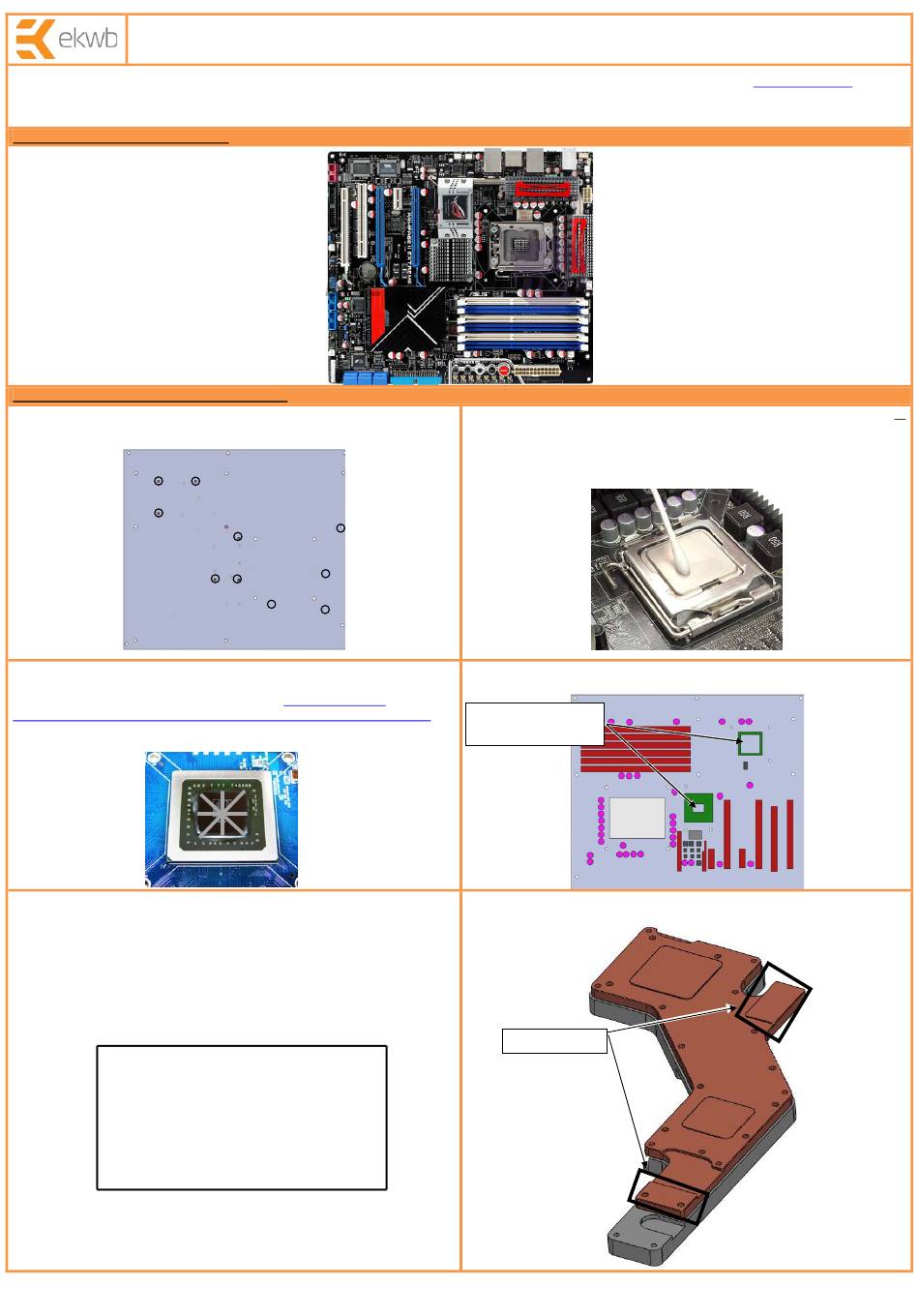

STEP 1: GENERAL INFORMATION. Sample picture of ASUS RAMPAGE EXTREME II motherboard.
STEP 2: PREPARING YOUR MOTHERBOARD
1. REMOVING STOCK COOLER. Remove all encircled screws or plugs. All heat sink
assembly screws should be removed. There are 10 screws on the back of the
motherboard.
3. APPLYING THERMAL COMPOUND
Apply thermal compound: lightly coat the Southbridge with for example
Céramique™ thermal compound. Follow this link
cooling.com/catalog/product_info.php?cPath=39_&mID=127&language=en
detailed instructions. EKWB recommends non-conductive MX-2, which should
be applied in cross form for best performance (see sample picture).
4. CUTTING THERMAL PADS. Your block comes with thermal pads, which have
to be placed on chips. (PLEASE REMOVE FOIL OF THERMAL PADS PRIOR TO
INSTALLATION.WARNING DIMENSIONS BELLOW ARE SCALED!)
Thermal pad 40X20 (thickness 1,5mm).
http://www.arctic-
for
2. CLEANING THE PCB. Carefully detach the original heat sink after removing all
fasteners securing it to the board and bracket. Wipe off the remains (by using non–
abrasive cloth or qtip, as shown on sample photo) of the original thermal compound
until the components and circuit board are completely clean. EKWB does not
recommend using any liquids for removing paste.
3.a. APPLYING THERMAL COMPOUND.
Apply thermal
compound here.
5. PLACING THERMAL PADS. Cut thermal pad in two adequate sizes in order to
cover two marked areas.
Themal pads
www.ekwaterblocks.com
th
Released on 11
of November, 2009.
for updates.
Advertisement
Table of Contents
Related Manuals for ekwb EK-FB RE2
Summary of Contents for ekwb EK-FB RE2
- Page 1 Wipe off the remains (by using non– motherboard. abrasive cloth or qtip, as shown on sample photo) of the original thermal compound until the components and circuit board are completely clean. EKWB does not recommend using any liquids for removing paste. 3. APPLYING THERMAL COMPOUND 3.a.
- Page 2 Make sure orientation of parts is same as on picture bellow. Screw in fittings, attach the liquid cooling tubes and connect the water-block(s) into the cooling circuit. The EK-FB RE2 series are usually sold with high flow fittings. To ensure that the tubes are securely attached to the barb fittings, please use hose clamps or an appropriate substitute.
