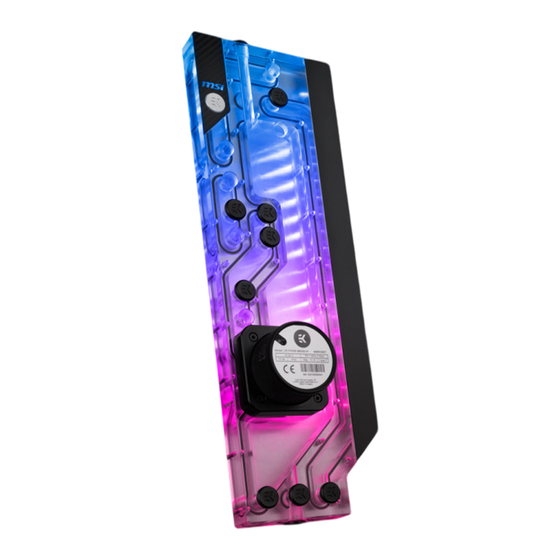

ekwb EK-Quantum Reflection2 MEG Prospect 700R D-RGB - Plexi User Manual
Distribution plate
Hide thumbs
Also See for EK-Quantum Reflection2 MEG Prospect 700R D-RGB - Plexi:
- User manual (15 pages) ,
- User manual (16 pages) ,
- User manual (17 pages)
Related Manuals for ekwb EK-Quantum Reflection2 MEG Prospect 700R D-RGB - Plexi
Summary of Contents for ekwb EK-Quantum Reflection2 MEG Prospect 700R D-RGB - Plexi
- Page 1 EK-Quantum Reflection MEG Prospect 700R D-RGB – Plexi DISTRIBUTION PLATE USER GUIDE...
- Page 2 The EK Fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system. EKWB recommends any of the EKCryofuel for worry-free usage.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS DISTRIBUTION PLATE DIMENSIONS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS PREPARING THE MEG PROSPECT 700R CASE INSTALLATION OF “EK-Quantum Reflection MEG Prospect 700R D-RGB – Plexi” DISTRIBUTION PLATE INTO CHASSIS RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS FLOW DIAGRAM CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE... -
Page 4: Box Contents
BOX CONTENTS Mounting mechanism Reflection2 MEG Prospect 700R EAN: 106447 EK-Loop Multi Allen Key (1 pc) Screw M4 x 10 DIN7984 (6 pcs) Metal Washer M4 x 0.8 (6 pcs) Allen Key 2.5 mm (1 pc) EK-Quantum Reflection MEG Prospect 700R D-RGB - Plexi, EAN: 3831109859797 Allen Key 2 mm (1 pc) - 4 -... -
Page 5: Distribution Plate Dimensions
DISTRIBUTION PLATE DIMENSIONS 45.5 mm 130 mm 71.3 mm 19 mm 71 mm 26.8 mm 45.5 mm 17.5 mm 30.3 mm 45.5 mm 72.6 mm 73.5 mm - 5 -... -
Page 6: Technical Specifications And Product Parts
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS Technical Specification: Dimensions with the attached pump (W x D x H): 416 x 130 x 72.6 mm – D-RGB LED count: 19 – D-RGB cable length: 500 mm – D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position Description Quantity... -
Page 7: Preparing The Meg Prospect 700R Case
PREPARING THE MEG PROSPECT 700R CASE STEP 1 Remove the front and back panel of your MEG PROSPECT 700R case. STEP 1 STEP 2 Remove the back cable cover panel, the bottom storage shroud and front bracket with fans. If there are any additional fans or brackets blocking insertion of the distribution plate, we suggest you remove those as well. -
Page 8: Installation Of "Ek-Quantum Reflection 2 Meg Prospect 700R D-Rgb - Plexi" Distribution Plate Into Chassis
INSTALLATION OF “EK-Quantum Reflection MEG Prospect 700R D-RGB – Plexi” DISTRIBUTION PLATE INTO CHASSIS STEP 1 Place the “EK-Quantum Reflection MEG Prospect 700R D-RGB – Plexi “distribution plate as high as possible on the bracket and loosely tighten the screws so you can still barely move the distribution plate. M4 x 10 DIN7984 Bracket and distribution plate must be aligned as seen in STEP 1 (5x) - Page 9 STEP 3 Matrix7 compliance: When you have secured the “EK-Quantum Reflection Prospect 700R D-RGB – Plexi” distribution plate inside the case, align it with your GPU water block and CPU water block ports for Matrix7 compliance and tighten the loose screws from STEP 1 on the back side of the distribution plate bracket.
-
Page 10: Recommended Distribution Plate Configurations
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS Note that the top or front radiator is completely optional and a USING BOTH RADIATORS closed loop without either one can be completed. TOP RADIATOR INLET To complete your loop, all ports must be used as marked in the image. - Page 11 USING TOP OR FRONT RADIATOR BACK SIDE OF DISTRIBUTION PLATE TOP or FRONT DESIGNATED RADIATOR INLET FILL PORT TOP or FRONT RADIATOR OUTLET ONLY use this passage if you are using both Radiators CPU OUTLET CPU INLET GPU OUTLET GPU INLET TOP or FRONT DESIGNATED RADIATOR...
-
Page 12: Flow Diagram
FLOW DIAGRAM Example of flow using FRONT and TOP Radiator. We recommend using the green flow (right most passage) only with two Radiators. Coolant flow in this passage isn’t possible unless you are using both TOP and BOTTOM port of the passage. - 12 -... -
Page 13: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. D-RGB Header RGB Header CONNECTING THE PUMP... -
Page 14: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 15: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
