jablotron JA-150A II User Manual

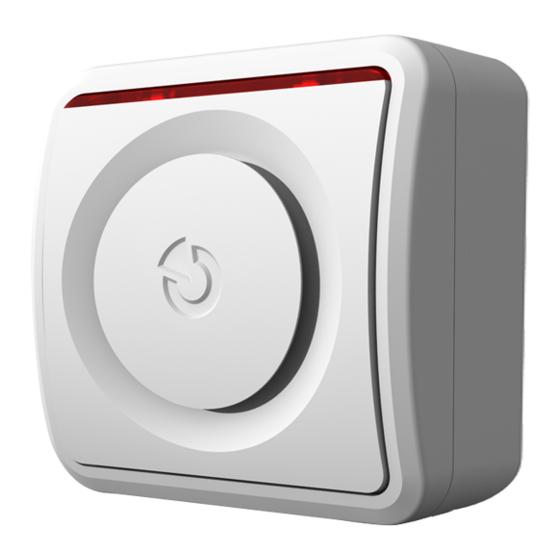

The JA-150A II siren is a component of the JABLOTRON 100+
system. It is used for alarm indication inside a building with
the possibility to distinguish between types of alarm with different types
of indications. It can also be used for other acoustic indications (PG
outputs, entry/exit delays, a doorbell). Pressing a button on the siren
can silence the alarm indication in progress (which can also confirm
somebody's presence on the premises or trigger a panic alarm (optional
function). The siren is equipped with a backup battery for cases when
AC dropouts occur. The siren takes one position in the system and
should be installed by a trained technician with a valid certificate issued
by an authorized distributor.

Installation

The siren can be installed directly on a plaster wall or into a special
enclosure. The siren contains front and rear tamper contacts.

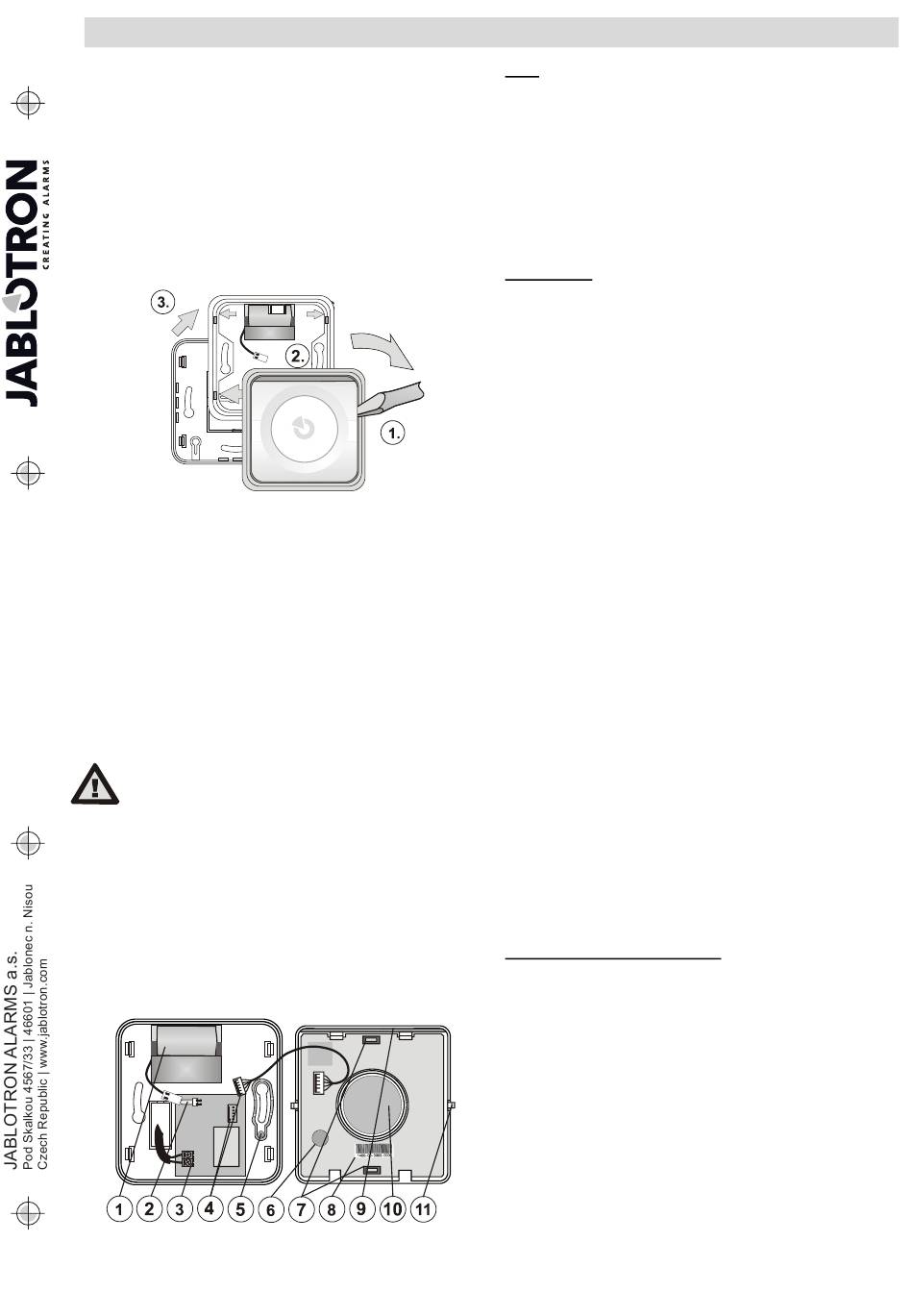

Figure 1: Disassembly of the siren before installation
1. Remove the body (buttons) of the siren from the plastic frame
by pressing on a side of the body (1.) using a screwdriver as shown
in figure 1.
2. Remove the middle part of the frame (3.) by pushing the 4 tabs
indicated by arrows (2.)
3. Push the power cable through a designated rectangular recess
in the plastic base.
4. Attach the plastic base to the selected place using screws. Place
the BAT-3V2-CR2 battery underneath the top side of the plastic base
as shown in figure 1.
5. Connect the power supply cable to the terminals following figure 2 (3),
connect the battery (2) to the PCB placed on the plastic base (2).
6. Assemble the plastic frame with the plastic base which will fix
the battery in position.
The siren power supply can only be installed
by a person with an adequate electro-
technical qualification.
WARNING: This device is directly connected
to mains electricity
7. Connect the body (buttons) to a connector (4) and assemble
it with the plastic frame. Attention, the tamper sensor (6) must
be positioned above the magnet (5) on the plastic base.
8. Proceed by following the control panel installation manual. Basic
instructions:
a. When the power supply is connected, the yellow LED (1) starts
flashing to indicate the siren has not yet been enrolled into the system.
b. Open the F-Link software,
in the Devices tab and click on the Enroll button to launch
the enrollment mode.
c.
Press one of the siren buttons (at the top or at the bottom) –
the siren is now enrolled and the yellow LED indicator switches off.
Figure 2: 1 – battery; 2 – battery connector; 3 – 230V AC mains power
terminal; 4 – Siren to PCB connector; 5 – tamper magnet; 6 – tamper sensor;
7 – internal buttons; 8 – production number; 9 – LED indicator;
10 – piezo-electric siren; 11 – tabs
The Ja-150A Ii Internal Wireless Siren
The JA-150A II Internal wireless siren
select an unused
Notes:
− The enrollment of the siren to the control panel is also possible
by entering the production code via the F-Link software.
The production code is on a sticker with a bar code which is glued
onto the rear side of the siren or onto the PCB (8). All digits
of the production number are required (example: 1400-00-0000-
0001).
− If you want to remove the siren from the system, erase it from its
position in the F-Link software.
Open the F-Link software, go to the Devices tab. Click on the Internal
settings option at the siren's position to open a dialog window where
you can set the following options: (* indicates default settings).
The Setting tab:
Acoustic indication of an intrusion alarm from sections: The selection
of sections which should indicate an intrusion alarm via the siren. The default
setting is the indication of an intrusion from all sections.
Reaction: Determines whether the siren should indicate IW* (internal
warning) or EW (external warning) signals. Alarm indication with this siren
can also be completely disabled (other functions remain active).
Siren sound: Intermittent*, Continuous
Maximum siren time: 1, 2, 3*, 4, 5 minutes and OFF – if the OFF option
is selected then the acoustic indication corresponds with the Alarm length
parameter in the F-Link Parameters tab.
Different fire alarm indication: YES/NO* - Determines whether the siren
will differentiate between acoustic indications of fire and standard alarms.
The indication of an acoustic fire alarm is identical to smoke detectors with
internal sirens – fast beeping.
Other acoustic indication from sections: Selection determines which
sections will indicate other types of alarm via the detector. Indication for
all sections is enabled by default.
When controlled by a section: YES / NO* - If enabled, the siren beeps
1x after setting, 2x after unsetting and 3x times when unsetting after
an alarm. It only does so for selected sections.
During warning: YES / NO* - when enabled, the siren reacts with three
beeps to the inability to set the system, unsuccessful setting and
unsetting with an active alarm memory.
Entry delay: YES / NO* - if enabled, the siren indicates the entrance
delays of the selected sections.
Exit delay when partially set: YES / NO* if enabled, the siren indicates
the exit delays of the selected sections when the system is set partially.
This option is available only when the entrance delay of fully set
sections is enabled.
Exit delay when fully set: YES / NO* if enabled, the siren indicates
the exit delays of the fully set selected section.
Level of volume of supplementary acoustic indication: Standard*,
Increased, By button, Programmable – Applies only to other acoustic
indication and the acoustic indication of PG outputs. It has no influence
on the volume of alarm indication. If the "By button" option is selected,
the volume can be changed by a user by pressing the lower part
of the siren for 3 seconds (when the system is out of Service mode) –
the change of volume is confirmed by a beep and in the volume
of the new selected volume.
The "Programmable" option displays time sliders which set a period
of time to switch between the standard and increased loudness during
the day.
The Signalling PG tab:
position
LED indicates sounding PG output: If enabled, acoustic indication
is triggered by an active PG output is continuously indicated by LED.
Sound indication can be set for each PG output:
Slow beeping - beeps 1x per second (as long as the PG output
is active).
Quick beeping – beeps 2x per second (as long as the PG output
is active).
1x ON/2x OFF – beeps 1x when the PG is activated, beeps 2x when
the PG is deactivated.
20 sec of beeping – beeps continuously for 20 secs when a PG output
is activated.
Melodies 1 to 4 – available doorbell melodies
System reaction to pressing
By default, pressing the siren button during an alarm mutes the siren
and concurrently confirms a person's presence in the building
(the control panel sends a report). It is possible to change the siren
button settings in the Devices window of the F-Link software to trigger
a different reaction, for example a Panic alarm.
1 / 2

Setting properties

a siren button
