jablotron JA-152KRY Installation Manual

Control panel type:CU2201MD
Caution:
1. The JABLOTRON Mercury alarm system is only intended to be installed by a trained technician with a valid certificate issued by an authorized
Jablotron distributor.
2. JABLOTRON Mercury control panels are configured using the MyCOMPANY mobile application. The credentials are given to the Jablotron
Installation Partner upon successful completion of the certification training.
3. JABLOTRON Mercury control panels are equipped with integrated connectivity via a specific SIM card - do not remove or replace the SIM card.
4. The JABLOTRON Mercury Alarm requires a regular monthly payment for JDS (Jablotron Digital Service) service. The payment method depends
on the country where the system is installed. If the service is not paid for, full system functionality will be restricted. The system will remain fully
operational (locally), but the ability to control it via MyJABLOTRON and configure it via MyCOMPANY will be suspended. The user will be informed
of this impending restriction in advance by email to the address provided when registering the system.
5. The overview of supported devices, see Appendix no.1.
1. The control panel basic description
1.1. Description of the control panel

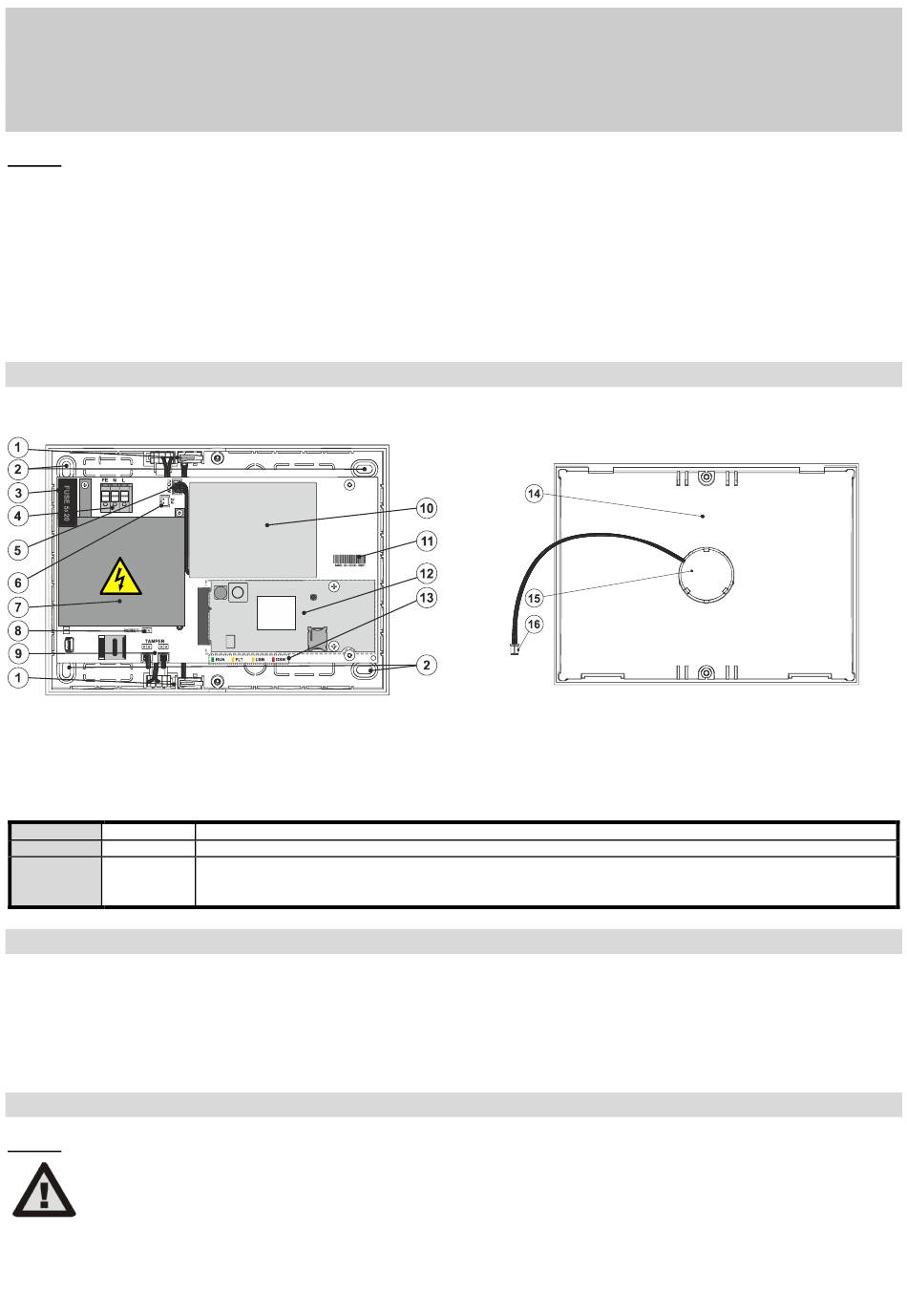

Fig.1 control panel box: 1 – tamper contact of the box; 2 – holes for mounting
the box on the wall; 3 – fuse; 4 – mains power supply terminal; 5 – backup battery
connector; 6 – acoustic indicator connector; 7 – power supply cover; 8 – RESET
jumper, 9 – control panel box tamper contacts connectors; 10 – backup battery;
11 – control panel serial number; 12 – GSM communicator; 13 – control panel LED
1.2. LED indicators on the control panel mainboard (13)
RUN Green
FLT Yellow
GSM
Red
2. Before system installation
1. First, consider how to secure the object, the arrangement of individual devices and the number of sections, and how to control the system.
2. Wireless devices must be installed in such a way that their radio communication is not shielded or interfered with. During installation, always check the
signal quality of individual devices directly in MyCOMPANY app.
3. Select a hidden place for the control panel (inside the protected area) where mains power is available and there must also be a good GSM signal
reception (LTE).
4. The requirements of the relevant standards must be respected during the design and installation of the alarm.
3. JABLOTRON Mercury installation procedure
Caution:
The manufacturer accepts no liability for damages if the system is improperly installed or programmed.
−
Check the GSM network signal quality on the installation using your cell phone.
−
Only a person with a relevant electrical qualification may install the control panel mains supply. The control panel power supply has double
−
safety circuit separation. The protective earth wire of the mains supply (if used) can be connected to the FE terminal.
− Use a suitable double-insulated cable with a cross-section of 0.75 to 1.5 mm
− The control panel should be protected by a 6A circuit breaker.
Never power the system on during the installation.
−

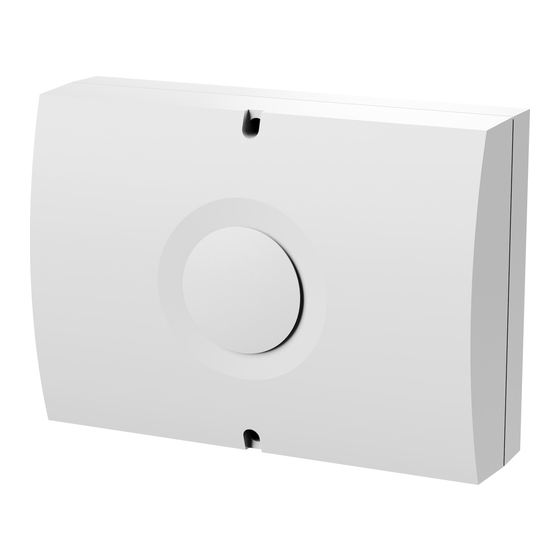

JA-152KRY control panel of the JABLOTRON Mercury alarm system
JA-152KRY control panel of the
JABLOTRON Mercury alarm system
Installation manual
communicator type: GSM2202MD
indicators
Flashing indicates the control panel normal operation mode.
Permanent lit of yellow LED indicates general fault in the system.
lits permanently after the power is connected => logging into the GSM network (max. 1 min),
−
off if the GSM is OK and no communication takes place,
−
flashing in 1 s intervals, if no GSM network is available.
−
Fig.2 control panel cover: 14 – control panel cover; 15 – acoustic indicator;
16 – connector of the acoustic indicator
2 for mains power supply.
1 / 8 MMD530400
