Wireless battery indoor siren
Type: 5SIR2303RJ
switch to the manual for the JABLOTRON Mercury system
The product is a component of the JABLOTRON system. It serves for the acoustic indication of
internal alarms. In order to function correctly, the device must be connected to a control panel
unit with a radio communicator.
Installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the 100+ Series and is the answer not in the manual?

Questions and answers

Related Manuals for jablotron 100+ Series

Summary of Contents for jablotron 100+ Series

  • Page 1 JABLOTRON Mercury system The product is a component of the JABLOTRON system. It serves for the acoustic indication of internal alarms. In order to function correctly, the device must be connected to a control panel unit with a radio communicator.

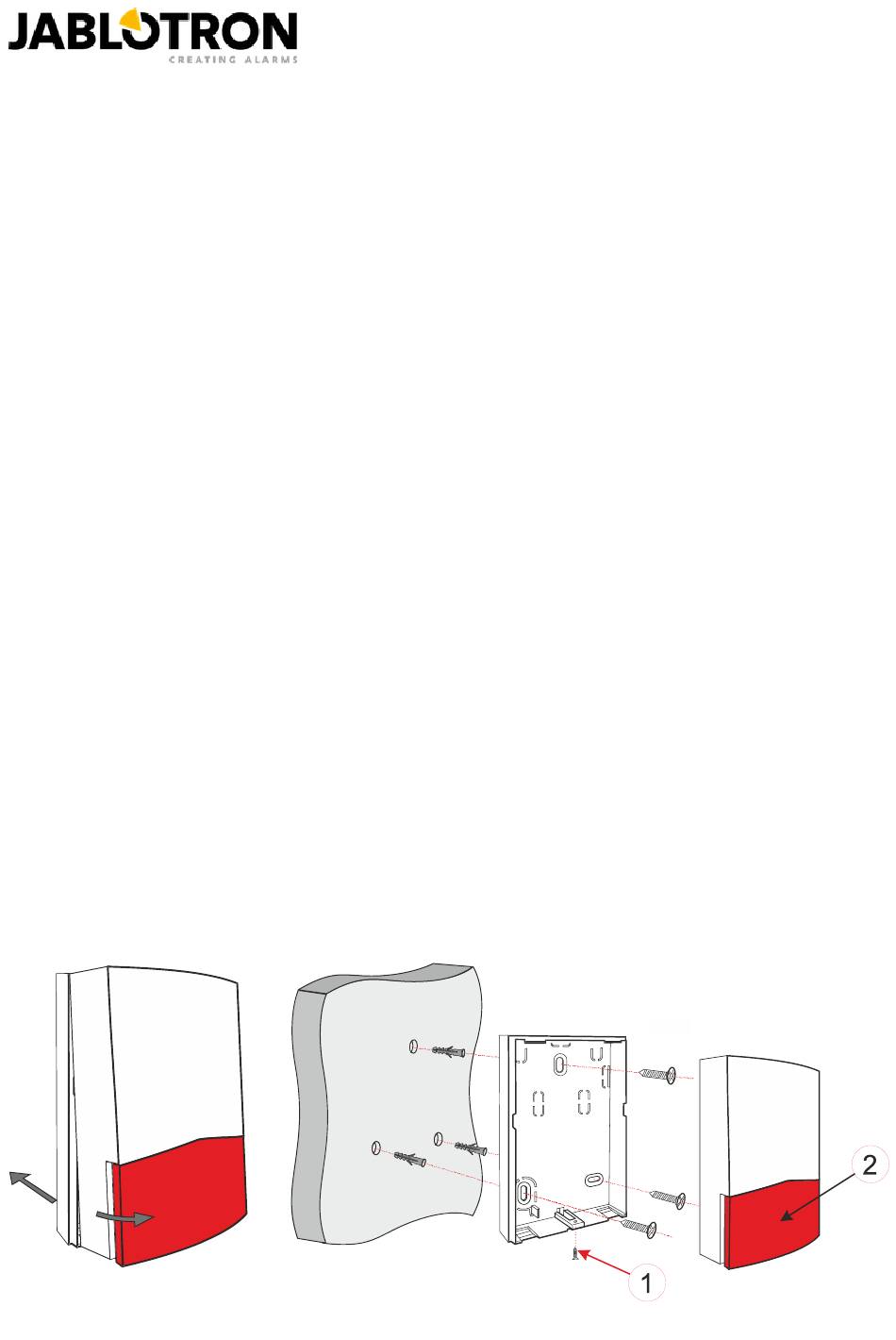

  • Page 2 Fig. 1: Opening of the device and wall mounting 1 – locking screw; 2 – LED light guide; 1. Pull apart the lid at the bottom of the siren. 2. Screw the back plastic cover onto the chosen spot on the wall. 3.
  • Page 3 The asterisk symbol – * indicates the default setting, some parts of which can be changed when using the F-Link program. Settings tab Acoustic indication of alarms from sections Determines for which section the siren will signal an alarm. The toot is factory set for all sections.

  • Page 4: Communication Loss

    with the control panel, and the duration is determined by the timer. If you select the option „During the alarm time“ in the timer options, the siren will follow the setting of this parameter in the control panel, which is a maximum alarm time of 20 min. Level of volume of supplementary acoustic indication: Low/ Medium*/ Increased/ Highest.

  • Page 5: Technical Specifications

    135 μA consumption Maximum current 250 mA consumption Current consumption 250 mA during acoustic indication Communication frequency 868,1 MHz, JABLOTRON protocol Maximum radio-frequency <25 mW power (ERP) Maximal acoustic output 85–88 dB Type of warning device type W Dimensions 100 x 67 x 40 mm...
  • Page 6 50131-4, EN 50131-6 Recommended screw ø 3,5 x 40 mm (flat head) JABLOTRON ALARMS a.s. hereby declares that the 5SIR2303RJ is in a compliance with the relevant Union harmonisation legislation: Directives No: 2014/53/EU, 2014/35/EU, 2014/30/EU, 2011/65/EU. The original of the conformity assessment can be found at www.jablotron.com –...
