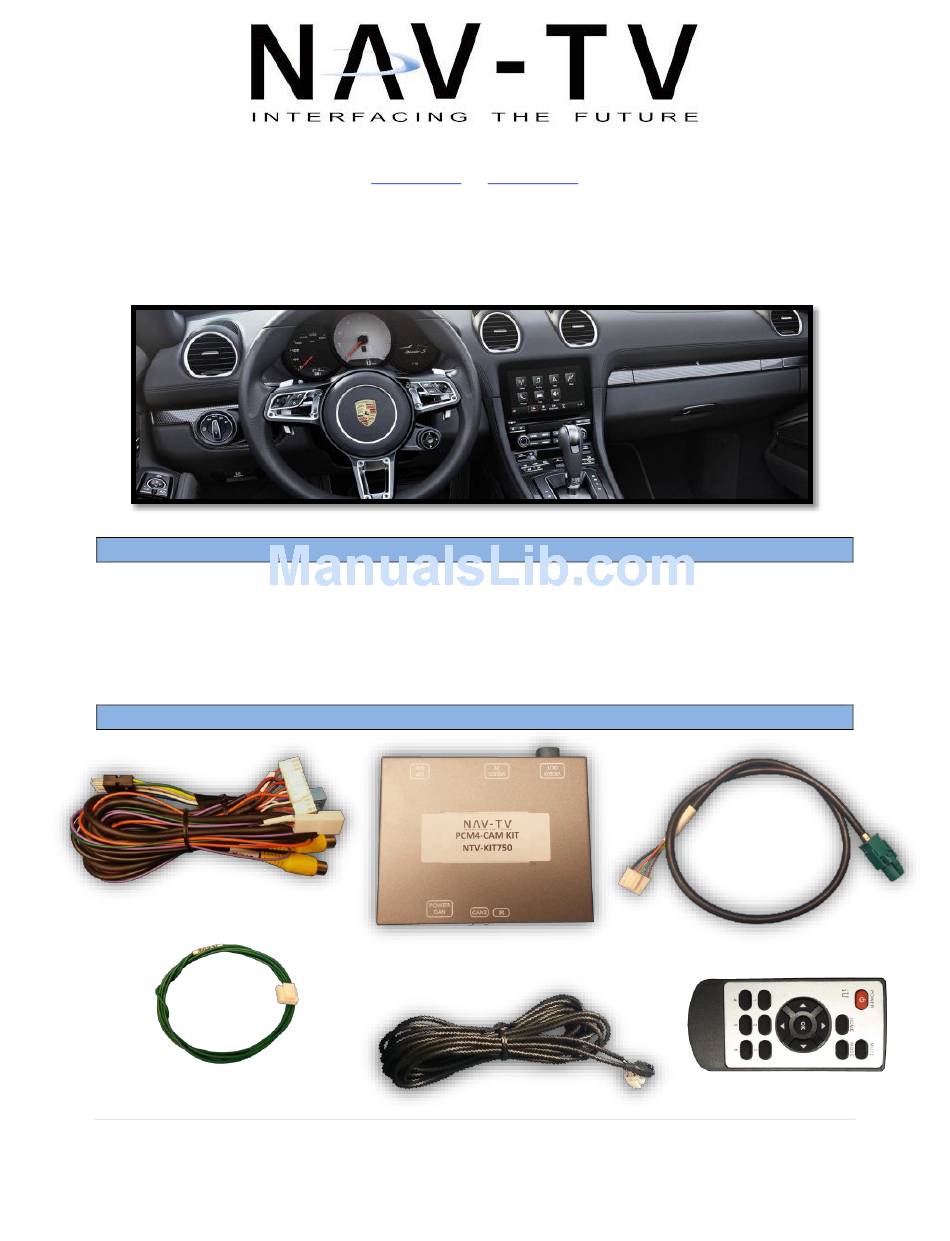

BHM
06/16/16
NTV-DOC262
th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
PCM4-CAM
NTV-KIT750
Overview
The PCM4-CAM Kit interfaces a backup camera input (with active parking lines) and 1 additional
video input (front cam, etc) to the factory media screen in the 2017 Porsche vehicles equipped
with PCM4.0, 2015+ Audi A3 and 2015+ Golf VII. Installation is performed behind the radio (disc
player).

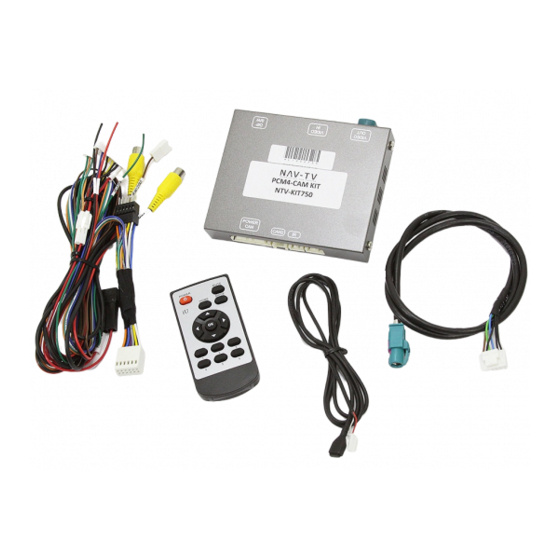

Kit Content
LVDS
Video
Cable
Power/CAN Harness
PCM4-CAM Interface
Wire trigger cable (optional)
OSD Menu Remote
Infrared Receiver
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Nav TV PCM4-CAM
Summary of Contents for Nav TV PCM4-CAM
- Page 1 NTV-KIT750 Overview The PCM4-CAM Kit interfaces a backup camera input (with active parking lines) and 1 additional video input (front cam, etc) to the factory media screen in the 2017 Porsche vehicles equipped with PCM4.0, 2015+ Audi A3 and 2015+ Golf VII. Installation is performed behind the radio (disc player).
- Page 2 06/16/16 NTV-DOC262 Interface Connectors Power/CAN Harness Wire trigger Not Used (optional) Infrared Receiver Video OUT Video IN (from Not Used Dip Switches (to screen) radio) Dip Switch Settings Dip SW: AUDI/GOLF HIGH RES KEEP DOWN DOWN PORSCHE LOW RES KEEP DOWN Note: Remove power to the unit prior to making adjustments to the dip switches.
- Page 3 4-pin round LVDS video connector that was removed from the radio in step 1. Connect this factory plug to the PCM4-CAM interface at the port labeled ‘VIDEO OUT’.* 4. Connect the smaller white plug side of the provided LVDS...
- Page 4 06/16/16 NTV-DOC262 5. Connect the free end of the provided LVDS Video Cable (green) back to the factory radio at the appropriate port (if keyways must be cut, do so). 6. Connect the provided 12-pin plug & play portion from the main power harness to the main factory quad-lock connector as shown below.
- Page 5 8. Connect the video feed from the camera to the RCA among the main power harness labeled ‘CAMERA’. 9. Connect the white plug from the Power/CAN Harness to the port on the PCM4-CAM interface labeled ‘POWER CAN’. 10. Optional: If adding an additional video input (including front camera), connect the video signal to the RCA among the Power/CAN Harness labeled ‘FRONT’.
- Page 6 06/16/16 NTV-DOC262 PCM4-CAM Install Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 7 06/16/16 NTV-DOC262 Menu Adjustments (dynamic guidelines, AUX video, front camera etc) Before you start: The IR-Eye must be connected, ( connects to main harness) Make sure the car’s ignition is on and radio is on You must be in Reverse Camera mode. ...
- Page 8 AUX video, if active (OSD menu). PCM4-CAM Operation (AUDI A3) Once all connections are made, placing the vehicle in reverse will display the connected camera image on the media screen.
