Nav TV PCM3-AV Manual

Emulates factory TV tuner. For input of an external audio/video source in 2009 and Up Cayenne vehicles.

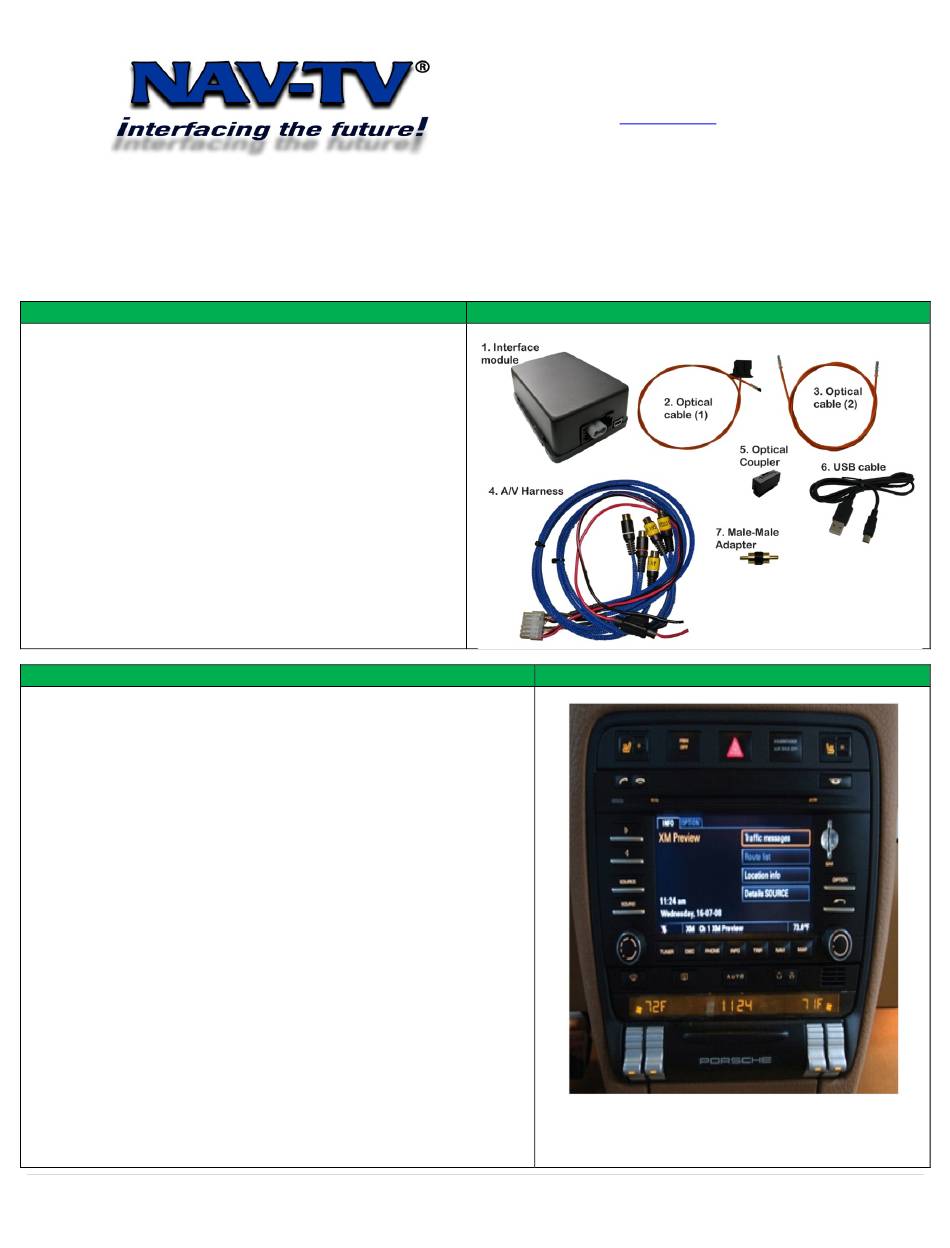

What's in the box
1. A/V interface module
2. Optical cabl e with connector (1)
3. Optical cable (2)
4. A/V Harness
5. Optical Coupler
6. USB cable (have the "A" connector side of the
cable acce ssible to the passenger side of the
vehicle cabin, but hidden from view)
7. RCA Male-Male adapter
1. Insert a plastic pry tool into the space between the lower black
trim piece and the dash and gently pry the trim panel towards the
rear of the vehicle to release mounting clips. Follow the trim panel
around either clockwise or counterclockwise to release the
remainder of the mounting clips. Set aside the trim panel.
2. Remove (4) T-20 Torx screws from around the radio
3. Remove the radio, disconnect cables from radio, then set the
radio aside.
4. Remove fiber optic cable from radio harness.
5. Remove fiber cable from slot with arrow pointing away from radio.
6. With fiber optic coupler, extend to passenger under dash panel.
Plug into fiber optic connector provided with kit.
7. Run the free end of the fiber optic line to the empty slot.
8. Plug the other free in of the fiber optic line into factory optical
connector and reinsert in factory harness.
9. Plug fiber optic line into A/V box.
10. Plug in the main harness for the A/V box. Run power to the A/V
box in the dash behind radio. Connect to constant power and
ground.
11. Plug in filter into the A/V harness, hide behind radio.
12. Connect A/V source into unit.
13. Connect the (Red wire) on the A/V harness to constant +12volt
source.
14. Connect the (Black wire) on the A/V harness to ground.
15.
Reassemble dash in reverse order.
1 | P a g e

Radio Removal

PCM3-AV
PCM3-AV 2-3-2009
Rev 1.2 Mark Ryan
TH
100 NW 11 Street, Boca Raton, FL 33432
Tel. 561-955-9770 Fax. 561-955-9760
www.nav-tv.com info@nav-tv.com
Package Contents
Radio Dash Images
