APPENDIX

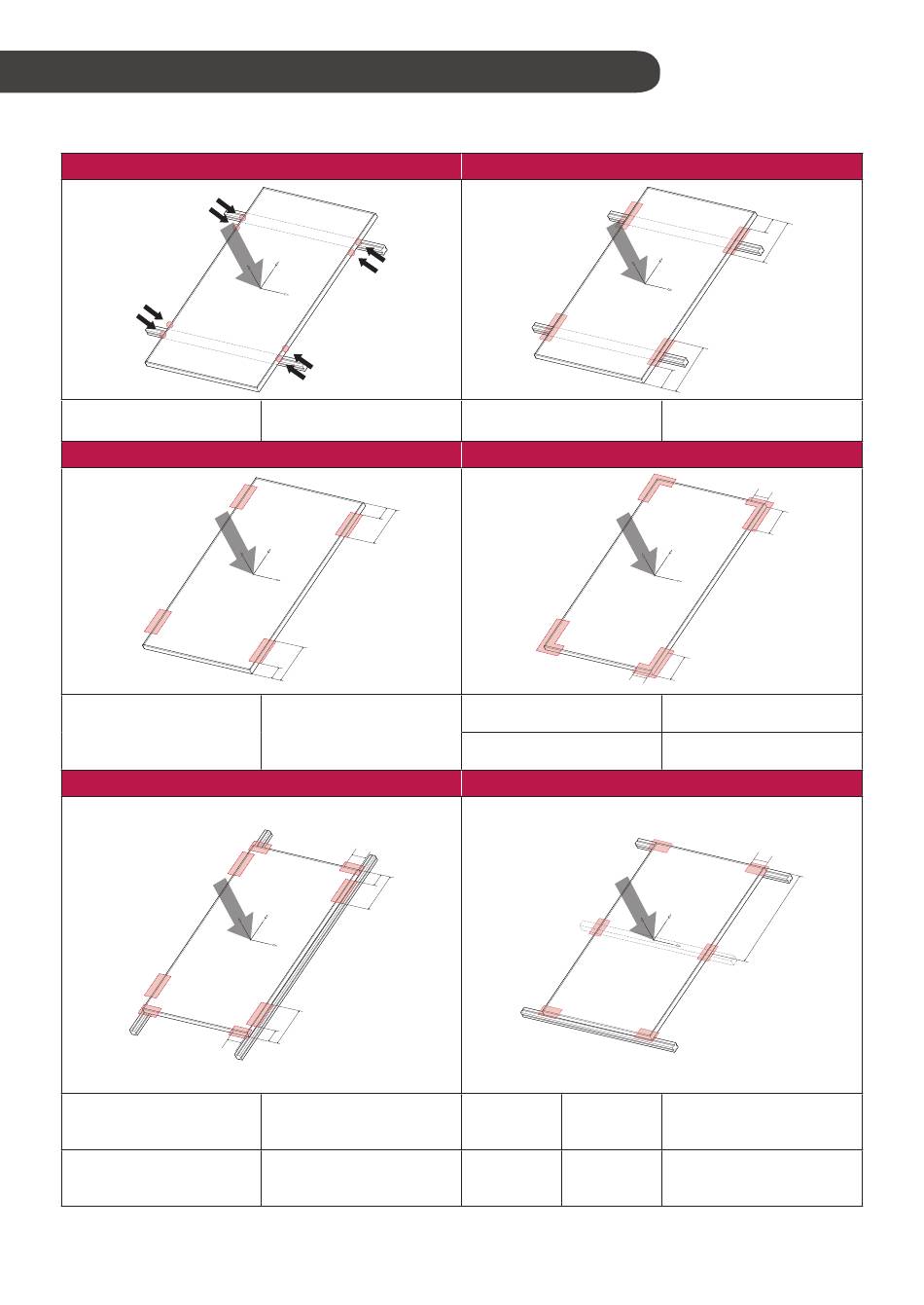

Mechanical Installation : 60Cell Model
Fig.1 Bolting Type
① : 200mm(7.9 in)
② : 300mm(11.8 in)
Fig.3 Clamping Type
A : 200mm(7.9 in)
B : 400mm(15.7 in)
Fig.5 Clamping Type
C
A : 200mm(7.9 in)
B : 400mm(15.7 in)
C : 120mm(4.7 in)
Note) All mechanical installation methods(Fig.1 to Fig.6) in this appendix were not tested by UL.
(UL 1703, ULC 1703) It is evaluated by LG internal test.
Front : 5400Pa(113psf)
Rear : 4000Pa(84psf)
A
B
B
A
Front : 4000Pa(84psf)
Rear : 4000Pa(84psf)
C
A
B
B
A
Front : 5400Pa(113psf)
Rear : 4000Pa(84psf)
Front : 5400Pa(113psf)
Rear : 1800Pa(38psf)
Fig.2 Clamping Type
A : 200mm(7.9 in)
B : 400mm(15.7 in)
Fig.4 Clamping Type
A
A : 120mm(4.7 in)
B : 200mm(7.9 in)
Fig.6 Clamping Type
A : 120mm
*4point(①)
(4.7 in)
A : 120mm
B : 843 ±100mm
6point(①+②)
(33.2±3.9 in)
A
B
B
A
Front : 5400Pa(113psf)
Rear : 4000Pa(84psf)
A
B
B
Front : 1800Pa(38psf)
Rear : 1800Pa(38psf)
Front : 2400Pa(50psf)
Rear : 2400Pa(50psf)
A
B
Front : 1800Pa(38psf)
Rear : 1800Pa(38psf)
Front : 5400Pa(113psf)
Rear : 4000Pa(84psf)
13
