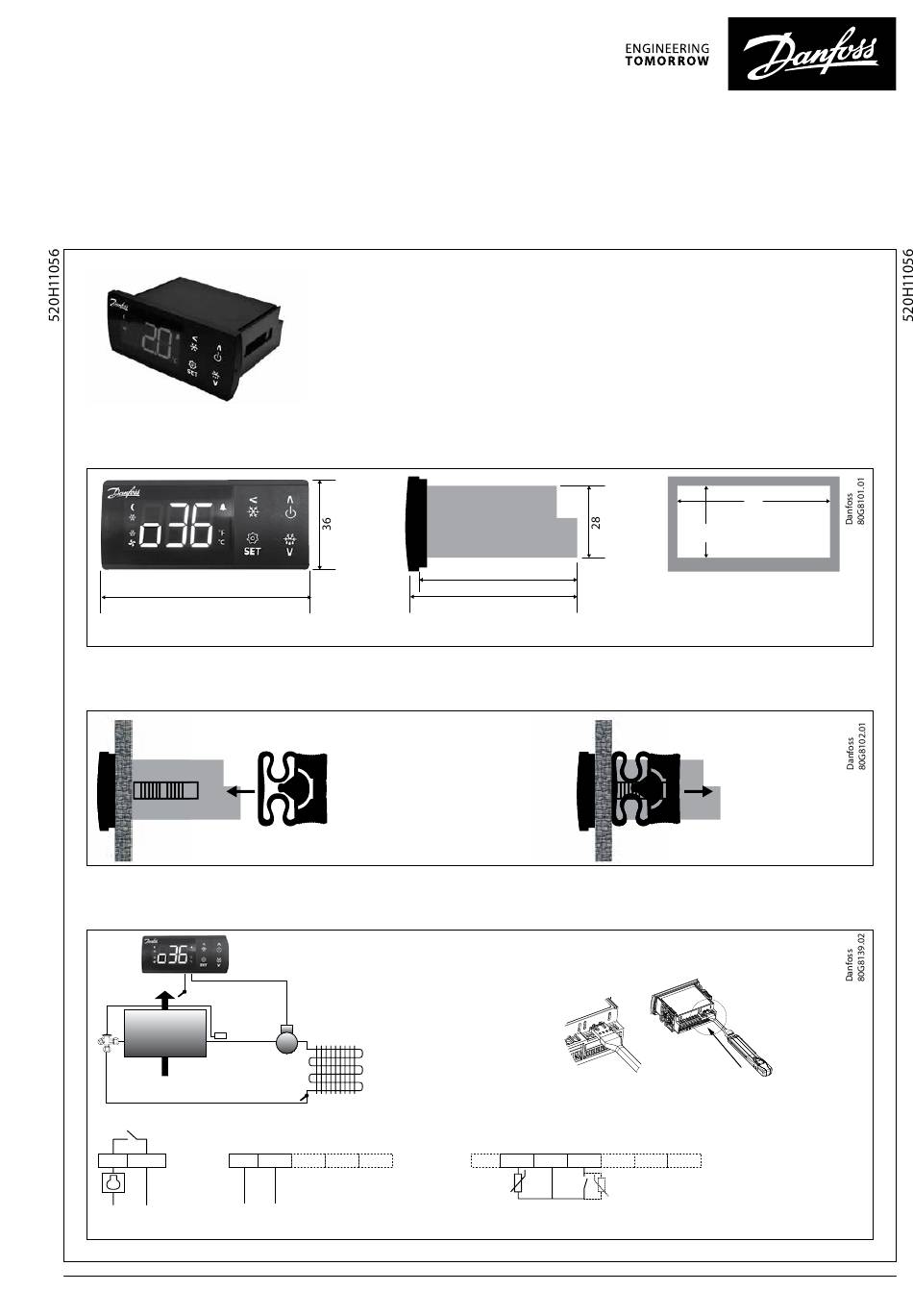

Installation guide
ERC 211
Digital controller for refrigeration and defrost, 1 relay.
Dimensions (mm)
83
Assembly
Wiring diagram
Sair
DO1
1
2
~
~
Electrical input
(on the basis of product code)
© Copyright Danfoss | Published by ADAP-KOOL | 2018.10

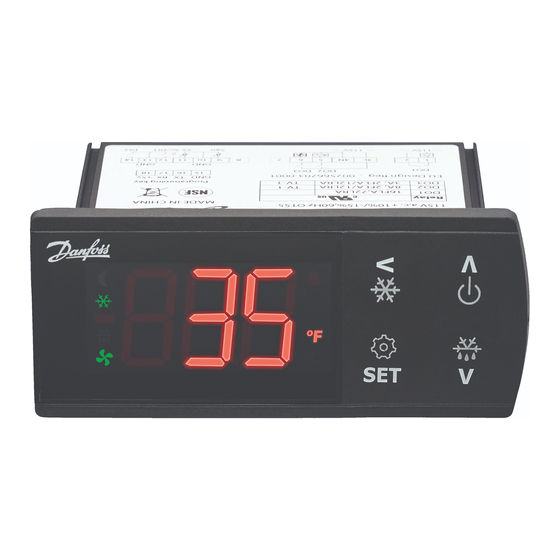

The ERC 211 is a smart, multipurpose integrated refrigeration controller with temperature
and defrost management, available with 1 relay.
This controller is for Operating temperature sensing control, suitable for refrigeration and
heating applications.
Integrated control has been designed to fulfil today's requirements for commercial
refrigeration applications.
Assembly
DO1
Sc
3L
4N
5
6
7
~
~
61.2
66
Rear mount (clip fixing)
Quick programming tool: EKA 183B
GND
8
9
10
11
Sair
Sc/DI1
Installation guide | ERC 211
71
29
Drilling template
Removal
GND
12
13
14
Connectors:
Max. Torque = 0.4 Nm
DKRCE.PI.RL0.P4.02 | 1
