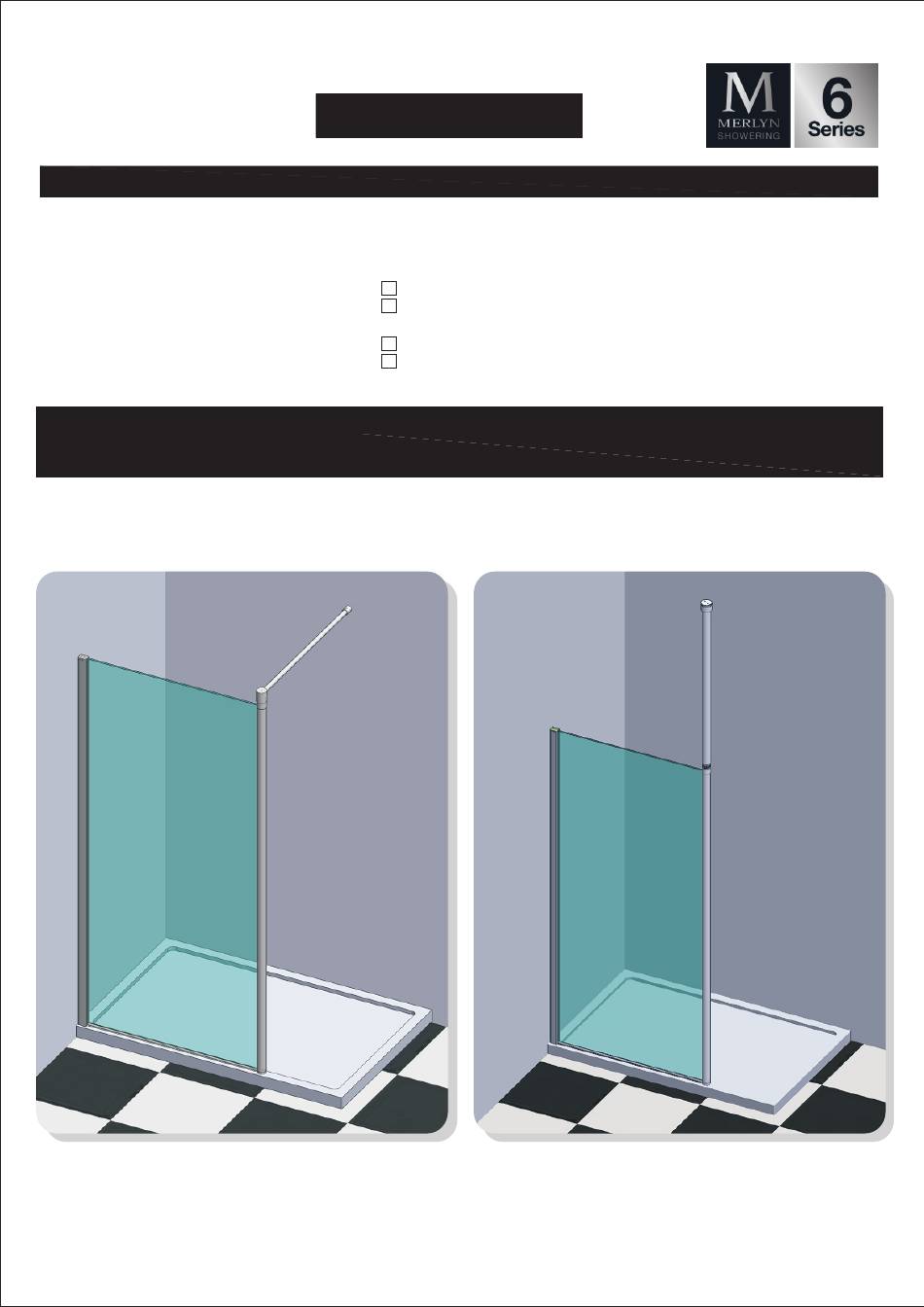

Thank you for choosing Merlyn. Please familiarise yoursel
with the fitting instructions before commencing fitting.
1. Check that you have the tools required.
. Check
2
that the installation site is compatible
with size of door supplied
3. Check all the enclosure components.
. Check
4
that the installation kit is complete
Any parts missing or damaged must be reported to your supplier within 5 days of purchase.
Inspect shower enclosure before fitting. No claims will be acceptable after product has been installed.
INSTALLATION GUIDE
SHOWER WALL
SLIDING DOOR
IMPORTANT
f
DO NOT
attempt to install the product unless you can
tick ALL
4 boxes as satisfactory.
The wall plugs supplied with the installation kit are for
use in solid walls. Hollow or ' s tud-partition' walls will
require
alternative fixings. Please consult a hardware
supplier for the correct type.
It may also be necessary to consult your tiling supplier
about the correct method for drilling your tiles.
USE SAFETY EYEWEAR WHEN DRILLING
VIVID
10
M042-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MERLYN 6 Series

  • Page 1 INSTALLATION GUIDE VIVID SHOWER WALL SLIDING DOOR IMPORTANT Thank you for choosing Merlyn. Please familiarise yoursel DO NOT attempt to install the product unless you can with the fitting instructions before commencing fitting. tick ALL 4 boxes as satisfactory. The wall plugs supplied with the installation kit are for 1.
  • Page 2 COMPONENTS AND BOX CONTENTS Description Part No. Description Part No. V6LP8076L/R Support bar ferule V6S6SW05 Top cover cap L/R V6MLN05 Cover cap for wall profile ST4 40 countersunk screw V6ST4 40 V6113 ∅ 6 30 wall plug Horizontal support bar holder V8119 Screw cover cap clip Rail to wall...
  • Page 3 FIXING KIT COMPONENTS, TOOLS REQUIRED, SITE Horizontal rail V8122 V8121 V6LP8076 L V6LP8076 R V6MLN05 V6M5 5 V8126 V1121 V8119 Vertical rail V8127 V6S6SW05 V8123 V1120 V8118 V6ST4 40 × V8124 V6113 V8125 V6115 V6S6SW07A V6M5 5 V4115 V4111 V4110 V2115 V2114 Tools Required...
  • Page 4 FITTING WALL PROFILE PROCEDURE TRAY MUST BE 100% LEVEL IN ALL DIRECTIONS Ensure the shower tray is level in all directions and is properly sealed to the wall. The wall must be tiled down to level 100 % the top edge of the tray. Do not angle out bottom tile. TRAY MUST BE SEALED FULLY AROUND WHERE THE TRAY MEETS THE WALL.
  • Page 5 FITTING DOOR PANEL V6ST4 40 V6S6SW05 Step 3. Identify the top of the panel column, by ensuring the screw holes line up with the panel correctly, and secure the support bar ferrule V6S6SW05 with 2 screws V6ST4X40. Step 4. Position floor support ferrule V8123 on bottom of panel A and slide it into the wall profile.
  • Page 6 OPTION 1- FITTING HORIZONTAL TOP RAIL V2115 V4110 V2114 V6115 Step 7. Re-position panel into wall profile and onto the ferrule on the tray, drill through profiles at similar position to wall fixing screws and fix to wall profiles with screws V4110,clips V2114 & snap-on caps V2115. V8119 MARK Step 8a.
  • Page 7 OPTION 2- FITTING VERTICAL TOP RAIL MEASURE Step 8b. Measure from the top of the support bar ferrule V6S6SW05 to the ceiling and subtract 1cm . Cut the vertical support bar V1120 to this length. NOTE: Do not cut end with internal thread on V1120.
  • Page 8 SEALING AND TROUBLE SHOOTING V6LP8076L/R V6MLN05 Step 13. Fix the top cover cap V6MLN05 & V6LP8076. Step 14. Use a quality silicone sealant and applicator gun to seal the finished door. SEALING INSIDE Seal top to bottom on the INSIDE between the wall profile and the wall.
