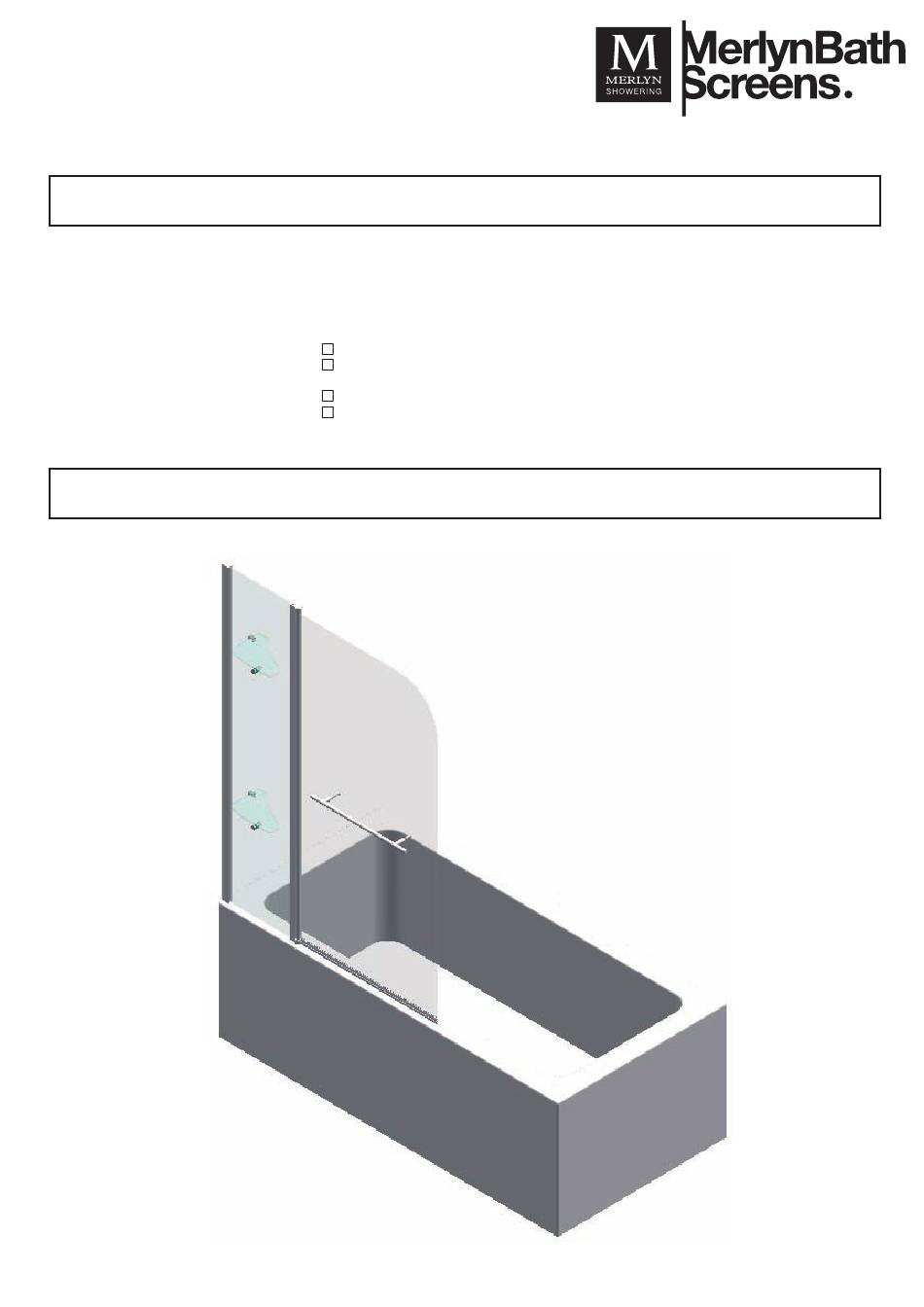

MERLYN MB3 2 Panel Curved Bath Screen Installation Manual

Please familiarise yourself with the ﬁtting instructions before

commencing ﬁtting.

1 Check that you have the tools required

2 Check that the installation site is compatible

with size of screen supplied

3 Check all the bath screen components

4 Check that the installation kit is complete

Any parts missing or damaged must be reported to your supplier within 5 days of purchase.

Inspect fitting area before fitting. No claims will be accepted after product had been installed.

Installation Guide

Two panel curved Bath screen

Important

DO NOT attempt to install the product unless you can tick ALL 4

boxed as satisfactory.

The wall plugs supplied with the installation kit are for use in solid walls.

Hollow or "stud - patrition" walls will require alternative fixings. Please

consult a hardware supplier for the correct type.

It may also be necessary to consult you tiling supplier about the

correct method for drilling your tiles.

USE SAFETY EYEWEAR WHEN DRILLING

Table of Contents

Need help?

Do you have a question about the MB3 2 Panel Curved Bath Screen and is the answer not in the manual?

Page 1 Installation Guide Two panel curved Bath screen Important Please familiarise yourself with the ﬁtting instructions before DO NOT attempt to install the product unless you can tick ALL 4 boxed as satisfactory. commencing ﬁtting. The wall plugs supplied with the installation kit are for use in solid walls. 1 Check that you have the tools required Hollow or “stud - patrition”...
Page 2 COMPONENTS AND BOX CONTENTS No. Description Part No. Description Part No. Description Part No. Clear Seal MOBY003 Wall Plug 2SP12 Perspex shelf MOBY004 Bracket BSYS021L/R Shelf glass bracket MOBY005 Moving Glass Panel Fixed Glass Panel Screw (4x16mm) 2SY50 Shelf wall bracket MOBY006 Screw Cover Cap 2SS008...
Page 3 INSTALLATION 1. Position the wall profile LR8387C so the seal on the moving panel A sits on the inside edge of the bath.Fig 2 FIG 2 screen inside bath edge Plumb the wall profiles LR8387C using the vertical element of the spirit level. Mark 3 holes, drill with 6mm masonry bit and fit wall plugs 2SP12.
Page 4 Fit shelf glass bracket to glass, level shelf in both directions and mark fixing point on wall.Use 6mm masonry bit and then insert the 2 wall plugs 2SP12 and fix the shelf wall brackets MOBY006 to the wall with screws 2SY51. Tighten shelf glass bracket MOBY005 onto the glass.Insert the perspex shelf MOBY004 into the shelf wall bracket and shelf glass bracket.Then tighten...
