MERLYN arysto six Installation Manual

One door quadrant

Advertisement

Quick Links

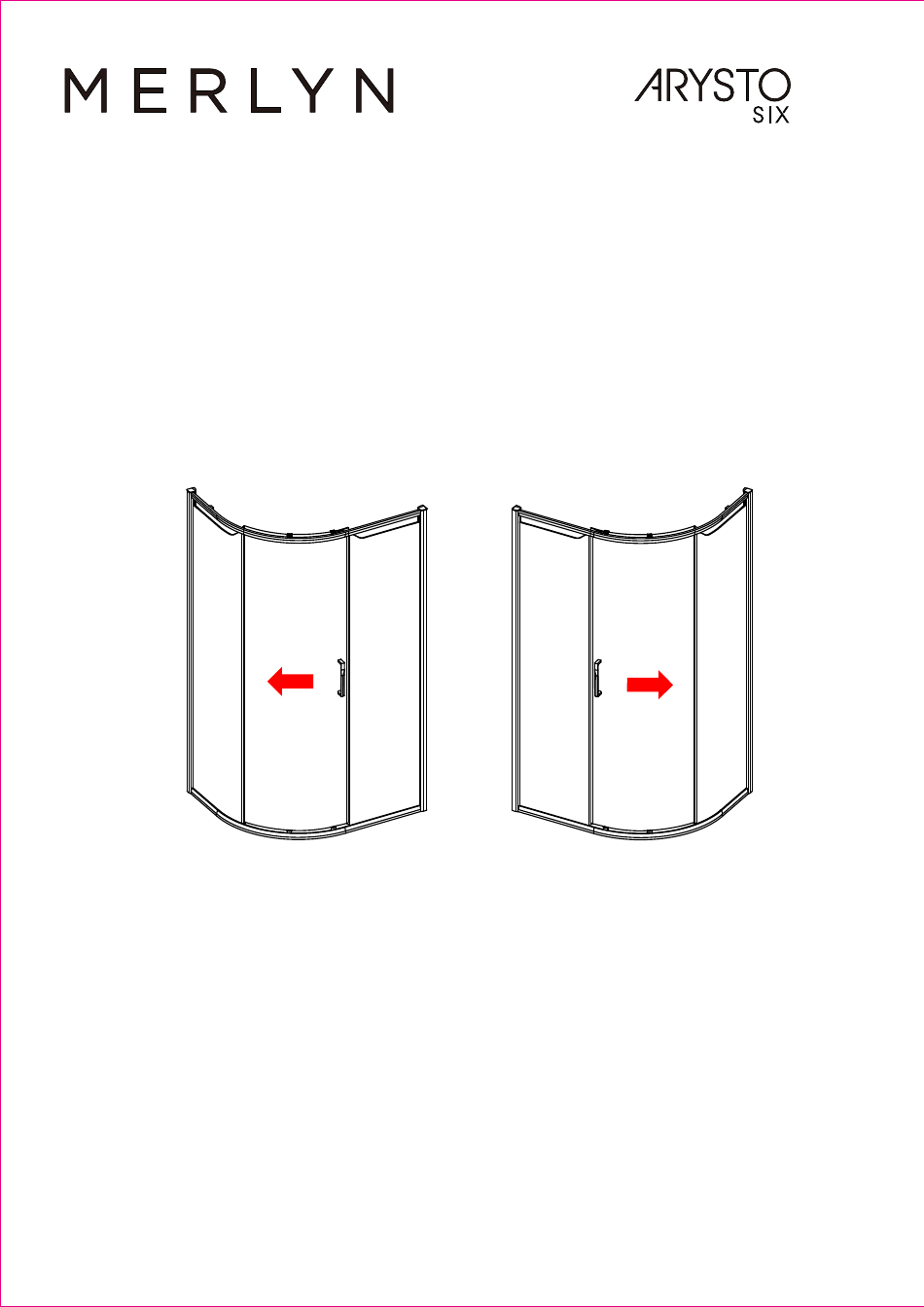

Installation Guide
One door quadrant
Left hand
Door
opening
direction
Right hand
Door
opening
direction

Advertisement

loading
Need help?

Need help?

Do you have a question about the arysto six and is the answer not in the manual?

Questions and answers

Summary of Contents for MERLYN arysto six

  • Page 1 Installation Guide One door quadrant Left hand Right hand Door Door opening opening direction direction...
  • Page 2 IMPORTANT: Please read the complete instructions before commencing fitting. Make sure the tray is 100% level in all directions. Do Not attempt to install the product unless you can tick all 4 boxes satisfactory. · Check that you have the tools required ·...
  • Page 3 Description Code No. QTY Description Code Top cap for adjusting profile, left A6UPPCAPL Top cap for adjusting profile, right A6UPPCAPR Upright seal for one door quad Top cap for wall profile, left A6WPCAPL A61DQUPS One door quad roller, Top right A61DQROLTR Wall profile A6STDWP...
  • Page 4: Tools Required

    Fixing Kit Components A6PROFILL AR6SPACER1 AR6SPACER2 A61DQROLTR A6SLROLBL A61DQROLBR A6SLROLTL 2&3mm 1&1.5mm A6UPPCAPL A6UPPCAPR A6WPCAPL A6WPCAPR A64X8FRA A6WSCRW A6WPLUG ST4*30 Ø6 ST4*8 Ø3 2.5mm A6HANDLE Tools required Philips Ø6...
  • Page 5 Ensure the shower tray is level in all directions and is properly sealed to the wall. The wall must be tiled down to the top edge of the tray. Do not angle out bottom tile. TRAY MUST BE LEVEL IN ALL DIRECTIONS! TRAY MUST BE SEALED FULLY IN ALL AREAS WHERE...
  • Page 7 Φ6 Push the seal onto the fixed panel making sure it is 10mm from the edge. NOTE: After step 9 make sure seal is still in the same position. Flat fixed Fixed panel panel No gap...
  • Page 11 Where possible the frame should be adjusted equally on both sides, A=B. Max. adjustment of each side (A&B) is 25mm. Make sure the bottom profile is level. If level continue to step 15. If not level choose a spacer size from AR6SPACER1/A6SPACER2 that returns the profile to level. AR6SPACER1 AR6SPACER2...
  • Page 12 15A ,15C From inside drill the frame top, middle and bottom making sure to step in a Min. 15mm from the edge of the frame. 15B,15D On Max. adjustment drill 4mm from the edge of the frame as shown below. Min15mm Min15mm Min4mm...
  • Page 13 After the handing has been determined fix the rollers to the moving panel as shown in 17A. Note: Please check the roller labeling for correct orientation. TOP ROLLERS ASSEMBLY TOP LEFT TOP RIGHT BOTTOM ROLLERS ASSEMBLY OUTSIDE BOTTOM RIGHT BOTTOM LEFT PUSH RELEASE...
  • Page 14 INSIDE INSIDE INSIDE INSIDE INSIDE INSIDE 2.5mm INSIDE OUTSIDE...
  • Page 15 Adjust the rollers to plumb the moving panel. Also ensure the bottom rollers are in contact with the profile. There should be no gap between both roller arms and the roller stops. Adjust rollers up or down to allow for full insertion.
  • Page 16 24 h.
  • Page 17: Troubleshooting

    CLEANING It is important to clean your Merlyn shower door after every use. Wipe down all the glass and metal parts with a soft cloth. Do not allow lime scale to build up in hard water areas. Ensure that any residual water on the glass is removed after every use.
  • Page 18 Merlyn Industrles Ltd (MER01) CEAR6 1.1 EN 14428 Shower enclosures with aluminium profiles and safety glass Cleanability : Pass Impact resistance/ : Pass shatter propertles : Pass Durablily To download the Declaration of Performance (DOP) for this product use the link below.
