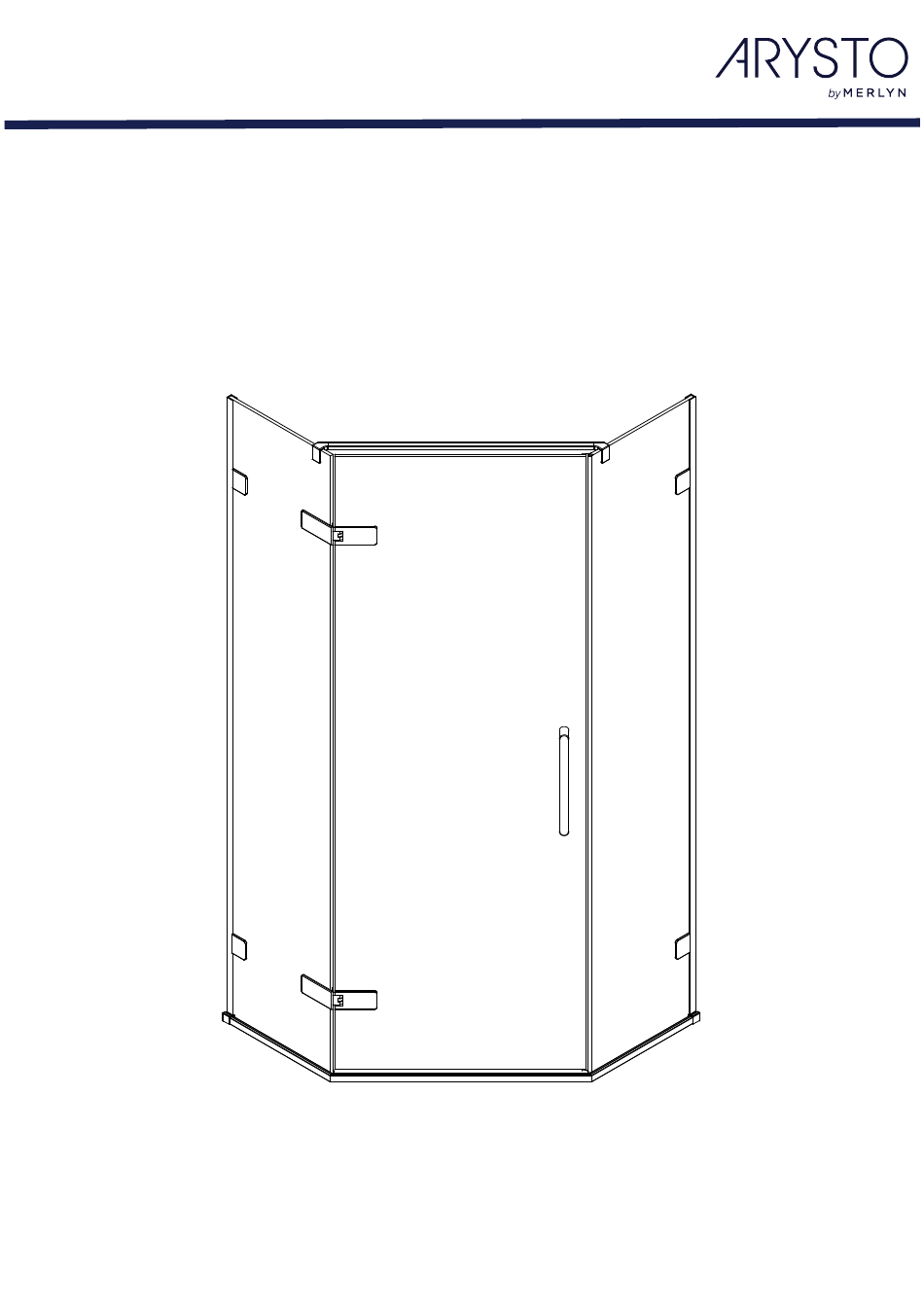

- Page 1 Pentangle INSTALLATION GUIDE...
- Page 2 Note:Extra components have been supplied to make this product suitable for left or right hand configuration and therefore some parts will be surplus to requirements. MGVC21R MGVC21L MGVC08AL MGVC08AR ×1 ×1 ×1 ×1 MGST4X30BH MG8x51PLUG MGST5X65 MG6x30PLUG ×8 ×1 MGVC45 MGVC20A Installation tool MGVC19A...
- Page 3 8S1300511 MGVC27 ×1 ×1 SP0GMHPRCH A06S0046 Ø6&8...
- Page 4 Part No. Part No. Part No. MG6x30PLUG MG8x51PLUG MGVC27 MGVCWPSET GMGPN MGST4X30BH GMGPH900 Bottom track GMPENTCSEAL MGVC30A MGVC44LSET/RSET GMGPH900 IRF6003-1 SPOGMHPRCH MGVC21R/L MGVC08AR/L MGVC08AL/R MG135L4244 MGVC21L/R MGST5X65...
- Page 5 IMPORTANT! Whether fitting on a tray or on a tiled Wetroom the tray or floor must be 100% level！ 100% level ！ Step 2 Mark 64 mm in from the edge of the tray.
- Page 6 Step 3 Note the position of the labels on the wall profile.Make sure Label 'T' is to the top and 'B' is to the bottom. Line up the outside edge of the profile with the mark and plumb vertical. Mark the wall through the pre-drilled holes. NOTE: Do not fix wall profile.
- Page 7 Step 4 Remove profile and drill holes for wall brackets with diameter 8mm masonery bit and Ensure wall plugs are flush with tile. insert wall plugs. Repeat for each wall fixed panel. MG8x51PLUG Insert wall plugs Drill holes for hinge Step 5 Position brackets 8mm inwards from edge of tray Mark wall through slot.
- Page 8 Step 6 6A.Loosen both nuts enough to allow the nuts to slide into the grove in the side panel track.(Note:Do not remove nuts from bolt ). Ensure joint closes fully and tighten, silicone inside of joint. 6B.Add a bead of silicone to both sides of the track, then insert the glass holding profiles.
- Page 9 Step 7 Insert completed track into brackets . Fit brackets to end of track. Step 8 Slide caps into position. MGVC08AR MGVC08AL...
- Page 10 Step 9 Before assembling the brackets make sure it is orientated the correct way. Measure hole centres from top and bottom to determine correct orientation of panel. Note the differences between the hinged fixed panel (has notch cuts for hinge) and the closing side fixed panel (no notch cuts).
- Page 11 Step 11 Fix wall brackets loosely ensuring fixing holes are to the inside of glass panel. IRF6003-1 INSIDE Step 12 Take fixed wall panel and insert into bottom track keeping outside edge of glass panel tight to end of angled profile in bottom track. Make sure glass is tight to angled profile.
- Page 12 Step 13 Fix wall brackets to the pre drilled holes.Do not fully tighten,leave enough slack for adjustment.Secure top bracket first. Note: Hold glass panel and gently tap profile back tight against wall using MDF tool provided, working from bottom to top. MGVC45 Screw 5×65 INSIDE...
- Page 13 Step 15 Fit hinges ensuring that the part of the hinge which has a cut out is fitted to the door. Fixed Panel Moving Hinge plate with bevelled Panel edge goes on the fixed panel 135° Step 16 The side of the hinge that has the fixing bolts must be to the inside of the moving panel.
- Page 14 Step 20 Check door opening at bottom and make sure that the distance at the top is the same. Step 21 Fit the support rail to fixed panels. 21A Loosen both grub screws. 21B Fit the support rail to fixed panels.
- Page 15 21C Step in the clamp equal distance from the edge of the glass on both sides. 21D Check gap between both panels is equal top and bottom, then tighten both clamps.
- Page 16 Step 22 Place locating aids and spacers on threshold, one each side of opening.Fit closing seal to edge of inline panel. Make sure to keep fin to the inside. locating aids Tip! Hold both locating aids in position with masking tape. Step 23 The door should be lifted onto the locating aids standing inside the enclosure.
- Page 17 Step 24 Loosely fix back plate to hinges ensuring washers are in position and hinges are level. Step 25 Ensure gap between both glass panels is equal top and bottom,and that the gap between the seal and the edge of the moving panel is approx 5mm,then fully tighten hinge bolts.
- Page 18 Step 26 To remove door positioning aids open door outwards.When positioning aids have been removed check gap beneath door is even. Step 27 Left and right hand seal kits are provided, determine handing and use appropriate seal kit. Left hand model shown below.Push on longest seal between hinges onto back edge of moving panel.
- Page 19 Step 28 Fit bottom door seal keeping longest fin to inside.Notch fin where it meets the closing seal to ensure door closes fully . INSIDE INSIDE INSIDE Step 29 Fit the handle to the door. MGVC27...
- Page 20 Step 30 If after fitting doors and fixed panels and you still need adjustment to align doors etc ,you can achieve this by loosening the screws fixing the plate/hinge to the wall and the bolts clamping the bracket/hinge to the glass. Adjust the panels until the desired fit is achieved.Fully tighten all fixings.
- Page 21 Step 34 Sealing your enclosure. Make sure all surfaces are thoroughly cleaned and dry before applying sealant. Only seal the outside of the enclosure(red line). Do not seal the inside. Seal vertically along the wall, along the outside edge of the bottom profile and any joins in the profile, including where the bottom track meets the end brackets 2 4 h.
- Page 22 MERLYN Merlyn Showering Unit 8, Purcellsinch Industrial Park, Dublin Road, Kilkenny, Ireland. Tel: 00353 56 779 1555 Fax: 00353 56 779 1576 www.merlynshowering.com...
