Fluke STAP-BT-4X16 Quick Installation Manual

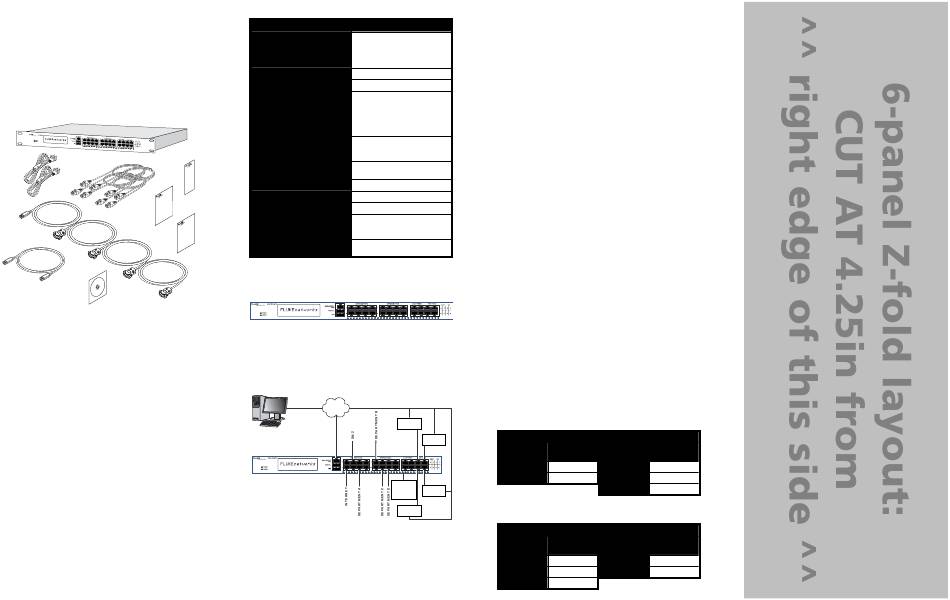

Unpacking
• (1) Quick Installation Guide
• (1) STAP-BT-4X16 16-Port Quad Output SPAN Tap
• (2) AC power cords
• (4) CAT 5E cables
• (2) USB-to-DB9F quad-control cable
• (1) USB Type-A cable
• (1) Switch Control Software CD
• (1) Hardware Guide
• (1) MANAgents Software Guide
STAP-BT-4X16
Copper SPAN Tap
A C Power
Cable x2 CAT 5E
Cable x4
Quick
Installation
Guide
MANAgents
Guide
USB Cable-to-DB9F
Quad-Control Cable
Hardware
Guide
USB Cable
Switch
Control
Server
software
Introduction
The STAP-BT-4X16 Copper SPAN Tap is a 16-port,
quad-output device that both increases your network
visibility and leverages your analyzers, probes and
security equipment by allowing you to monitor up
to four SPAN ports simultaneously. This improved
visibility accelerates network problem resolution,
reduces your downtime, increases productivity and
improves the bottom line.
F F E E A A T T U U R R E E S S A A N N D D B B E E N N E E F F I I T T S S
• 10/100/1000BASE-T with standard RJ45 ports
• Leverage with a single STAP-BT-4X16 unit up
to four network applicances across a total of
16 SPAN or mirror ports
• Daisy-chain with standard USB cables up to
four STAP-BT-4X16 units to enable your network
access to a total of 64 SPAN or mirror ports
• Manage the Copper SPAN Tap either through
your monitoring device's API or with Fluke
Networks MANAgents software
• Save network configuration schemes and
segment names with MANAgents software
• Reduce the need to travel on-site with
portable equipment using central management
• Standard 1U rack mount height and width
STAP-BT-4X16 Specifications
FEATURE SPECIFICATION
NUMBER OF PORTS
NETWORK Sixteen (16) Network ports
TAP Four (4) Tap ports
DAISY Four (4) Daisy ports
LINK SPEED SUPPORT 10/100/1000BASE-T Ethernet
CABLE TYPE CAT 5E
PORT CONNECTIVITY
MANAGEMENT RJ45
CONTROL AND LINK USB-style
DAISY RJ45
TAP RJ45
100m max. length between
DISTANCE LIMIT network end-points. (1m typical
length for network tools, up to 100m)
Two external power sources 100–240V AC
NOMINAL POWER REQUIREMENTS
at 50–60Hz / 1.5A5V DC, 2A
OPERATING TEMPERATURE 0° to 40°C (32° to 104°F)
STORAGE TEMPERATURE -30° to 65°C (-22° to 149° )
HUMIDITY RH less than 95% non-condensing
(H) 44mm x (W) 483mm x (D) 279mm
DIMENSIONS (H) 1.75" x (W) 19.00" x (D) 11.00"
(includes integral 19" rack mount brackets)
STAP-BT-4X16 unit: 4.99kg (11lbs)
WEIGHT
shipping: 7.71kg (17lbs)
F F U U N N C C T T I I O O N N A A L L D D I I A A G G R R A A M M
Figure 1. STAP-BT-4X16 front panel display
Refer to Figure 2 below for a connectivity diagram
of the STAP-BT-4X16 Copper SPAN Tap.
Connect up to 4 network
tools and manage from
a single console
IP Network
Management Console Probe
with MANAgents
Cables to
Network
SPAN Port
IP addressable
of each
10/100 transport
Ethernet
connection
Switch
Cables to
SPAN Port
Daisy-chain up
of each to 4 switches
Protocol
Ethernet
to cover up to
Analyzer
Switch 64 SPAN ports
Forensic
Recovery
Figure 2. STAP-BT-4X16 functional application diagram
General Installation Notes
This quick reference guide is abbreviated for proficient
network technicians; detailed installation and configura-
tion steps are found in the Hardware Guide.
To connect the STAP-BT-4X16 to the network, refer
to Figure 2 and follow these steps:
1. Connect both power supplies to separate power
sources to eliminate power loss as a cause of failure.
The POWER 1 and 2 LEDs will illuminate, indicating
that both power supplies are on. Either LED failing to
illuminate indicates a defective power source; replace
immediately to ensure redundant power integrity.
IMPORTANT
Do not exceed the maximum length of 100 meters
between end-points.
2. Connect one of the network cables from the
SPAN port on each network appliance to the
desired STAP-BT-4X16 NETWORK port connector.
NOTE
For NETWORK, TAP or DAISY RJ45 connectors,
integrated LEDs display line status and speed of each
port. See the LED Display Codes table.
3. Connect the TAP A RJ45 port on the Copper SPAN
Tap to the network appliance's Network Interface
Card (NIC). The TAP A port will illuminate, indicating
link has been established. Repeat with TAP B, TAP C
and TAP D ports to other devices as needed.
4. Connect the MANAGEMENT port of the Copper
SPAN Tap to the network for remote console control.
Alternately, connect the CONTROL port to a local host
control console using the included quad-control cable.
5. After installation, the MANAgents software must be
installed on your management console. Please refer
to the MANAgents software guide for details.
L L E E D D D D I I S S P P L L A A Y Y C C O O D D E E S S
U U P P P P E E R R R R J J 4 4 5 5 P P O O R R T T S S : : L L O O C C K K T T A A B B P P O O S S I I T T I I O O N N U U P P W W A A R R D D
upper left [green] LED
IDS
FUNCTION
INDICATOR INDICATOR
MODE
SOLID link
FLASHING data
L L O O W W E E R R R R J J 4 4 5 5 P P O O R R T T S S : : L L O O C C K K T T A A B B P P O O S S I I T T I I O O N N D D O O W W N N W W A A R R D D
lower left LED
TRANSFER
INDICATOR INDICATOR
RATE
GREEN 1,000Mbps
ORANGE 100Mbps
[OFF] 10Mbps
upper right LED
TRANSFER
RATE
GREEN 1,000Mbps
ORANGE 100Mbps
[OFF] 10Mbps
lower right [green] LED
FUNCTION
MODE
SOLID link
FLASHING data
