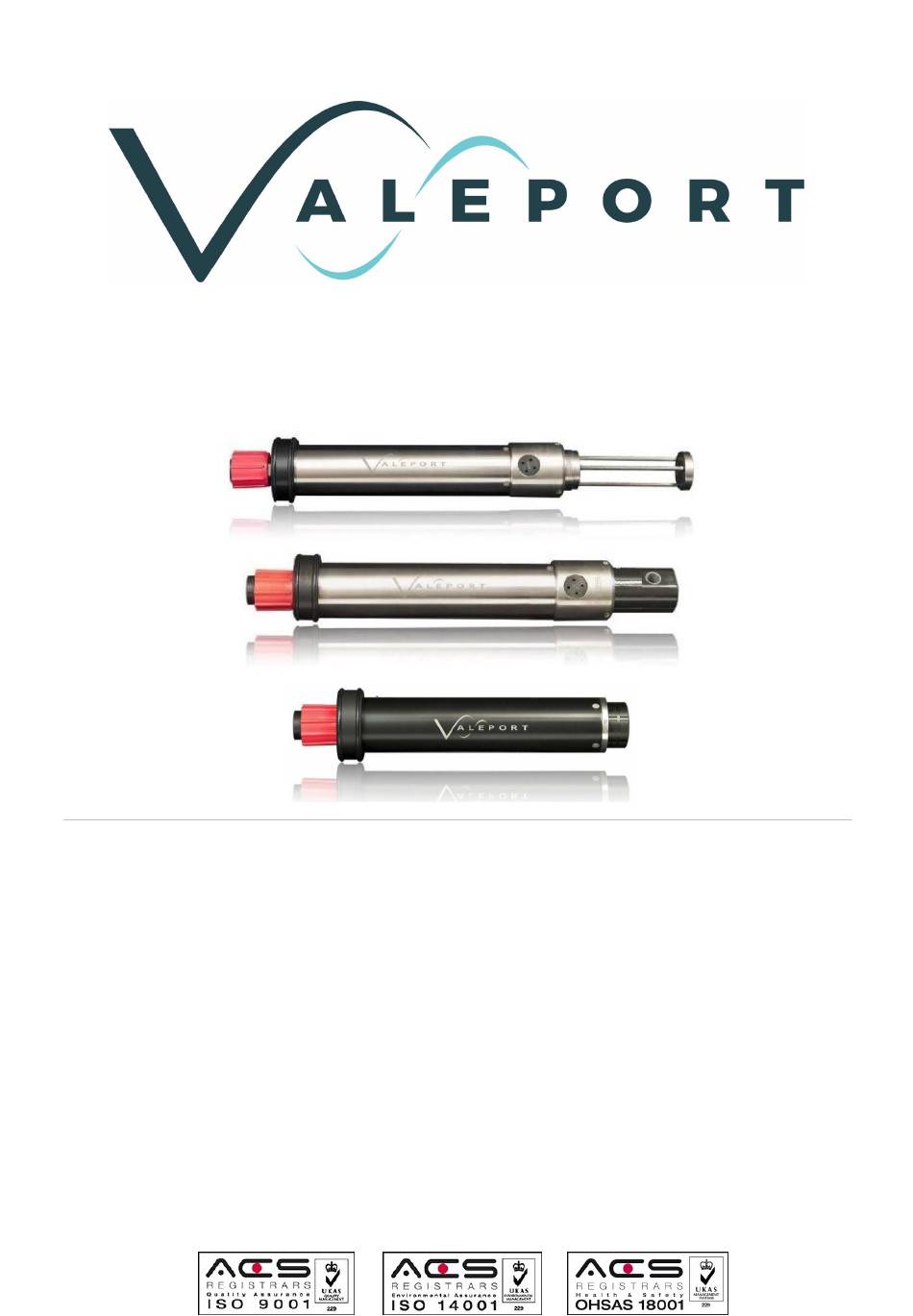

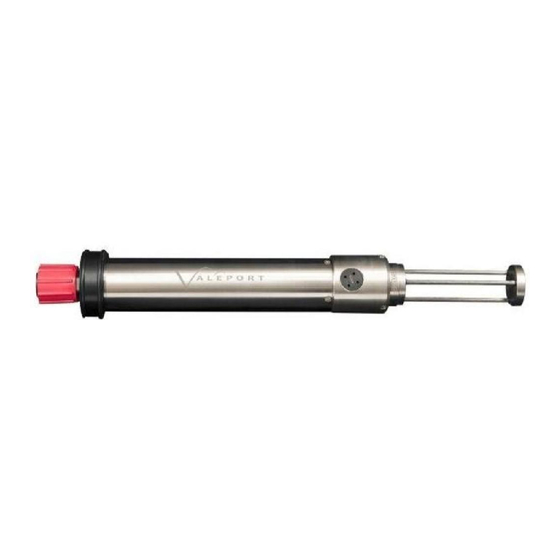

miniSERIES Operating Manual
miniCTD, miniSVP & miniTIDE
Document Ref:
0660880d
Date:
May 2019
This document was prepared by the staff of Valeport Limited, the Company, and is the property of the
Company, which also owns the copyright therein. All rights conferred by the law of the copyright and by
virtue of international copyright conventions are reserved to the Company. This document must not be
copied, reprinted or reproduced in any material form, either wholly or in part, and the contents of this
document, and any method or technique available therefrom, must not be disclosed to any other person
whatsoever without the prior written consent of the Company.
Valeport Limited
St Peters Quay
Tel:
Totnes
e mail:
Devon, TQ9 5EW
Web:
United Kingdom
As part of our policy of continuous development, we reserve the right to alter, without prior notice, all
specifications, designs, prices and conditions of supply for all our equipment.
+44 1803 869292
sales@valeport.co.uk | support@valport.co.uk
www.valeport.co.uk
Advertisement
Table of Contents
Related Manuals for Valeport miniSERIES Series
Summary of Contents for Valeport miniSERIES Series
- Page 1 Date: May 2019 This document was prepared by the staff of Valeport Limited, the Company, and is the property of the Company, which also owns the copyright therein. All rights conferred by the law of the copyright and by virtue of international copyright conventions are reserved to the Company. This document must not be...
-
Page 2: Table Of Contents
5.1. Cage ............................ 16 5.2. Clamp ............................ 17 6. Battery Life ............................. 18 6.1. miniSVP & miniCTD ............................ 18 6.1.1 Operation with Bluetooth ............................ 18 6.2. miniTIDE ............................ 18 6.3. Changing Batteries ............................ 19 Page 2 © 2019 Valeport Ltd... - Page 3 8.2. Greasing and mating above water (dry mate) ............................ 22 9. O Rings ............................. 23 10. Wiring Information ............................. 24 10.1. Instrument Connector ............................ 24 10.2. Switch Plug ............................ 25 10.3. 3m Y Lead (RS232) ............................ 25 Page 3 © 2019 Valeport Ltd...
-
Page 4: Eu Declaration Of Conformity - Ce Marking
Please note: Any changes or modifications to the product or accessories supplied, that are not authorised by Valeport Ltd, could void the CE compliance of the product and negate your authority to operate it. This product has demonstrated CE compliance under conditions that include the use of shielded cables. It is important that you use shielded cables compliant with the product’s conformance, to protect from potential damage and reduce the... -
Page 5: Ce Marking - Standard Equipment
EU Declaration of Conformity - CE Marking 1.1. CE Marking - Standard Equipment Page 5 © 2019 Valeport Ltd... -
Page 6: Ce Marking - Bluetooth Equipment
0660880d - miniCTD, miniSVP and miniTIDE 1.2. CE Marking - Bluetooth Equipment Page 6 © 2019 Valeport Ltd... - Page 7 EU Declaration of Conformity - CE Marking Page 7 © 2019 Valeport Ltd...
-
Page 8: Introduction
HyperTerminal. The instruments are based on Valeport’s existing “mini” sensor range, with the addition of an internal battery and logging facility to allow autonomous self recording operation, as well as additional operating modes to suit profiling and moored applications. -
Page 9: Specifications
Titanium structure, polyurethane coating, ceramic core · Conductivity Sensor (500m) Acetal structure, ceramic core · · · Pressure Transducer Stainless steel diaphragm with Acetal protective cover. · · Temperature sensor PRT in titanium housing with polyurethane backing. Page 9 © 2019 Valeport Ltd... -
Page 10: Power
Continuous output at 1, 2, 4 or 8Hz Profiling mode, every n.nn dBar, where n.nn is user defined miniTIDE Continuous output at 1 or 2Hz Burst mode, using a choice of pre-defined patterns Page 10 © 2019 Valeport Ltd... -
Page 11: Performance
Linear sensor performance allows easy calibration. Conductivity (miniCTD) Construction Materials: The materials used in the Valeport Conductivity sensor have been specially chosen to resist compression at high pressure, This unique approach ensures that it performs within specification under even the harshest of field conditions. -
Page 12: Data Requests And Output Formats
4. Data Requests and Output Formats The “mini” range of products described in this manual is designed to be used with Valeport’s DataLog software. However, the instruments respond to a series of text commands that are detailed here, for those users who wish to interface the products to other systems. -
Page 13: Run Commands (Minitide Only)
Each file will use the same information until it is updated. #038 Instrument responds with current site information Sets the instrument deployment latitude in decimal degrees, for use in pressure / depth #016;lat conversion algorithm Page 13 © 2019 Valeport Ltd... -
Page 14: Instrument Information
The current date and time Battery Level: 1.4V Internal battery level (guide only) MiniTide: S/N 27838 Instrument Type and Serial Number Site info: VALEPORT TEST SITE Site information Calibrated: 14/01/2008 Date of last calibration Latitude: 52.999286 Latitude for Pressure / Depth conversion... - Page 15 · Sound Velocity (miniSVP) is given in m/s, as a fixed length string with 3 decimal places. In air, the sensor reads 0000.000 · Conductivity (miniCTD) is given in mS/cm, as a fixed length string with 3 decimal places, and leading zeroes if appropriate. Page 15 © 2019 Valeport Ltd...
-
Page 16: Deployment
If the MiniCTD is to be deployed without the cage, the conductivity readings will be affected. To compensate for this an adjustment will have to be made to the calibration parameters. Contact Valeport for further details. 5.1. Cage The deployment cage is a rugged deployment method, providing physical protection to the instrument. -
Page 17: Clamp
Whichever deployment system is used, it is important to note that if the data is being monitored in real time via a Valeport signal cable, the SubConn connector system is not designed to be weight bearing. Suspend the instrument either from the dedicated eye in the cable, or from a separate strain wire. Do not allow the weight of the instrument to be taken through the connector itself. -
Page 18: Battery Life
87 days Note that all battery calculation figures are estimated, and may vary according to deployment temperature and the inherent battery variability. Valeport accepts no liability for the failure of a battery to last for the expected lifetime. Page 18... -
Page 19: Changing Batteries
· Replace the logger pack, rotating slowly until the location pins align. Push the logger pack home. · Replace the Acetal lock ring – hand tight is sufficient. Note that for planned periods of extended storage, the battery should be removed from the instrument to prevent accidental leakage. Page 19 © 2019 Valeport Ltd... -
Page 20: Optional Bluetooth Logger
SubConn switch cap is used on the standard logger pack. Every time the switch is removed, the instrument will start a new file. Using a standard C-cell battery, the MiniSVP/CTD fitted with a Bluetooth logger should have an endurance of ~12 hours continuous operation. Page 20 © 2019 Valeport Ltd... -
Page 21: Usb Bluetooth Receiver
DataLog software, the Bluetooth option should be checked. For use with hyperterminal, the connection is 57600 baud, 8 N 1. For use with DataLog, select the Bluetooth Comms option which fixes the baud rate to 57600 baud, 8 N 1. Page 21 © 2019 Valeport Ltd... -
Page 22: Care And Maintenance
· To confirm that grease has been sufficiently applied, de-mate and check for grease on every male pin. Then re-mate the connector · When disconnecting, pull straight, not at an angle Page 22 © 2019 Valeport Ltd... -
Page 23: O Rings
Lightly greased, not twisted and completely clean before reassembly. Ordering Information The main O ring, fitted to the Logger Module (all instruments): part number 200-125-4470 Back up O ring (titanium instruments only): part number 125 PAR Back Up Page 23 © 2019 Valeport Ltd... -
Page 24: Wiring Information
Mode Pin 1 Mode Pin 2 Notes RS232 open open Default baud rate 115200 RS485 open closed Fixed baud rate 38400, with transmission delays Bluetooth closed closed Fixed baud rate 57600, with transmission delays Page 24 © 2019 Valeport Ltd... -
Page 25: Switch Plug
Function 4mm Banana Plugs Power Ground BLACK plug Power +V RED plug RS232 Tx (To PC) RS232 Rx (From PC) RS232 Ground 5 (link to 1,6,8,9) Internal Battery Enable SHELL Link to RS232 Ground Page 25 © 2019 Valeport Ltd...
