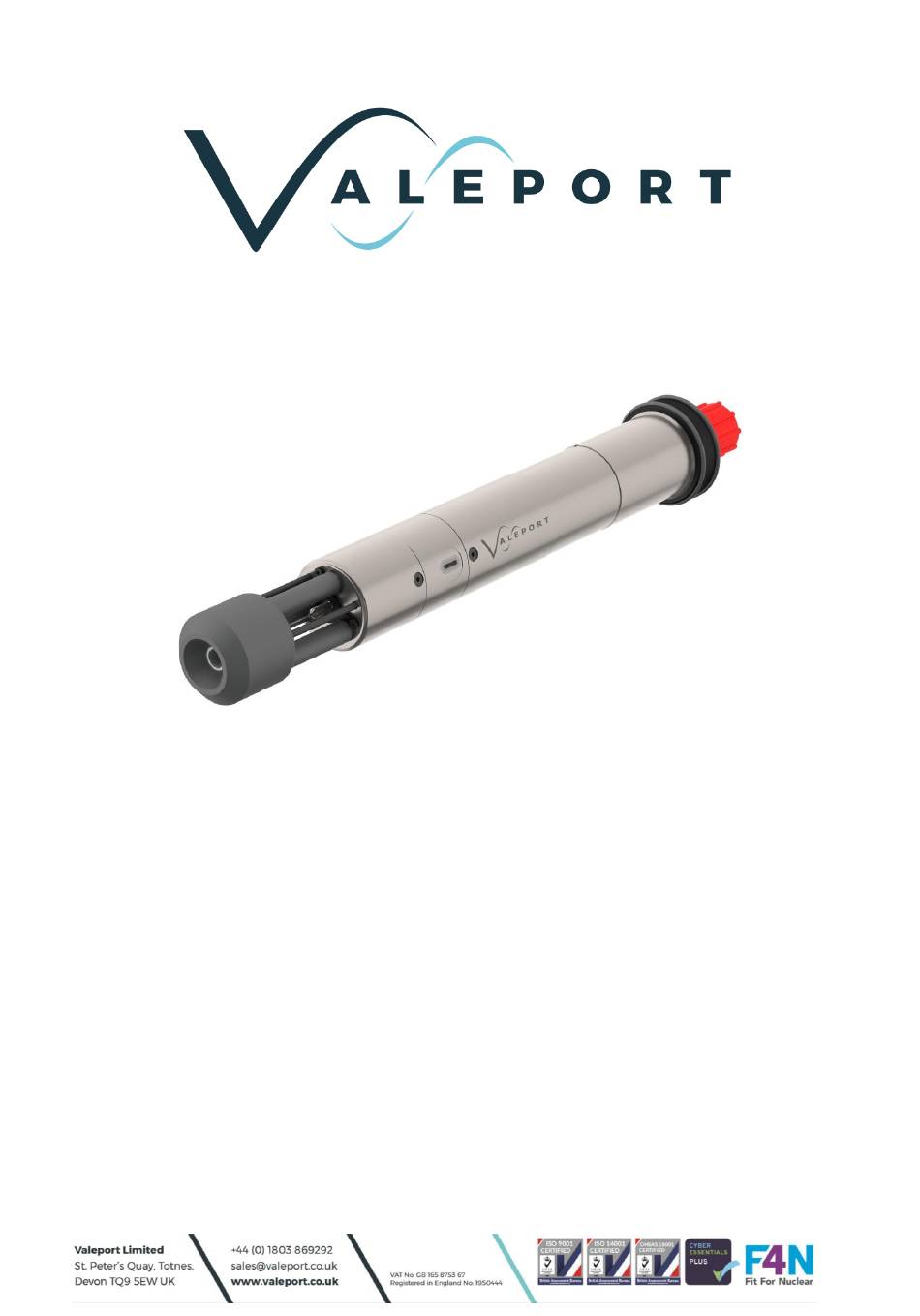

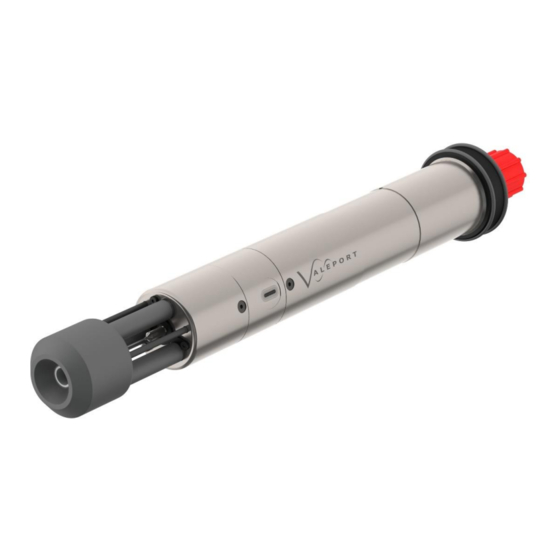

fastCTD and fastCTD plus
Operating Manual
Phone:
+44 1803 869292
email:
sales@valeportwater.co.uk
Web:
www.valeportwater.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valeport fastCTD
Summary of Contents for Valeport fastCTD
- Page 1 Date: January 2021 This confidential document was prepared by the staff of Valeport Limited, the Company, and is the property of the Company, which also owns the copyright therein. All rights conferred by the law of the copyright and by virtue of international copyright conventions are reserved to the Company.
-
Page 2: Table Of Contents
11 Software ..........................24 12 Ordering Information ......................25 13 EU Declaration of Conformity - CE Marking ................26 13.1 FastCTD and fastCTD plus .................... 27 13.2 fastCTD with Blutooth Option ..................28 © 2021 – Valeport Ltd Page | b... -
Page 3: Introduction
: MANUAL-2034990662-4 | issue: 1.0 1 Introduction An evolution of the miniCTD, the fastCTD Profiler has been designed to deliver the highest quality CTD casts at fast drop rates as well as conventional casts. A conductivity cell designed for optimum flow-through, a fast response thermistor temperature sensor and a 0.01% pressure... -
Page 4: Sensors
10, 50 Bar (Acetal housed systems) 10, 50, 100, 200 Bar (Titanium Bluetooth equipped unit) 10, 50, 100, 300 or 600 Bar (Titanium housed systems only) Resolution: 0.001% range Accuracy: ±0.01% range Response Time: 1 millisecond © 2021 – Valeport Ltd Page | 2... -
Page 5: Optical Sensors
2.4.1 Fluorometers 2.4.1.1 Safety Statement A Valeport Fluorometer is classified as Risk Group 1 under standard 62471. As the type is classified as Risk Group 1 solely due to radiation in the visible band a hazard label is not required. - Page 6 LED power, sample volume and optical path length). Valeport Fluorometers have a calibrated linear response for 2 gain settings (e.g. the ranges 0-40 µg/l (G5) and 0-800 µg/l (G1) for chlorophyll a). At higher concentrations, unlike analogue devices which generally flat-line at full-scale deflection (e.g.
-
Page 7: Turbidity
2.4.2.1 Safety Statement The Turbidity sensor is classified EXEMPT under the standard 62471. As a Valeport Turbidity sensor is classified as EXEMPT a hazard label in not required. Never look directly into the optical aperture © 2021 – Valeport Ltd... -
Page 8: Field Testing An Optical Sensor
By altering the angle of the target the magnitude of the reading should change thereby showing the correct operation of the sensor. If the test target is not available then use a piece of good quality white paper. © 2021 – Valeport Ltd Page | 6... -
Page 9: Data Acquisition
: MANUAL-2034990662-4 | issue: 1.0 3 Data Acquisition The fastCTD uses the concept of distributed processing, where each sensor has its own microprocessor controlling sampling and calibration of readings. Each of these processors is then controlled by a central processor, which issues global commands and handles all the data. This means that all data is sampled at precisely the same instant, giving superior quality profile data. -
Page 10: Physical Characteristics
496mm with Bluetooth Pack) Deployment Cage: 110mmØ x 550mm long Weight (in air): 1.6kg (Acetal) / 3.9kg including frame 2.6kg (Titanium) / 4.9kg including frame Shipping: 51 x 42 x 27cm ~10kg © 2021 – Valeport Ltd Page | 8... -
Page 11: Dimensions
: MANUAL-2034990662-4 | issue: 1.0 4.1 Dimensions © 2021 – Valeport Ltd Page | 9... -
Page 12: Communications
Recorded Data is stored as ASCII text files. It consists of a variable number of colon delimited header lines depending on the configuration of the instrument, followed by comma separated ASCII column data as per the real time output. © 2021 – Valeport Ltd Page | 10... -
Page 13: Recorded File Format
: MANUAL-2034990662-4 | issue: 1.0 5.1.1 Recorded File Format 5.1.1.1 Standard fastCTD Now: 24/02/2020 10:57:32 Battery Level: 1.5V serial_number: 73503 site_info: VALEPORT TEST SITE version: 0660713A13 Nov 29 2019 12:06 cal_date: 08/11/2019 address_485: 0 pcb_serial_numbers: 1005509;0 sampling_macro: M1 operational_sequence: 21;13;14;3;1;2... - Page 14 Communications 5.1.1.2 fastCTD plus (Fluorometer) Now: 21/01/2021 15:15:11 Battery Level: 1.4V serial_number: 45716.000000 site_info: Valeport Test Site version: 0660713A0 Jan 13 2015 12:15 cal_date: 00/00/2000 address_485: 1 pcb_serial_number: 0 operational sequence: 13;14;3;1;2 trigger_interval: 0.031250 averaging time constant: 1.000000 trigger_count: 32 temperature_sensor_type: 21 temperature_adc_res_cal: -1.941120e+13;8.349707e+06;1.632860e+02;-9.741146e-06...
- Page 15 : MANUAL-2034990662-4 | issue: 1.0 5.1.1.3 fastCTD plus (Turbidity) Now: 22/07/2020 10:16:49 Battery Level: 1.5V version: 0660723A4 SerialNumber: 72149 CalDate: 26;9;19 SiteInfo: 181399 OperationSequence: 21;13;14;3;1;2 AveragingConstant: 0.500000 PcbSerialNumber: 0 DataStartTime: 2020/06/07 13:12:00 OpticsOffPressure: 1000.000000 TemperatureSensorType: 1 TemperatureAdcResCal: 0.000000e+00;0.000000e+00;1.679056e+02;-9.993171e-06...
-
Page 16: Command Codes
Communications 5.2 Command Codes The fastCTD is designed to be used with Valeport’s DataLog X2 software. However, the instrument will respond to a series of text commands that are detailed here. Note that this list is not comprehensive, but will allow the standard functions of the instrument to be accessed. For more detailed information, please contact Valeport Ltd. - Page 17 : MANUAL-2034990662-4 | issue: 1.0 Command Notes Pn.nn Performs profile at a depth increment of n.nn, as set by the operator, in the current profiling units (see command #018). e.g.: P0.25 takes a reading every 0.25 dBar, metres or feet as appropriate Rapid Profile Settings #812;NN.N...
- Page 18 Performs simple text output data contained in specific file $EXTZ;filename Performs Zmodem extraction of data contained in specific file $RN;filename;newfilename Renames a file e.g.: $RN;File1;MyData $FREE Outputs amount of free memory $VOLT Reads internal and external voltage levels © 2021 – Valeport Ltd Page | 16...
-
Page 19: Operation
6.1 Switch Cap Logger Pack Operation If the fastCTD is supplied with a standard logger pack and connector, it will be also supplied with a SubConn Switch Cap. This is a dummy connector plug has pins 1 & 10 linked. Inserting the switch cap into the instrument connector activates the instrument and it will begin logging data in the last configured mode. -
Page 20: Cabled Operation
6.3 Cabled Operation If the fastCTD is supplied with a standard logger pack, it will be also supplied with a 3m Y lead. Connecting the Y-lead to the instrument will switch the fastCTD on, where it can be configured via the DB9 connector attached to a PC serial port. -
Page 21: Memory
: MANUAL-2034990662-4 | issue: 1.0 7 Memory The fastCTD is fitted with a solid state non-volatile Flash memory, capable of storing over 10 million lines of data (equivalent to 10,000 profiles to 500m at 1m profile resolution). -
Page 22: Electrical
SubConn MCBH10F (if fitted) 8.1 Changing Batteries Changing batteries in the fastCTD (F) is simple process, which may be completed in under a minute. All data is saved in non-volatile Flash memory, so data is secure during the battery change process. -
Page 23: Subconn Connector Care
: MANUAL-2034990662-4 | issue: 1.0 9 SubConn Connector Care The following handling procedures should be adopted when using SubConn connectors: The connector should not be exposed to long term heat or sunshine. If this occurs, and the connectors are very dry, soak them in fresh water before use. -
Page 24: Wiring Information
Output Mode Mode Pin 1 Mode Pin 2 Notes RS232 open open Default baud rate 115200 RS485 open closed Fixed baud rate 38400, with transmission delays Bluetooth closed closed Fixed baud rate 57600, with transmission delays © 2021 – Valeport Ltd Page | 22... -
Page 25: Switch Plug
: MANUAL-2034990662-4 | issue: 1.0 10.1.3 Switch Plug 10 Way Male Function SubConn Link to Pin 10 Link to Pin 1 10.1.4 Break Out Cable 10 Way SubConn 4mm Banana Function 9 Way D Type MCIL 10M + DLSA-M... -
Page 26: Software
Software 11 Software The fastCTD Profiler is supplied with DataLog x2 Windows based PC software, for instrument setup, data extraction and display, please see separate manual. DataLog x2 is licence free. © 2021 – Valeport Ltd Page | 24... -
Page 27: Ordering Information
: MANUAL-2034990662-4 | issue: 1.0 12 Ordering Information Part No. Acetal Housing 0660035 T1-XX fastCTD Profiler - 500m rated with connector 0660035 T1-Ff-XX ... as above with xx Fluorometer 0660035 T1-BT-XX fastCTD Profiler - 500m rated with Bluetooth 0660035 T1-Ff-BT-XX ... -
Page 28: Eu Declaration Of Conformity - Ce Marking
Please note: Any changes or modifications to the product or accessories supplied, that are not authorised by Valeport Ltd, could void the CE compliance of the product and negate your authority to operate it. This product has demonstrated CE compliance under conditions that include the use of shielded cables. -
Page 29: Fastctd And Fastctd Plus
: MANUAL-2034990662-4 | issue: 1.0 13.1 FastCTD and fastCTD plus © 2021 – Valeport Ltd Page | 27... -
Page 30: Fastctd With Blutooth Option
EU Declaration of Conformity - CE Marking 13.2 fastCTD with Blutooth Option © 2021 – Valeport Ltd Page | 28...
