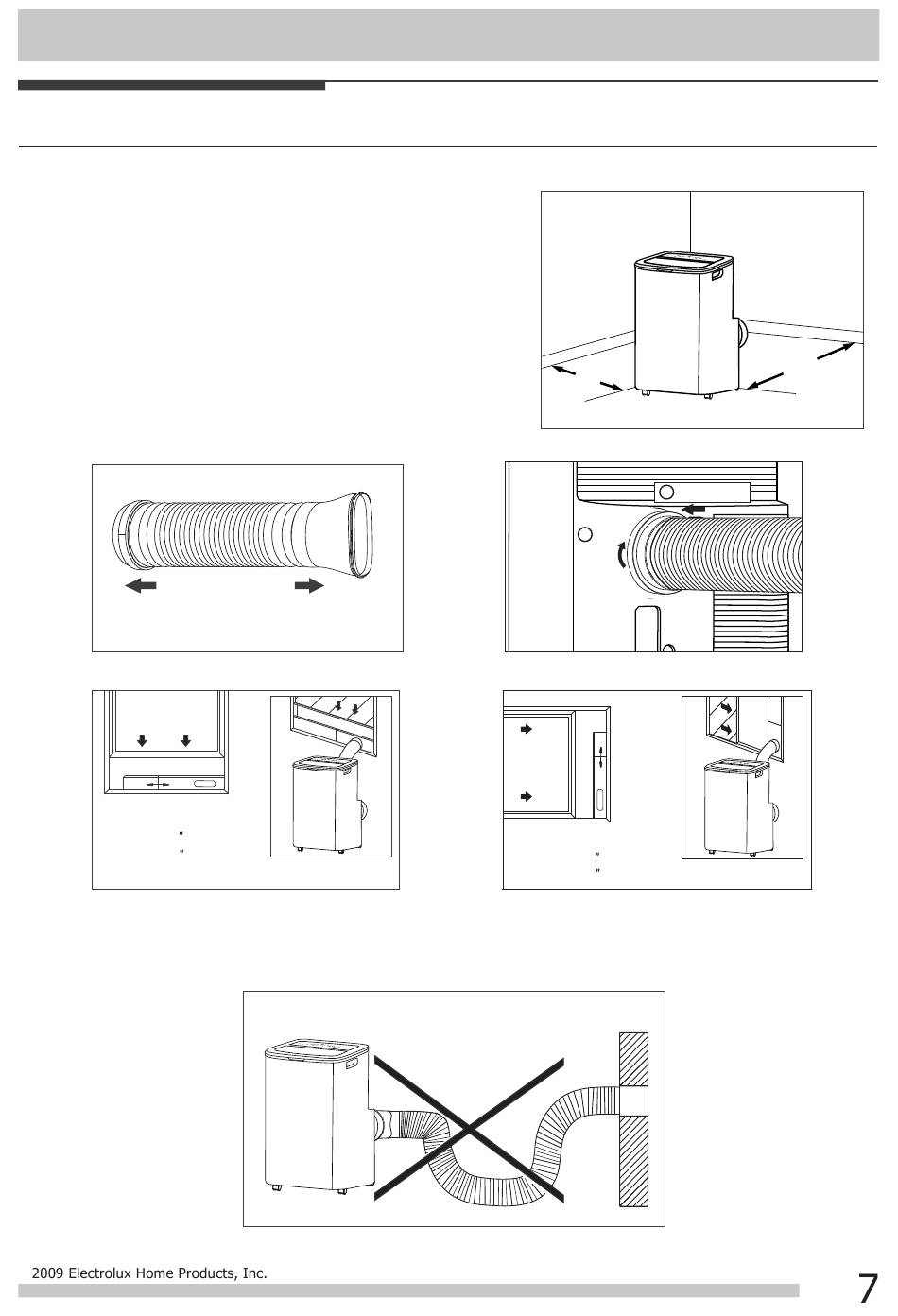

Installation Instructions

EXHAUSTING HOT AIR
In the Cool Mode the appliance must be placed close to a
window or opening so that the warm exhaust air can be ducted
outside.
First position unit on a flat floor and is within the vicinity of a single
circuit outlet power source. Make sure there's a minimum of 31.5"
clearance in the front/back of the unit, and a minimum of 19.7"
clearance in the left/right sides of the unit.
1. Extend both side of the exhaust hose(Fig.1)
2. Install the connector B into the unit (Fig.2).
3. Affix the connector A into the window slider kit and seal.(Fig.3&4)
Extend the side of hose
Vertical
window
Window Slider Kit
Minimum:26.6 (67.5cm)
Maxmum:52.5 (133cm)
The hose can be extended from its original length of 15"up to 59", but it is the best to keep the length to
minimum required. Also make sure that the hose does not have any sharp bends or sags.(Fig.5)
©
Installation Instructions
Fig.1
Horizontal
window
Window Slider Kit
Minimum:26.6 (67.5cm)
Maxmum:52.5 (133cm)
Fig.3
19.7"
1
Slide onto
2
Lock
Fig.2
Fig.5
All rights reserved.
31.5"
Fig.4
