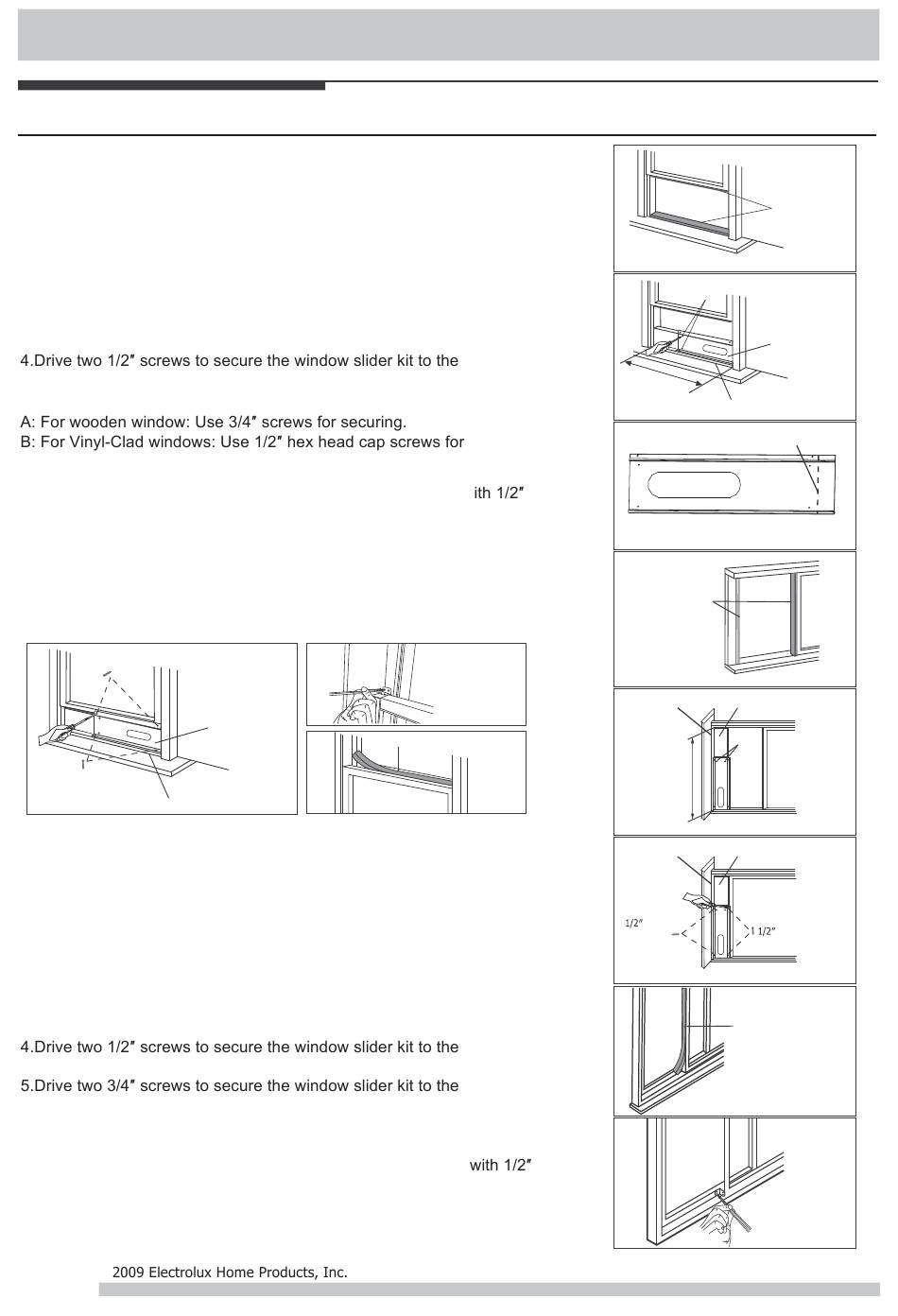

Installation Instructions
Installation Instructions(continued)
Installation in a double-hung sash window
1.Cut the foam seals A(adhesive type) to the proper lengths and attach
them to the window and stool.(Fig.6)
2.Open the window sash and place the window slider kit on the window
stool (Fig.7). Attach the window slider kit to the window stool. Adjust
the length of the window slider kit according to the width of window.
Screw down the two screws on the window slider kit. See Fig.7.
Cut the adjustable window slider kit if the width of window is less than
26.6 inches(Fig.8).
3.Close the window sash securely against the window slider kit.(Fig.9)
sash.(Fig.9)
5.Secure the window slider kit to the window stool(Fig.9):
securing.
6.To secure lower sash in place, attach right angle sash lock w
(12.7mm) screw as shown(Fig.10).
NOTE: It is difficult to lock the windows with the sash lock for Vinyl-Clad
windows, so you can use lock by window itself.
7.Cut the foam seal B to an appropriate length and seal the open gap
between the top window sash and outer window sash, as shown in
Fig.11.
1/2" screws
Window slider kit
3/4" screws or 1/2"
hex head cap screws
Window stool
Installation in a sliding sash window
1.Cut the foam seals A(adhesive type) to the proper lengths and attach
them to the window frame. See Fig.12.
2.Open the window sash and place the window slider kit on the window
stool (Fig.13). Attach the window slider kit to the window stool. Adjust
the length of the window slider kit according to the height of window.
Screw down the two screws on the window slider kit. See Fig.13.
Cut the adjustable window slider kit if the height of window is less than
26.6 inches(Fig.8).
3.Close the window sash securely against the window slider kit.(Fig.14)
sash.(Fig.14)
stool.(Fig.14)
6.Cut the foam seal B to an appropriate length and seal the open gap
between the sliding sash and outer window sash, as shown in Fig.15.
7.To secure sliding sash in place, attach right angle sash lock
(12.7mm) screw as shown(Fig.16).
8
©
Foam seal B
Fig.9
window
26.6"~52.5"
Foam seal A
(adhesive type)
Window stool
Fig.10
Fig.11
26.6"~52.5"
Window stool
window
window
Foam seal A
(adhesive type)
Fig.6
screws
Window slider kit
Fig.7
Window stool
Cut this to fit your window
Fig.8
Fig.12
Window slider kit
screws
Fig.13
Window slider kit
screws
screws
Fig.14
Foam seal B
Fig.15
Fig.16
