All about the
Important Safety Instructions..........................2-3
Product Registration..........................................4
Normal Sounds..................................................4
FCC Statement..................................................5
Unit Description..................................................6
Accessories Included.........................................6
Installation Instructions...................................7-8
Air Conditioner Features....................................9
Operating Instruction....................................9-15
Care and Cleaning...........................................16
Before You Call................................................17

Advertisement

loading

  Related Manuals for Frigidaire GALLERY GHPC132AB1

  Summary of Contents for Frigidaire GALLERY GHPC132AB1

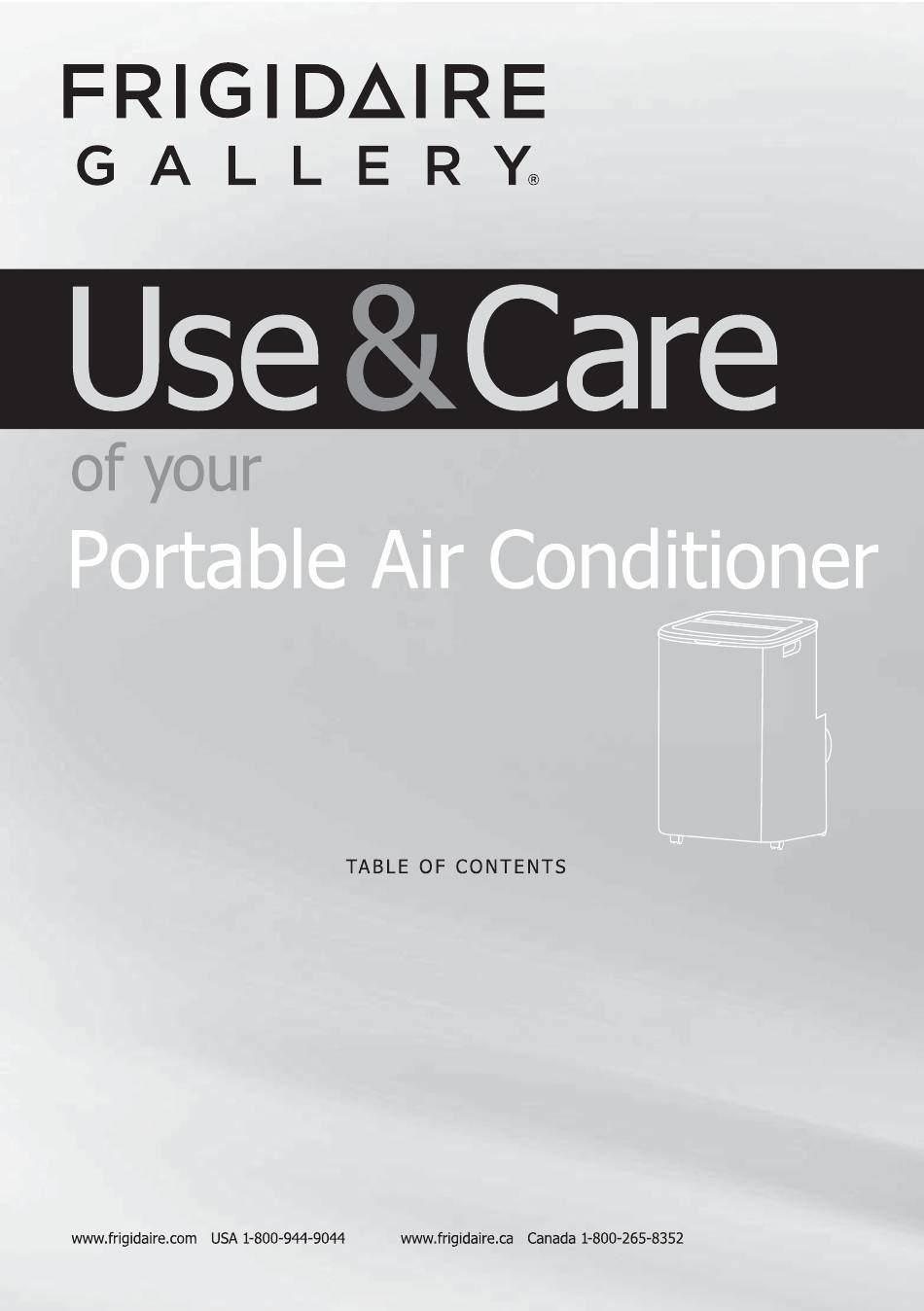

  • Page 1: Table Of Contents

    All about the Important Safety Instructions......2-3 Installation Instructions........7-8 Product Registration..........4 Air Conditioner Features........9 Normal Sounds..........4 Operating Instruction........9-15 FCC Statement..........5 Care and Cleaning...........16 Unit Description..........6 Before You Call..........17 Accessories Included.........6 Major Appliance Limited Warranty....18...
  • Page 2: Important Safety Instructions

    Important Safety Instructions NOTE: WARNING NOTE: WARNING WARNING WARNING SAFETY PRECAUTIONS...
  • Page 3 Important Safety Instructions SAFETY PRECAUTIONS Provide ventilation per installation instructions. Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups or make units run excessively. NOTE: fails manufacturer. manufacturer. CAUTION ot intended for use by persons (including children) with reduced physical ,sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4: Product Registration

    Model No. Serial No. Register Your Product The self-addressed PRODUCT REGISTRATION C ARD should be filled in completely, signed and returned to the Frigidaire Company. Normal Sounds Sound of Rushing Air At the top of the unit, you may hear the sound of rushing air being moved by the fan.
  • Page 5: Fcc Statement

    FCC Statement FCC Interference Statement instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not determined by tuning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
  • Page 6: Unit Description

    Unit Description & Accessories Included Unit Description Air Outlet Grill Control Panel Carrying Signal Handle Receiver Remote Exhaust Control Continuous Air Intake Drain Outlet Power Cord Bottom Drain Outlet Castor Accessories Included PARTS: PARTS NAME: QUANTITY: Window Kit Connector A Exhaust hose connector B Window Kit Exhaust Hose...
  • Page 7: Installation Instructions

    Installation Instructions Installation Instructions EXHAUSTING HOT AIR In the Cool Mode the appliance must be placed close to a window or opening so that the warm exhaust air can be ducted outside. First position unit on a flat floor and is within the vicinity of a single circuit outlet power source.
  • Page 8 Installation Instructions Installation Instructions(continued) Installation in a double-hung sash window 1.Cut the foam seals A(adhesive type) to the proper lengths and attach them to the window and stool.(Fig.6) Foam seal A 2.Open the window sash and place the window slider kit on the window (adhesive type) stool (Fig.7).
  • Page 9: Air Conditioner Features

    Air Conditioner Features & Operating Instructions Control Panel Display Temperature/Timer Adjust Mode Scheduler Swing Sleep Filter Power WIFI Temperature Speed Reset Selection on off indicator Button* or Timer *Note: Refer to the Quick Start Guide that came with your Smart Air Conditioner for detailed instructions on setting up your air conditioner for connected operation from your smart phone or tablet.
  • Page 10 Operating Instructions Dry mode “ ” or “ + ” Press the “mode” button until the Dry mode indicator lights. In this mode, the button is disabled and the screen displays the room temperature. The unit will continuously drain moisture from the room. Note: In this mode, the fan speed will be set as “low”...
  • Page 11 Operating Instructions Sleep mode When the unit is in Cool or Auto mode, you can press the “sleep” button to make the unit run in Sleep mode. In this mode, the fan speed will be set as “Auto” automatically, which cannot be changed. In Cool mode the selected temperature will increase by 2 °F 30 minutes after the mode is selected.
  • Page 12 The unit is equipped with a device called an ionizer. This device can only be activated and deactivated via the Frigidaire app, which can be downloaded onto your smart phone device. By activating this device, it will ionize air molecules.
  • Page 13 Operating Instructions Remote Control Fan Speed Display Fan Speed Button Temp Setting Button Temp Setting Display On/Off Button Sending Signal Battery Installation and Important Instructions Remove the cover at the back of the remote control. Insert the provided batteries correctly(see the instructions inside the battery compartment).
  • Page 14 If the display reads "E4" , the communication “AS”, the room temperature sensor between display PCB and main control PCB has failed. Contact your Authorize is faulty. Contact your Authorized Frigidaire Frigidaire Service Center. Service Center. If the screen on the unit displays If the screen on the unit displays “P1”, the water...
  • Page 15 Operating Instructions Drainage Instructions Continuous Drainage During the Dry mode, you will need a garden hose (sold separately) to drain the condensate from the unit. Follow the steps below: Unscrew the drain cap of continuous drain outlet(Fig.20). Connect one end of the garden hose (sold separately) to the drain outlet then lead the other end into a drain that is lower than the unit(Fig.21).
  • Page 16: Care And Cleaning

    NOTE: This unit has available space for use of additional filters. There are different types of additional filters, which are sold separately. You can purchase additional air filters by visiting Frigidaire.com or by calling the Frigidaire Customer Service Center 1-800-944-9044(US)/1-800-265-8352(Canada).
  • Page 17: Before You Call

    Air directional louvers positioned improperly. Position louvers for better air distribution. front of unit. floor and furniture. Air conditioner turns on and off rapidly. more frequently. Noise when unit is cooling. Room too cold. Room too hot. If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada) For Frigidaire Service. © All rights reserved.
  • Page 18: Major Appliance Limited Warranty

    Major Appliance Limited Warranty or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions. After one year from your original date of purchase, the consumer will be responsible for diagnostic, labor and parts costs as well as any removal, transportation and reinstallation expenses which are incurred during service on components.
